Product description

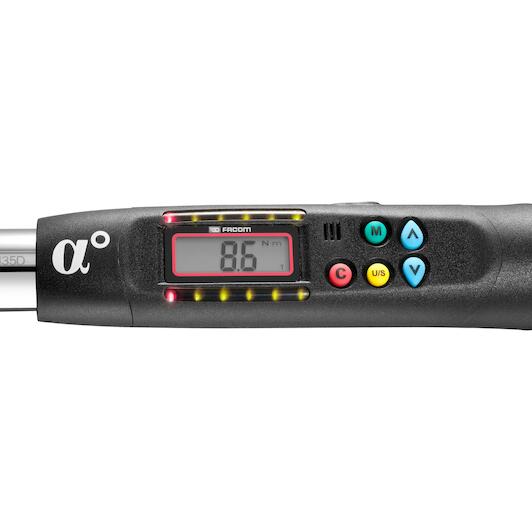

- E.316A - Electronic torque spanners torque/angle with ratchet
Features
- Precision:
- Torque: ± 2% between 20% and 100% of the spanner's capacity.
- Angle: ± 2°.
- Diversion: 9 x 12 and 14 x 18 mm.
- Measurement mode: peak or following.
- Lockable keypad (operator has access only to programme selection and storage of results).
- Measuring unit: N.m, lbf.ft, lbf.in, kg.cm and gr.
- Presetting possible of 9 torque and/or angle values.

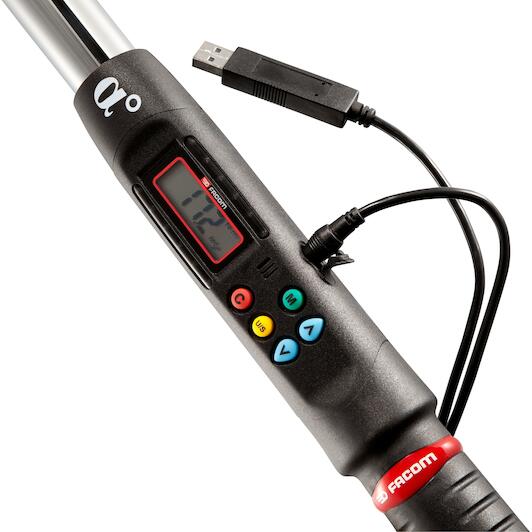

- Memory for 250 values with PC USB connection.
- Supplied with a control certificate.
- Supplied with ratchet in plastic case and foam inlay.
Key features according to our expert
-
Min. tightening torque: 6,7 Nm
-
Drive profile size: 3/8"
-
VDE approved: No
-
With safety colour code 1000V: Not applicable
-
ESD: No
-
Adjustable torque range: 6,7-135 Nm
-
Supplier warranty: FACOM - Legal warranty applicable
-
Max. tightening torque: 135 Nm
Specifications / All features
- Min. tightening torque
- 6,7 Nm
- Drive profile size
- 3/8"
- Vde approved
- No
- With safety colour code 1000v
- Not applicable
- Esd
- No
- Adjustable torque range
- 6,7-135 Nm
- Supplier warranty
- FACOM - Legal warranty applicable
- Max. tightening torque
- 135 Nm
- Screwdriver version
- No
- Connection size
- 9 x 12 mm
- Electronic
- Yes
- Accuracy according to iso 6789 (%)
- 2
- With scale
- No
- With extension
- No
- Overall length (mm)
- 415
- Weight (g)
- 1700
- Insulated 1000 v
- No
