FACOM U.89M230 spring tensioner, universal system with exchangeable spring plates

Name: FACOM U.89M230 spring tensioner, universal system with exchangeable spring plates
Brand: FACOM
SKU: 41280257
Price: 1797.2 EUR
Availability: PreOrder

Supplier number: FACOM U.89M230 | EAN 3148517329904

Recommended Retail Price €2,667.07

1,797.20 tax incl.

€1,485.29 excl. VAT (incl. all environmental contributions)

On order: delivered from 08/10/2026

Ordered before 20:00 - delivered as of 08/10/2026
Free shipping
Delivery by DHL
Lifetime warranty on Facom? Or limited in time? Read more about it here.
Delivered from Belgium

✆ Talk to a specialist

Safe universal spring compression

Practical benefits

Broad vehicle compatibility: Supplied with 3 sets of plastic-coated forks J1, J2, and J3, you adapt easily to diverse coil springs.
Fast impact drive operation: You can drive the two-stage telescopic body directly with a 1/2" impact wrench for quick compression.
Tested heavy-duty strength: Built with a body tested to 100,000 N, you maintain reliable control during demanding suspension tasks.

In a nutshell

The right choise for

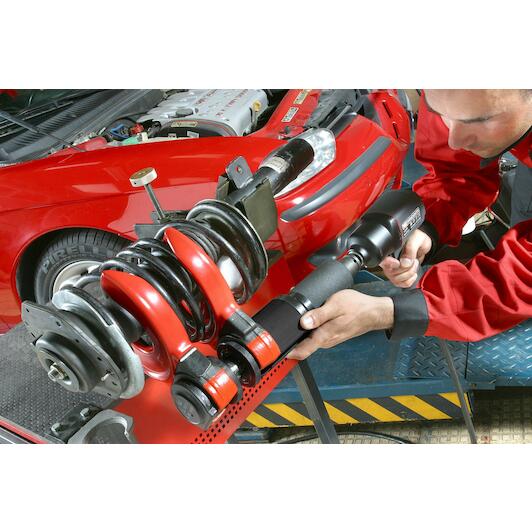

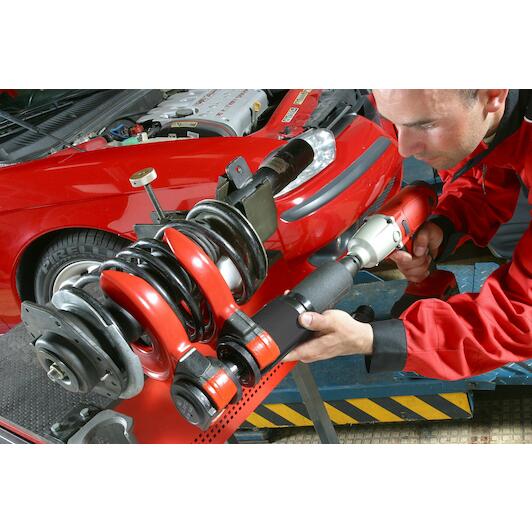

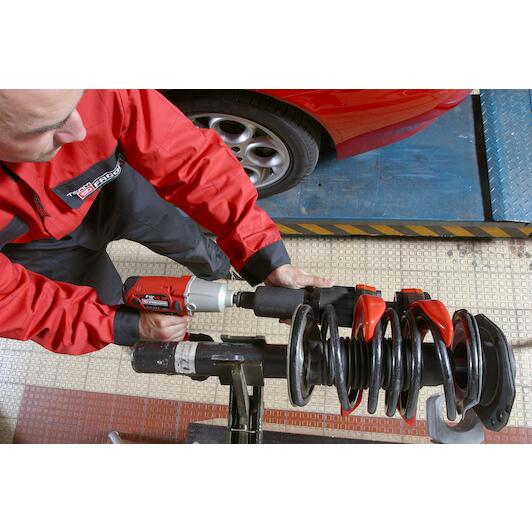

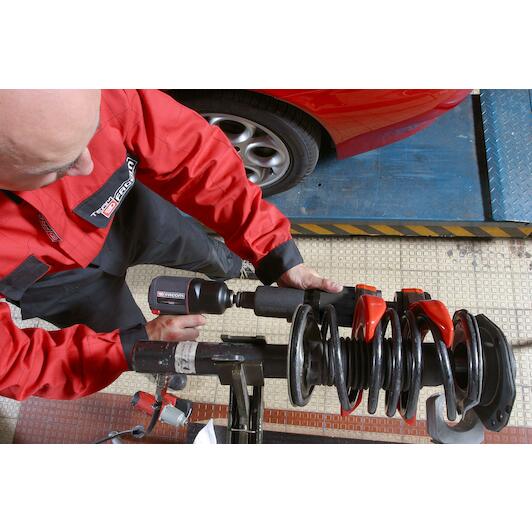

With the Facom U.89m230 spring compressor, you handle suspension maintenance and shock absorber replacements safely and with total control. Supplied with three pairs of plastic-coated forks (J1, J2, and J3), it adapts easily to various coil spring diameters while protecting the spring surface from damage. Its two-stage telescopic body delivers a 235 mm travel stroke and is tested to withstand forces up to 100,000 N, ensuring solid stability under high tension. You can operate the 22 mm hexagonal drive directly with a 1/2" impact wrench to speed up your workflow and complete demanding workshop jobs efficiently.

Product information FAQ

€1,797.20

tax incl.

Key features according to our expert

Supplier warranty: FACOM - Legal warranty applicable

Product description

Spring tensioner - Universal system with interchangeable spring plates

Features

Telescopic two-stage tensioner driven by screw thread (6-sided 22 mm).
Sliding intermediate piece allowing working on the spring plates in two positions.
Can be driven with impact spanner 1/2 inch.
Housing tested: 100,000 N.
Stroke: 235 mm.
Compressed length: 305 mm.
Length of fully opened tensioner: 540 mm.
Diameter: 70 mm.

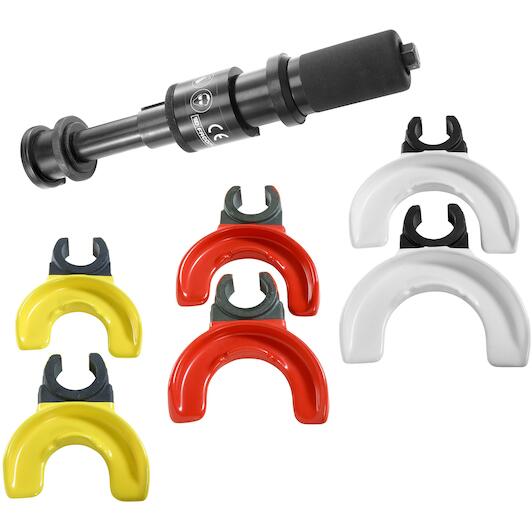

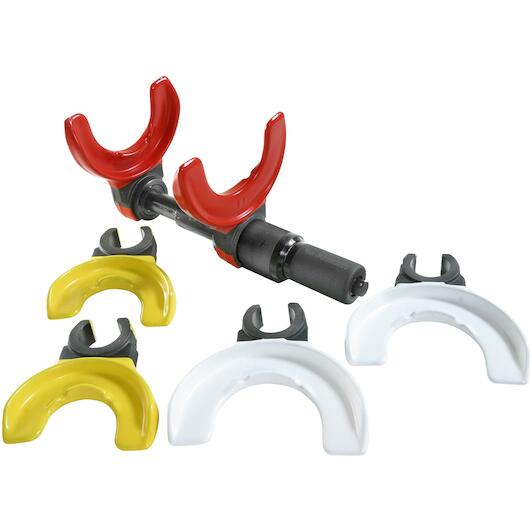

Supplied with 3 sets of spring plates J1 - J2 - J3 plasticised.
CE.

All Features

Supplier warranty: FACOM - Legal warranty applicable
Warranty: Legal warranty applicable

Brand FACOM
41280257
EAN 3148517329904
Supplier number FACOM U.89M230
Warranty Lifetime warranty on Facom? Or limited in time? Read more about it here.

Frequently asked questions about this product

Answered by specialists

How is this spring compressor driven?: It features a 22 mm hexagonal drive and can be operated with a 1/2" impact wrench.
Which spring forks are included in the set?: The tool comes supplied with 3 pairs of plastic-coated forks: J1, J2, and J3.
What are the travel stroke and overall dimensions?: The travel is 235 mm, with a compressed length of 305 mm and an extended length of 540 mm.
What is the tested load capacity of the body?: The telescopic body is tested to withstand forces up to 100,000 N.
