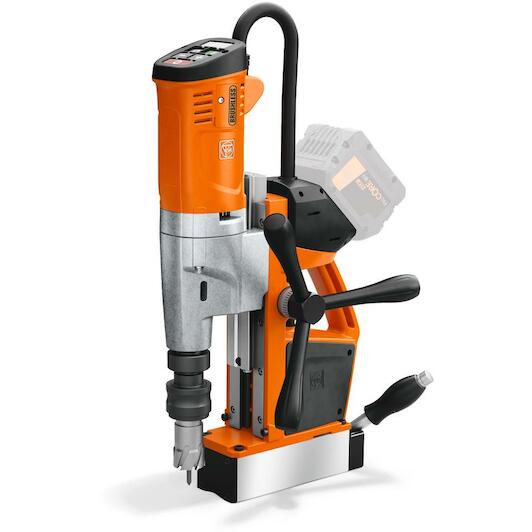

FEIN AKBU 35 PMQ AS 18V Universal cordless magnetic core drill up to 35 mm (without battery and charger) - 71700361000

Supplier number: FEIN 71700361000 | EAN 4014586898285
Recommended Retail Price €1,987.27
1,539.28 tax incl.
€1,272.13 excl. VAT (incl. all environmental contributions)
On order: delivered from 19/10/2026



€1,539.28
tax incl.

Product information

Key features according to our expert

  • Battery voltage: 18 V
  • Tool holder size: MK2
  • Tool holder type: Morse taper; QuickIn
  • Max. core drilling diameter: 35 mm
  • Clamping force magnetic base: 9000 N
  • Supplied in: Case
  • Weight: 12,2 kg
  • Battery platform: AMPShare
  • UN number: Not applicable
  • Number of batteries included: 0

Scope of delivery

  • 1 cordless core drill
  • 1 coolant pump
  • 1 lashing strap
  • 1 chip hook
  • 1 centring pin 100 mm
  • 1 contact guard
  • 1 driving wedge
  • 1 case

Product description

  • Universal magnetic core drill up to 35 mm
  • AKBU 35 PMQ AS
  • Small right/left-handed Universal magnet core drill with 1 speed, powerful stroke, MK2 tool chuck, permanent magnet and very high functionality for mobile work on the construction site.

Key features

  • Extremely wear-resistant machine concept with swivel bearing motor cable protection hose for heavy-duty use in industry and construction.
  • Small and lightweight machine for permanently high processing speed thanks to brushless FEIN PowerDrive motor with high speed stability and 18V-AMPShare ProCORE batteries.
  • Maximum flexibility in all mobile drilling tasks such as core drilling, spiral drilling, tapping, countersinking and reaming thanks to right/left-hand turning function, electronic speed adjustment and 260 mm stroke range. State-of-the-art cell technology and intelligent battery management ensure 87 %*** more power than with conventional batteries.
  • Intuitive operating concept with no danger of mix-up in sight of the user.
  • Convenient indication of magnetic force.
  • Tilt sensor stops the drill motor if the machine slips or tilts.
  • MK2 tool holder.
  • Extra narrow permanent magnet with pre-magnetisation.
  • Speed memory ,,Memory-Function".
  • Compatible with all 18V-AMPShare ProCORE batteries and chargers for even more power and flexibility. Also suitable for 18V cordless batteries from Bosch Professional.
  • ProCORE Li-ion battery with Highpower cells, charging indicator and "Electronic Cell Protection" (ECP). ECP protects the battery against overcharging, overheating and deep discharge.
  • COOLPACK 2.0 technology ensures 135% longer battery life and thus enables longer operating times.
  • Battery charge status can be read directly on the battery.
  • * Optional accessories.
  • ** Very high performance with AMPShare ProCORE 18 V 8.0 Ah/12.0 Ah
  • *** AMPShare ProCORE 18 V 8.0 Ah versus Bosch GBA 18 V 6.0 Ah

All Features

Battery voltage
18 V
Tool holder size
MK2
Tool holder type
Morse taper; QuickIn
Max. core drilling diameter
35 mm
Clamping force magnetic base
9000 N
Supplied in
Case
Weight
12,2 kg
Battery platform
AMPShare
Un number
Not applicable
Number of batteries included
0
Tapping
M 14
Core drilling depth max.
50(75)* mm
Hm core drill max. ø
35 mm
Changing core drills
without tools
Galvanisation max. ø
30 mm
Magnetic holding force
9 000 N
Up to stroke range
260 mm
Hss core drill max. ø
35 mm
Core drill chuck
QuickIN
Tool holder
MK 2
Spiral drill max. ø
18 mm
Dimensions magnetic base
195 x 70 mm
Battery interface
18 V AMPShare
Reaming max. ø
18 mm
Battery compatibility
Li-ion/ProCORE Li-ion**
Battle
135 mm
Engine
brushless
