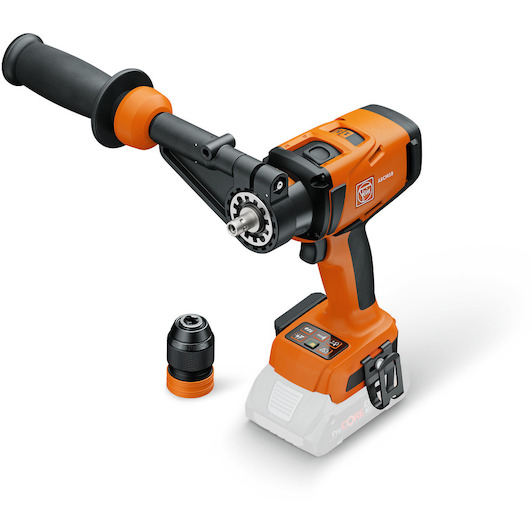

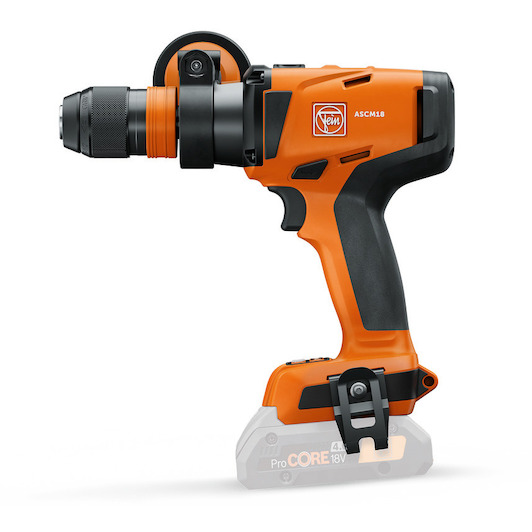

FEIN ASCM 18-4 QMP AS 4-speed cordless drill in L-Boxx 136 (without battery and charger) - 71161661000

Recommended Retail Price €459.04
354.48 tax incl.
€292.96 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

Scope of delivery

  • 1 QuickIN drill chuck (120 Nm)
  • 1 belt clip
  • 1 bit deposit
  • 1 telescopic handle
  • 1 plastic tool case (L-Boxx 136)

Product description

  • 4-speed cordless hammer drill
  • ASCM 18-4 QMP AS
  • 4-speed cordless screwdriver with brushless motor and QuickIN interface. Uncompromising performance for tapping up to M14 and drilling with HM hole saws up to 80 mm.

Key features

  • Solid metal gearbox with 4 gears. With speeds of up to 4000 rpm for optimum machining speeds in metal for any bore from 1.5 to 80 mm.
  • Maximum application possibilities with the FEIN QuickIN system for multi-purpose use in drilling, core drilling, tapping, countersinking and screwing.
  • Very safe working. Kickback monitoring (KickBack) stops the machine.
  • Changing QuickIN attachments between applications in metal and wood in no time and without tools with just one machine.

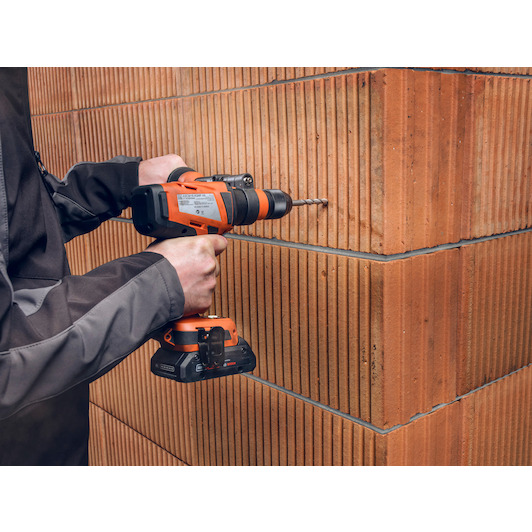

  • Switchable impact mechanism for drilling in stone and masonry up to 13 mm. More control thanks to extendable auxiliary handle.
  • The brushless, powerful FEIN PowerDrive motor with up to 30% higher efficiency enables a longer service life.
  • High torques of up to 130 Nm.
  • Solid metal QuickIN chuck (120 Nm) with carbide-coated chucks and high clamping forces.
  • Electronic torque setting (15+1).
  • Intuitive control panel with dimmable LED for perfect illumination of the workplace depending on the material.
  • Ergonomic and flexible handling thanks to side-mounted bit and belt holder.
  • Screws 10 x 400 mm screws without pre-drilling.
  • AMPShare interface enables 1400 screw connections (5 x 40 mm in wood) per battery charge (ProCORE 4 Ah).
  • Comprehensive user protection through restart protection, electronic overload protection and brake.
  • The innovative adjustment function enables screwing into wood at reduced speed for perfect results.
  • Compatible with Bosch Professional 18V batteries since 2008 and AMPShare batteries.
  • Maximum processing speed with AMPShare 18V ProCORE batteries: COOLPACK 2.0 technology ensures 135 % longer battery life. State-of-the-art cell technology and intelligent battery management provide 87 % more power than conventional batteries. "Electronic Cell Protection" ECP protects the battery against overload, overheating and deep discharge.
  • Optimally equipped for every use. Mobile working with the L-BOXX system.
Key features according to our expert
  • Battery voltage: 18 V
  • Number of torque settings: 15+1
  • Number of batteries included: 0
  • Battery platform: AMPShare
  • Weight: 1,4 kg
  • Type of system case: L-BOXX
  • Supplied in: System case
  • UN number: Not applicable
  • Max. tightening torque: 70 Nm
  • Max. drilling diameter (wood): 60 mm
  • Max. clamping capacity: 13 mm
  • Min. clamping capacity: 1,5 mm
  • Max. drilling diameter (steel): 13 mm
Specifications / All features
Battery voltage
18 V
Number of torque settings
15+1
Number of batteries included
0
Battery platform
AMPShare
Weight
1,4 kg
Type of system case
L-BOXX
Supplied in
System case
Un number
Not applicable
Max. tightening torque
70 Nm
Max. drilling diameter (wood)
60 mm
Max. clamping capacity
13 mm
Min. clamping capacity
1,5 mm
Max. drilling diameter (steel)
13 mm
Drive
4 gears
Drill ø steel core drill bit
30 mm
Tapping
M 14
Screws
10 x 400 mm
Drill ø steel spiral auger
13 mm
Max. torque (hard/soft)
130 (70 / 50) Nm
Accessory interface
QuickIN MAX
Drill chuck span
1.5 - 13 mm
Battery interface
18 V AMPShare
Drill-ø steel hole saws
80 mm
Drill ø stone
13 mm
Battery compatibility
Li-ion/ProCORE Li-ion
Torque positions
15 + 1
Drill ø wood
60 mm
Engine
brushless
