Scope of delivery

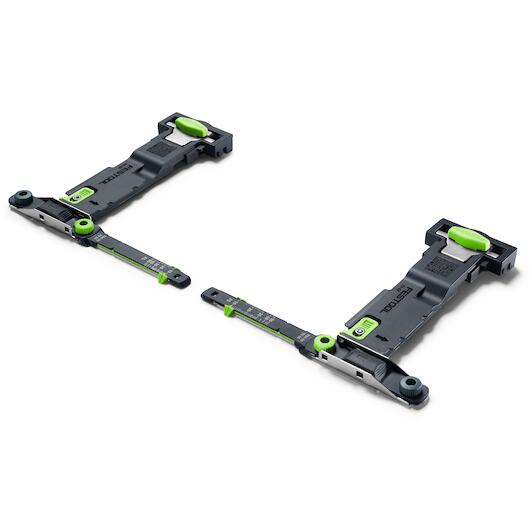

- Rear position indicator with support plate and marking indicator
- Front position indicator with support plate and marker indicator
Product description
Precise plunge-cuts for all cutting depths.

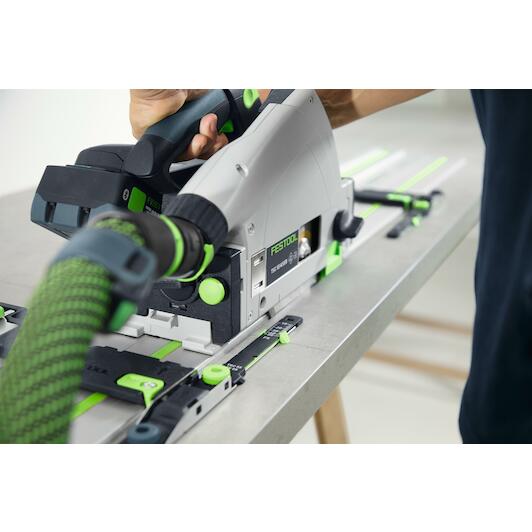

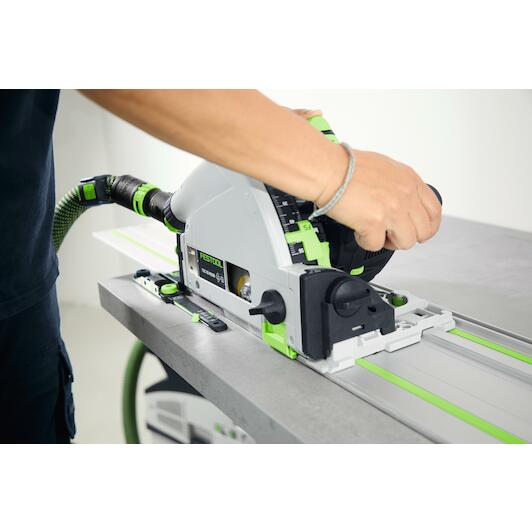

We know: Hitting the plunge position exactly is a challenge - especially with a reduced cutting depth when there is no orientation. Several plunge cuts or even dangerous backward sawing are often necessary. With the plunge-cut position indicator, you can reliably hit the exact entry and exit point of your saw blade at any cutting depth. Simply insert it into the groove of the guide rail from above and fix it in place. Then adjust the scale of the marking indicator to the depth setting of your plunge-cut saw, align it with the marking and place the cut-outs precisely where you need them. The marking indicator can also be magnetically attached to the right or left of the support plate. This allows you to reliably saw cut-outs close to walls, even if your view of the saw blade is limited or non-existent.
- Precise plunge-cutting: Entry and exit point of the saw blade is precisely displayed for the desired cutting depth.

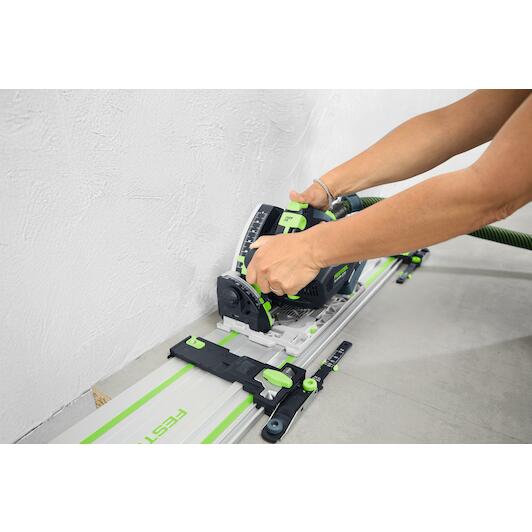

- Plunge cutting close to the wall: Sawing on the cutting mark to the left and right of the guide rail for cut-outs close to the wall.
- Stop stop: Position indicator can be used as an end and start stop for the machine.
- Easy to align: Position indicator can be aligned directly to the mark or marking.
Ideally suited for
- Precise, dimensionally accurate plunge cuts
- Position indicator shows the exact entry and exit position of the saw blade
- Cut-outs at positions close to the wall
- Plunge cuts with the same length
- Cutting width indicator for applications where the dimension is to the right of the guide rail - e.g. when cutting narrow panel strips or working with the FS on the cut-off side
- For TS 55 R, TS 55 F, TSC 55, TSC 55 K, TSC 55 KS
