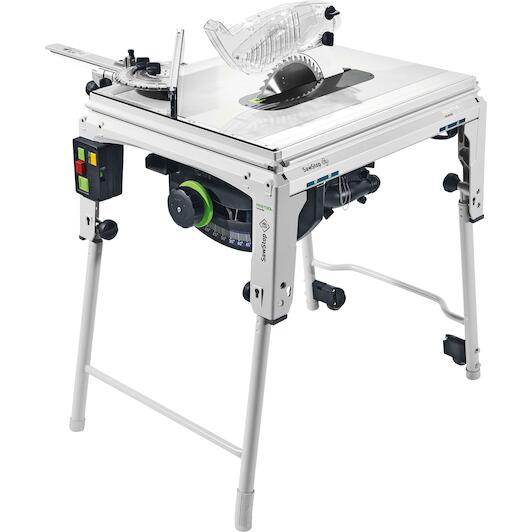

FESTOOL TKS 80 EBS table saw 254 mm 2200 W - 575781

FESTOOL
Supplier number: FESTOOL 575781 | EAN 4014549342824
2 review(s)
Recommended Retail Price €2,811.44
2,489.48 tax incl.
€2,057.42 excl. VAT (incl. all environmental contributions)
On stock - immediately available | we have 3 products in stock.

✆ Talk to a specialist

Consumables

Advanced safety in Festool woodworking

Practical benefits
  • Responsive SawStop safety technology: Smart sensors immediately stop the saw blade upon skin contact to protect you from severe cutting injuries during operation.
  • Impressive 80 mm cut depth: You achieve effortless and precise results across dense materials thanks to the powerful 2200 W motor and tilting blade.

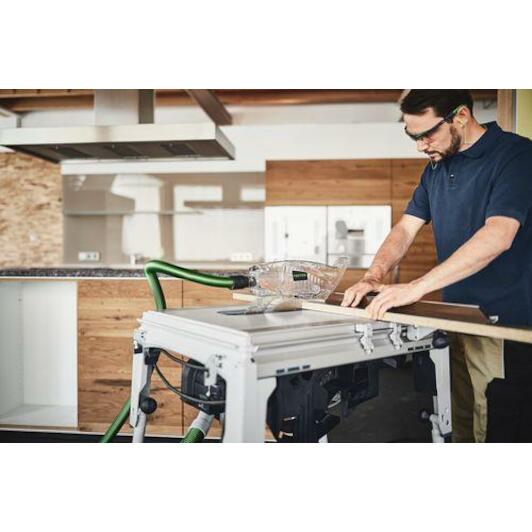

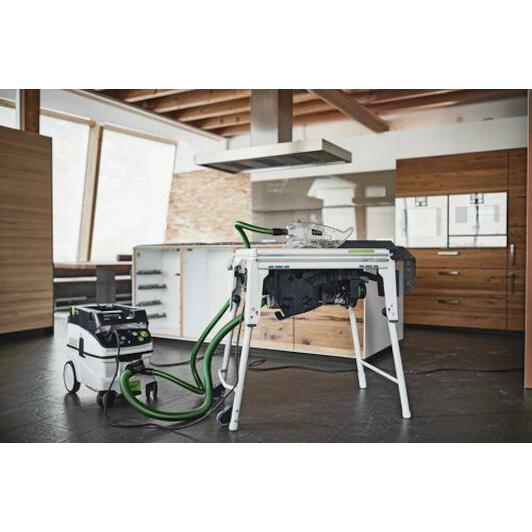

  • Dual extraction clean workspace: Integrated ports above and below the blade collect dust directly at the source, giving you an unobstructed cutting view.

In a nutshell

The right choise for

With the Festool tks 80 ebs table saw, you tackle demanding woodworking tasks with exceptional power and maximum peace of mind. The integrated SawStop technology immediately stops the 254 mm blade upon skin contact using the kt-tks 80 cartridge. Driven by a robust 2200 w motor with constant speed control and a smooth soft start, it delivers clean cuts up to 80 mm deep at 90° and 56 mm at 45°. Dual dust extraction above and below the blade keeps your cutting line clearly visible. Supplied with a wood universal hw W40 blade, angle stop, suction set, push stick, and keys, you have total control over every cut.



Product information Accessories FAQ Reviews
€2,489.48
In stock - tax incl.

Product information

Key features according to our expert

  • Power: 2200 W
  • Engine brake: Yes
  • Saw blade diameter: 254 mm
  • Adjustment (rip fence): Clamping lever on guide rail
  • Number of keys (blade change): 1
  • With spindle lock: Yes
  • Adjustable riving knife: Yes
  • Variable speed: Yes
  • Constant speed control: Yes
  • Weight: 38,4 kg
  • Inrush current limiter: Yes
  • Max. cutting depth at 45°: 56 mm
  • Slide function: No
  • Max. cutting depth at 90°: 80 mm
  • Max. cutting depth: 80 mm
  • Max. no-load speed: 3500 rpm
  • With stand: Yes
  • Voltage: 230 V
  • Dust extraction position: Under and above the saw blade

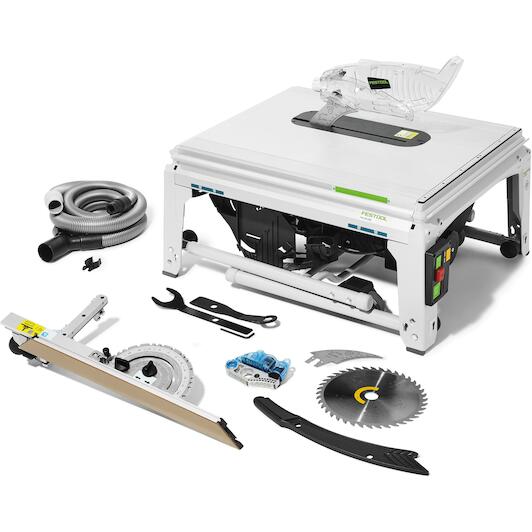

Scope of delivery

  • Circular saw blade WOOD UNIVERSAL HW 254 x 2
  • 4 x 30 W40
  • KT-TKS 80 cartridge
  • Angle stop
  • Dust extraction set
  • Workpiece holder
  • Hex key
  • WAF 5
  • 1 open ended spanner
  • Size 50
  • 1 open ended spanner
  • Size 23

Product description

Your fingers - invaluable!

Every year approximately 4,000 people are injured on circular saws, corresponding to 16 injuries per working day. Around 26% of serious accidents even result in an accident pension (German Social Accident Insurance (DGUV) statistics 'Accidents at work 2017). With the new TKS 80 table saw, the risk of most serious cutting injuries during sawing is reduced. While you concentrate on your work, we protect your most valuable tools - your fingers.

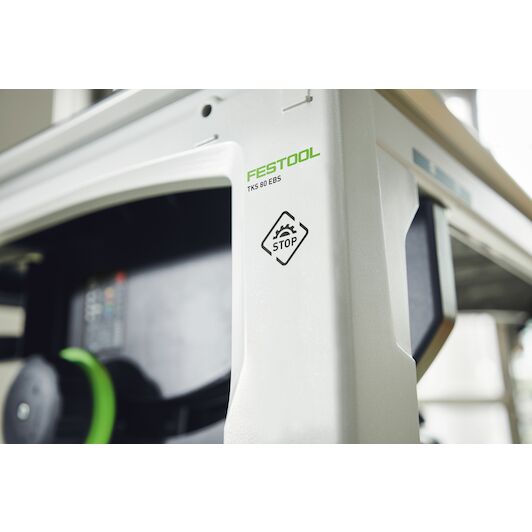

  • Improved safety: Less risk for your fingers - The responsive sensor on the integrated SawStop AIM technology provides increased safety when sawing in non conductive materials.SawStop AIM technology can also be deactivated if necessary
  • Flexible: 80mm cutting height, extendable work surface, stopper and angle stop enable flexible work, even with large workpieces
  • Splinter free cuts: Fewer splinters on the upper surface of the material in mitre rip cuts by swivelling the saw blade to the left

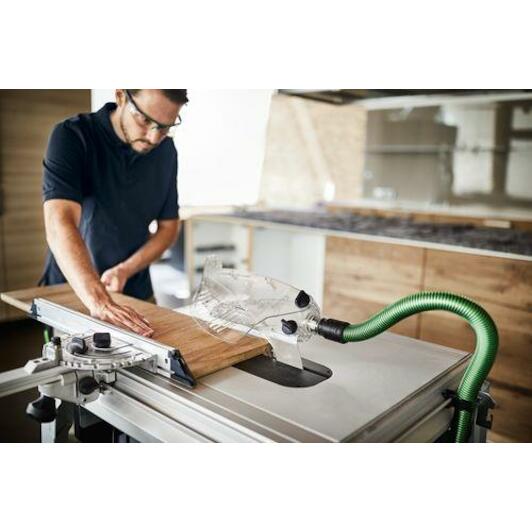

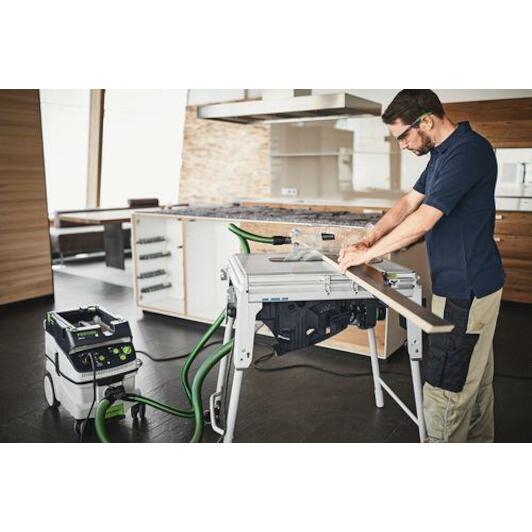

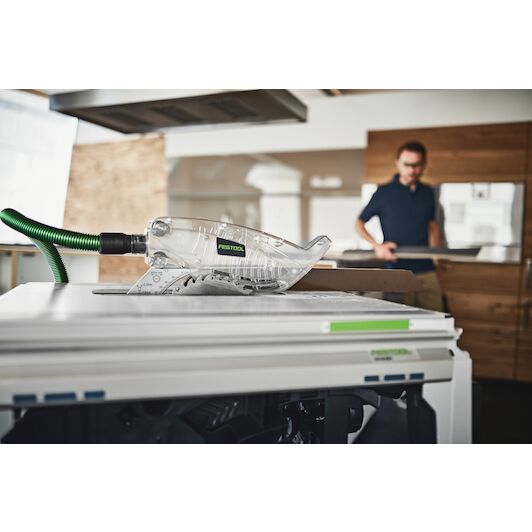

  • Protects your health: Dust extraction attachment with CLEANTEC extraction sleeve for dust free work and a free view of the workpiece
  • Space saving: Tool garage attached on the side provides optimal storage space for saw blades, cartridges and push sticks

Ideally suited for

  • Cross-cutting up to a width of 820 mm with sliding table, at a cutting depth of 20 mm

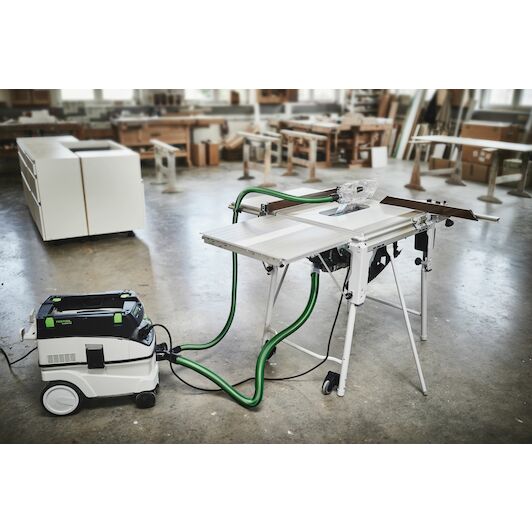

  • Rip cutting up to a cutting height of 80 mm and a width of 600 mm with an extension table
  • Tilting saw blade for angled cuts between -2° and 47°

All Features

Power
2200 W
Engine brake
Yes
Saw blade diameter
254 mm
Adjustment (rip fence)
Clamping lever on guide rail
Number of keys (blade change)
1
With spindle lock
Yes
Adjustable riving knife
Yes
Variable speed
Yes
Constant speed control
Yes
Weight
38,4 kg
Inrush current limiter
Yes
Max. cutting depth at 45°
56 mm
Slide function
No
Max. cutting depth at 90°
80 mm
Max. cutting depth
80 mm
Max. no-load speed
3500 rpm
With stand
Yes
Voltage
230 V
Dust extraction position
Under and above the saw blade
Drive type
Mains
Table dimensions
690 x 580 mm
Transport weight incl. accessories
42.5 kg
Inclination
-2 / 47 °
Cutting height 90°/45°
80/56.00 mm
Dust extraction connection diameter
27/36 mm
Table height, legs unfolded
900.00 mm
Table height, legs folded away
385.00 mm
Idle engine speed
1700 - 3500 RPM
Cable length
4.00 m
Power consumption
2200 watt
Diameter of the saw blade
254.00 mm
Product weight without accessories
38.40 kg

Accessories

Frequently asked questions about this product

Answered by specialists
What is the maximum cutting depth of this table saw?
At 90°, the maximum cutting depth is 80 mm. At 45°, it cuts up to 56 mm deep.
Which saw blades are compatible with the Festool TKS 80 EBS?
The saw requires blades with a 254 mm diameter and a 30 mm bore.
How does the integrated SawStop AIM technology work?
Upon contact with skin, the KT-TKS 80 cartridge triggers to stop and retract the blade within milliseconds.
Can the SawStop safety function be turned off?
Yes, you can temporarily deactivate the SawStop AIM technology to cut conductive materials like metal.
What items are included in the scope of delivery?
You receive an HW W40 saw blade, a KT-TKS 80 cartridge, an angle stop, a dust extraction set, a push stick, and keys.
