FISCHER 44110 nail anchor FNA II 6x30 M6 with metric thread electrolytically galvanised

Name: FISCHER 44110 nail anchor FNA II 6x30 M6 with metric thread electrolytically galvanised
Brand: FISCHER
SKU: 02019759
Price: 0.71 EUR
Availability: PreOrder

Supplier number: FISCHER 44110 | EAN 4006209441107

0.71 tax incl.

€0.59 excl. VAT (incl. all environmental contributions)

On order: delivered from 10/10/2026

The minimum purchase order quantity for the product is 100.

Ordered before 20:00 - delivered as of 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Fast and secure anchoring in concrete

Practical benefits

Fast hammerset drive installation: You set the anchor with just a few hammer blows, saving valuable time during large series installations.
Low drill hole depth: With a short anchoring depth of 30 mm, you avoid hitting internal concrete reinforcement during drilling.
Automatic expansion under load: The internal cone pulls into the expansion clip under load, giving you a reliable and firm hold.

In a nutshell

The right choise for

With the Fischer fna II 6X30 M6X41 nail anchor, you achieve fast and dependable fixings in concrete without needing torque-controlled tightening. You drive the zinc-plated steel anchor into a 6 mm drill hole with just a few hammer blows, making it ideal for high-volume serial installations of cable trays, ventilation ducts, and pipe clamps. The low anchoring depth of 30 mm significantly reduces the risk of hitting concrete reinforcement. Under applied load, the internal cone automatically pulls into the expansion clip, locking the M6 thread firmly in place. This ensures rapid, safe, and efficient overhead and push-through installations indoors.

Product information FAQ

€0.71

tax incl.

Key features according to our expert

Drilling diameter: 6 mm
Material (bolt): Steel
Surface treatment (bolt): Zinc plated
Thread designation: M6

Product description

The installation-friendly Hammerset anchor with thread (without nut) for multiple fixings.

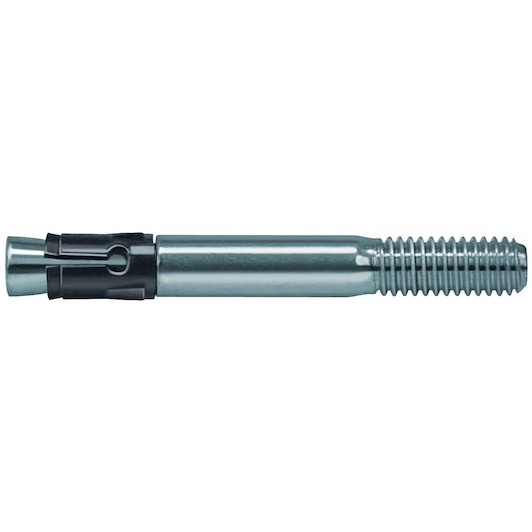

The fischer nail anchor FNA II 6 with thread (without nut) is made of zinc-plated steel. The FNA II is set in a time-saving manner in the pre-positioned installation with just a few taps of the hammer. The installed FNA II expands automatically under load. The cone is then pulled into the expansion clip and expands it against the hole wall. Above all, the fischer nail anchor FNA II with thread is suitable for fixing metal clamps for conduits and pipes in internal areas.

Hammerset installation saves time
No reinforcement hits due to low anchorage depth This saves time and costs during series installation
Expansion clip provides a firm hold
ETA approval for multiple fixings
Easy removal of fire protection board without damage
Reusability of fire protection board
Safe anchorage, particularly when exposed to vibration, wind, and pushing/pulling influences
Low anchoring depth (30 mm)
Convenient installation without torque-controlled setting tool
Approved system that has proven itself one million times over

Suitable for

The washer significantly increases the pulling forces and, at the same time, prevents the damage of the panel during removal
Removal by means of easy pinching off of nail head thanks to special 2-stage pliers
For fast installation, use the compressed air setting device (item no. 093731)

Building materials

Concrete C12/15 to C50/60, cracked and non-cracked
For multi-point fixings of non-load-bearing systems

Application

Fire protection plates
Fire protection boards
Ventilation systems
Wire and Nonius hangers
Mounting rails
Metal clamps
Substructures made of wood and metal

All Features

Drilling diameter: 6 mm
Material (bolt): Steel
Surface treatment (bolt): Zinc plated
Thread designation: M6
Anchor length: 41 mm
Min. borehole depth: 40 mm
Permissible load draw zone: 1.2 kN
Min. drill hole depth for through-hole mounting: 40 mm
Tightening torque: 4 N-m
Drill diameter: 6 mm
Wire: M6
Key width: 10 mm
Material: electrolytically galvanised steel
Thread size (metric): 6 mm

Brand FISCHER
02019759
EAN 4006209441107
Supplier number FISCHER 44110

Frequently asked questions about this product

Answered by specialists

What drill diameter is required for this nail anchor?: You need a 6 mm drill diameter for the Fischer FNA II 6x30 M6x41.
What thread size does this anchor have?: This nail anchor is equipped with an M6 metric thread.
How do you install the Fischer FNA II nail anchor?: Drive the anchor in with a hammer; it expands automatically once a load is applied.
What applications is this nail anchor suitable for?: It is designed for indoor fixings such as pipe clamps, cable routes, and metal brackets in concrete.
What material is this anchor made of?: It is made of zinc-plated steel intended for indoor applications.
