Product description
The installation-friendly Hammerset anchor with eye for multiple fixings.

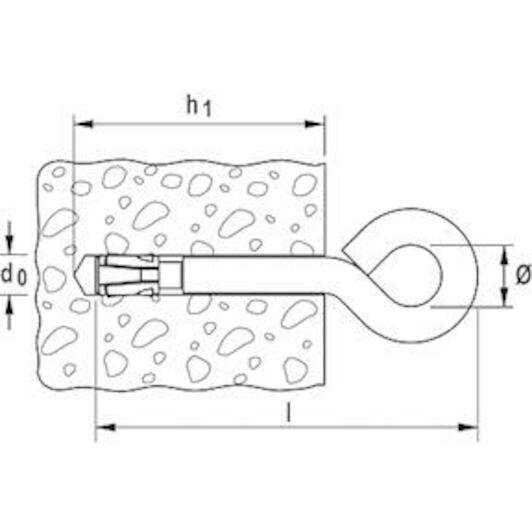

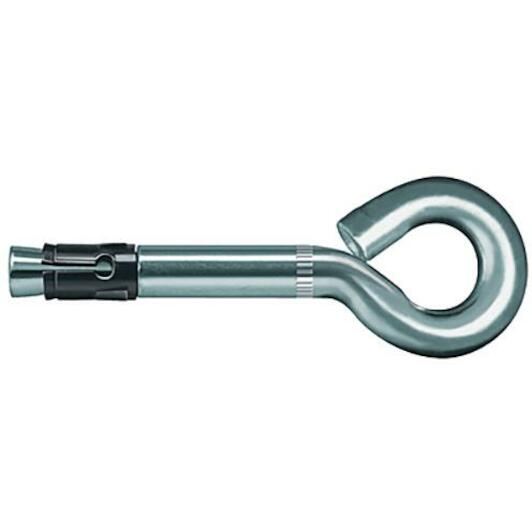

The fischer nail anchor FNA II 6 with eye is made of zinc-plated steel. The FNA II is set in a time-saving manner in the pre-positioned installation with just a few taps of the hammer. The installed FNA II expands automatically under load. The cone is then pulled into the expansion clip and expands it against the hole wall. Above all, the fischer nail anchor FNA II 6 with eye is suitable for fixing air lines and hangers in internal areas.
- Hammerset installation saves time
- No reinforcement hits due to low anchorage depth This saves time and costs during series installation
- Expansion clip provides a firm hold
- With eye
- The special active principle allows for a simple hammerset installation and, therefore, a short processing time
- The extremely short anchor depth prevents reinforcement hits, and creates the conditions for a trouble-free installation
- The optimised expansion clip ensures hold when placing in the drill hole, and prevents it falling out during overhead installations
- The massive shaft cross-section guarantees a high load-bearing capacity, thus offering an extremely high level of safety
- A range of head shapes allows for the fixing of wide-ranging fixtures, and for the ideal adaptation to suit the intended use
Suitable for

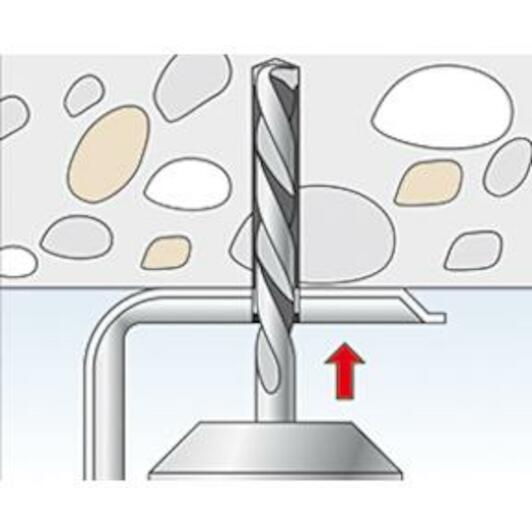

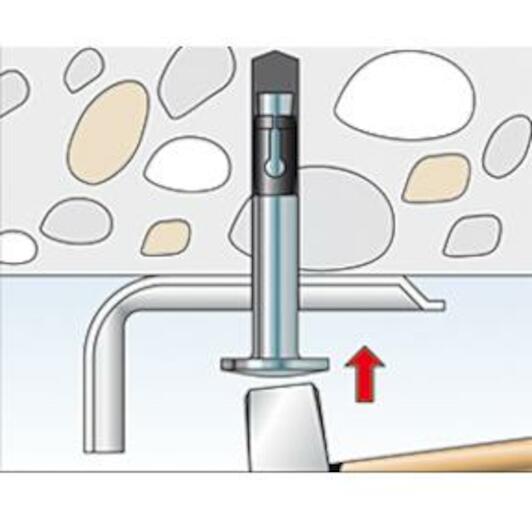

- The FNA II with nail head is suitable for push-through installation. The FNA II M6 is suitable for pre-positioned and push-through installation. The FNA II OE and H are suitable for pre-positioned installation

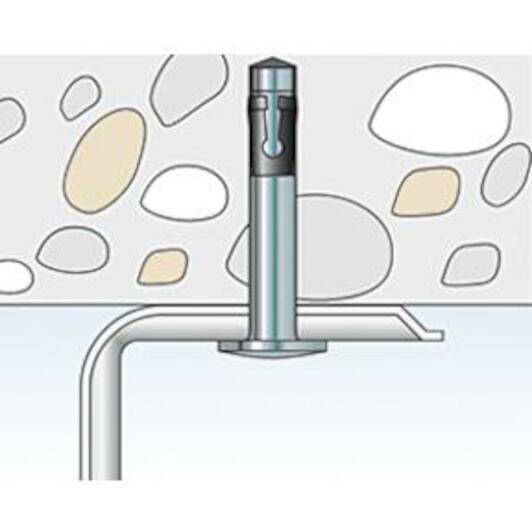

- The installed FNA II nail anchor expands automatically under load. The cone is pulled into the expansion clip and expands it against the drill hole wall
- Available setting tools:FNA S-SBO to slip onto the drill,FNA S-SDS for series installation with a drilling hammer,FNA S-H for the manual installation of mounting rails
Building materials
Approved for:
- Concrete C12/15 to C50/60, cracked, for multiple fixings of non-structural applications
Also suitable for:
- Solid sand-lime brick
- Natural stone with dense structure
- Prestressed hollow-core concrete slabs
Application

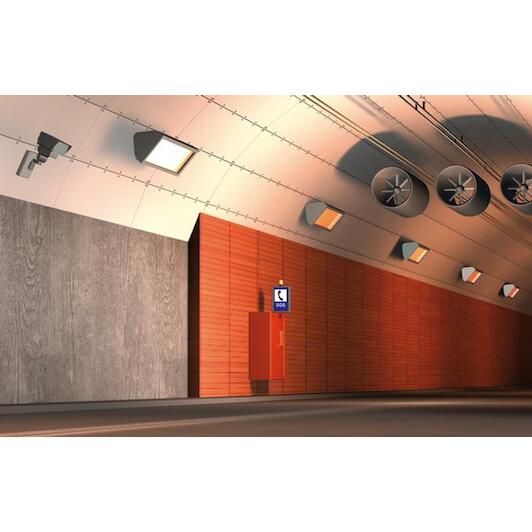

- Fire protection plates
- Fire protection boards
- Ventilation systems

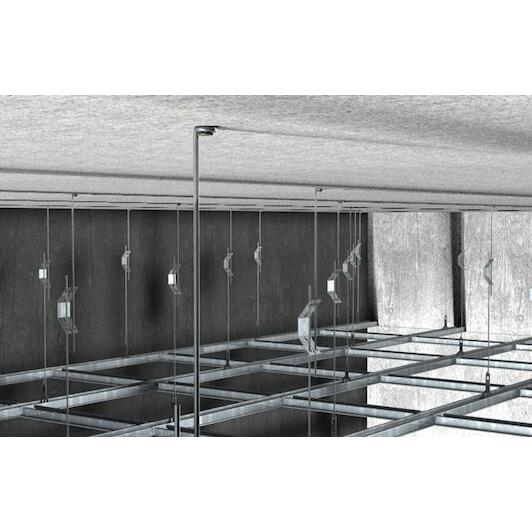

- Wire and Nonius hangers
- Mounting rails
- Metal clamps
- Substructures made of wood and metal
