Product description
The installation-friendly Hammerset anchor with thread and flange nut for multiple fixings.

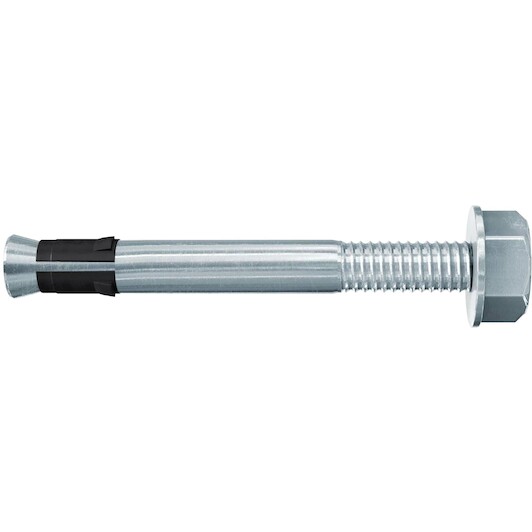

The fischer nail anchor FNA II 6 with thread and flange nut is made of zinc-plated steel. The FNA II is set in a time-saving manner in the push-through or pre-positioned installation with just a few taps of the hammer. The installed FNA II expands automatically under load. The cone is then pulled into the expansion clip and expands it against the hole wall. Above all, the fischer nail anchor FNA II with thread and flange nut is suitable for fixing metal clamps for conduits and pipes in internal areas.
- Hammerset installation saves time
- No reinforcement hits due to low anchorage depth This saves time and costs during series installation
- Expansion clip provides a firm hold
- ETA approval for multiple fixings
- Easy removal of fire protection board without damage
- Reusability of fire protection board
- Safe anchorage, particularly when exposed to vibration, wind, and pushing/pulling influences
- Low anchoring depth (30 mm)
- Convenient installation without torque-controlled setting tool
- Approved system that has proven itself one million times over
Suitable for
- The washer significantly increases the pulling forces and, at the same time, prevents the damage of the panel during removal
- Removal by means of easy pinching off of nail head thanks to special 2-stage pliers
- For fast installation, use the compressed air setting device (item no. 093731)
Building materials
- Concrete C12/15 to C50/60, cracked and non-cracked
- For multi-point fixings of non-load-bearing systems
Application

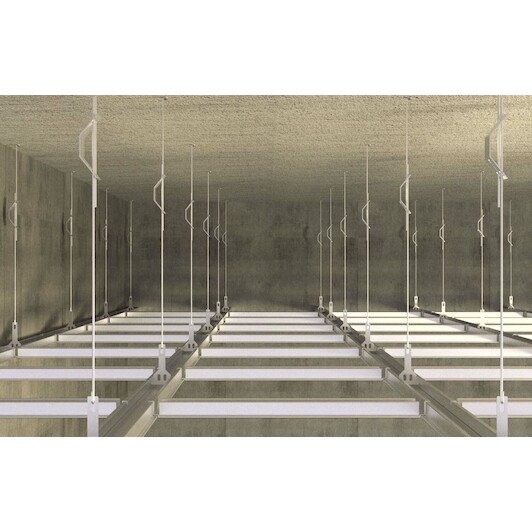

- Fire protection plates
- Fire protection boards

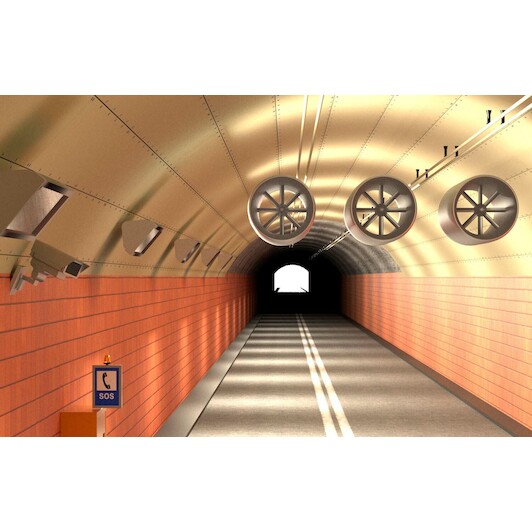

- Ventilation systems
- Wire and Nonius hangers
- Mounting rails
- Metal clamps
- Substructures made of wood and metal
