What drill bit diameter is required for this Fischer hammerfix plug?

You need to use a drill bit with a diameter of 6 mm.

What is the maximum fixture thickness you can fasten?

The maximum usable fixture thickness is 50 mm with a total plug length of 80 mm.

Can the nail screw be removed after hammer installation?

Yes, the PZ2 cross-recess drive allows you to easily unscrew it for dismantling or adjustment.

What installation method is this hammer plug designed for?

It is designed for fast push-through installation directly through the fixture.

When should you choose the countersunk head version?

The countersunk head is ideal for flush surface fixing of timber constructions, battens, and profiles.

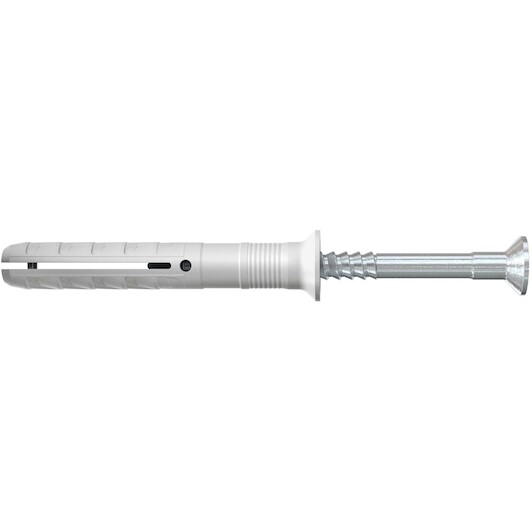

FISCHER 50353 nail plug N 6 x 80/50 S with countersunk head

Name: FISCHER 50353 nail plug N 6 x 80/50 S with countersunk head
Brand: FISCHER
SKU: 02062339
Price: 0.14 EUR
Availability: PreOrder

Supplier number: FISCHER 50353 | EAN 4006209503539

0.14 tax incl.

€0.12 excl. VAT (incl. all environmental contributions)

On order: delivered from 06/10/2026

The minimum purchase order quantity for the product is 50.

Ordered before 20:00 - delivered as of 06/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Fast push-through fixing for timber frames

Practical benefits

Rapid hammer-in installation process: You drive the pre-assembled nail screw in quickly with a hammer, saving valuable time during extensive series installations.
Integrated premature expansion stop: The internal hammer-in stop prevents the plug from expanding early, ensuring you achieve smooth and trouble-free insertion.
Effortless removal when needed: Thanks to the PZ2 cross-slot drive, you can easily unscrew the nail screw to adjust or dismantle fixtures.

In a nutshell

The right choise for

With the Fischer hammerfix plug n 6 x 80/50 s ZN, you complete serial fastening tasks quickly and efficiently. This pre-assembled polyamide hammer-in plug is designed for time-saving push-through installation, allowing you to secure timber battens, skirting boards, and frames directly through the fixture. Its countersunk head provides a clean, flush finish without splitting or damaging the wood. The integrated hammer-in stop prevents premature expansion, ensuring smooth insertion every time you drive the nail screw in with a hammer. If you need to readjust or dismantle parts later, the PZ2 cross-slot drive allows you to unscrew it easily. With a 6 mm drill hole diameter and 50 mm usable fixture thickness, you achieve strong, reliable fixings.

Product information FAQ

€0.14

tax incl.

Key features according to our expert

Diameter (wall plug): - mm
With screw: Yes
Drilling diameter: 6 mm
Application: General
With collar: Yes
type (screw head): PZ2
Wall plug type: Hammer-in plug
Material (wall plug): Polyamide (Nylon®)
Drill hole depth: - mm
Length (Wall plug): 80 mm

Product description

The hammer-in plug for simple, fast and economic installation.

The fischer Hammerfix N-S with countersunk head consists of a high-quality nylon plug and a zinc-plated nail screw. These are already pre-fitted for quick assembly. The Hammerfix is led through the component in the time-saving through-type installation. When driving in the nail screw, the fixing sleeve expands and anchors itself securely in the building material. The fischer Hammerfix N-S with countersunk head is ideal for fixing timber constructions in all building materials in internal areas.

Fast Hammerset installation saves time: ideal for series installation
Simple and secure installation: Integrated hammer-in stop prevents premature anchor spreading
Subsequent dismantling of the nail screw with a cross-slot recess is possible
With countersunk head
The rapid hammerset installation reduces the amount of time required and allows for an economic series installation
The integrated hammer-in stop prevents the plug from expanding prematurely (jamming), thus enabling a problem-free installation
Together with the cross-slot recess, the thread of the nail screw allows the screw to be removed, thus allowing for subsequent dismantling
The wide range of diameters and usage lengths provides the correct plug for every fixing

Suitable for

Suitable for push-through installation

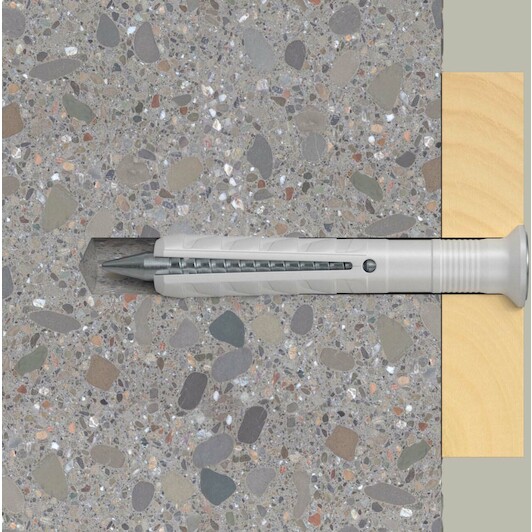

When hammered in, the nail screw causes the plug to expand in two directions, thus providing a secure anchoring in the building material
Countersunk head plugs are recommended for the installation of timber constructions; in the case of metal constructions, use flat-head plugs, and use pan-head plugs for long holes

Building materials

Concrete
Solid sand-lime brick
Building brick
Natural stone
Solid brick made from lightweight concrete
Aerated concrete
Solid panel made from gypsum

Application

Substructures made of wood
Wall connection or plaster profiles
Cable and pipe clips
Perforated tapes

All Features

Diameter (wall plug): - mm
With screw: Yes
Drilling diameter: 6 mm
Application: General
With collar: Yes
Type (screw head): PZ2
Wall plug type: Hammer-in plug
Material (wall plug): Polyamide (Nylon®)
Drill hole depth: - mm
Length (wall plug): 80 mm
Pierce fitting: Yes
Max. attachment thickness: 50 mm
Remote mounting: No
Min. borehole depth: 95 mm
Plug length: 80 mm
Effective anchoring depth: 30 mm
Front mounting: No
Min. anchoring depth: 30 mm
Min. drill hole depth for through-hole mounting: 95 mm
Colour: grey
Drill diameter: 6 mm
Material: electrolytically galvanised steel
Implementation: with screw
Recording: PZ2
Fischer nail screw: 4 x 88 mm

Brand FISCHER
02062339
EAN 4006209503539
Supplier number FISCHER 50353

Frequently asked questions about this product

Answered by specialists

What drill bit diameter is required for this Fischer hammerfix plug?: You need to use a drill bit with a diameter of 6 mm.
What is the maximum fixture thickness you can fasten?: The maximum usable fixture thickness is 50 mm with a total plug length of 80 mm.
Can the nail screw be removed after hammer installation?: Yes, the PZ2 cross-recess drive allows you to easily unscrew it for dismantling or adjustment.
What installation method is this hammer plug designed for?: It is designed for fast push-through installation directly through the fixture.
When should you choose the countersunk head version?: The countersunk head is ideal for flush surface fixing of timber constructions, battens, and profiles.
