Fast and secure push-through fixing
- Fischer plug saves time: The pre-assembled nylon plug and nail screw allow you to complete rapid series installations efficiently.
- Integrated hammer-in stop: A built-in stop prevents the plug from expanding prematurely while driving it through the component.
- Simple dismantling when needed: You can easily back the nail screw out using a standard PZ2 drive for subsequent adjustments.
With the Fischer n 6 x 60/30 s hammerfix plug, you quickly and securely attach timber framing, baseboards, and wall profiles to solid materials such as concrete and solid brick. Because the nylon plug and zinc-plated nail screw come pre-assembled, you save valuable time during series push-through installations. Simply drive the fixing in with a hammer, while the integrated hammer-in stop prevents the sleeve from expanding prematurely in the 6 mm drill hole. The countersunk head ensures a neat, flush finish on fixtures up to 30 mm thick. If you need to make adjustments or dismantle the structure later, the PZ2 drive lets you back the nail screw out with ease.
Product description
The hammer-in plug for simple, fast and economic installation.

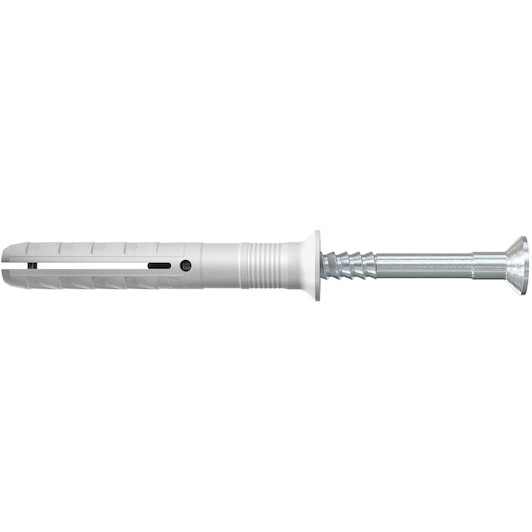

The fischer Hammerfix N-S with countersunk head consists of a high-quality nylon plug and a zinc-plated nail screw. These are already pre-fitted for quick assembly. The Hammerfix is led through the component in the time-saving through-type installation. When driving in the nail screw, the fixing sleeve expands and anchors itself securely in the building material. The fischer Hammerfix N-S with countersunk head is ideal for fixing timber constructions in all building materials in internal areas.
- Fast Hammerset installation saves time: ideal for series installation
- Simple and secure installation: Integrated hammer-in stop prevents premature anchor spreading
- Subsequent dismantling of the nail screw with a cross-slot recess is possible
- With countersunk head
- The rapid hammerset installation reduces the amount of time required and allows for an economic series installation
- The integrated hammer-in stop prevents the plug from expanding prematurely (jamming), thus enabling a problem-free installation
- Together with the cross-slot recess, the thread of the nail screw allows the screw to be removed, thus allowing for subsequent dismantling
- The wide range of diameters and usage lengths provides the correct plug for every fixing
Suitable for
- Suitable for push-through installation

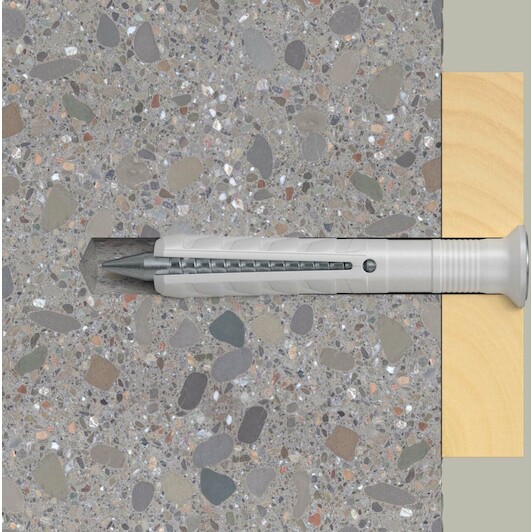

- When hammered in, the nail screw causes the plug to expand in two directions, thus providing a secure anchoring in the building material
- Countersunk head plugs are recommended for the installation of timber constructions; in the case of metal constructions, use flat-head plugs, and use pan-head plugs for long holes
Building materials
- Concrete
- Solid sand-lime brick
- Building brick
- Natural stone
- Solid brick made from lightweight concrete
- Aerated concrete
- Solid panel made from gypsum
Application
- Substructures made of wood
- Wall connection or plaster profiles
- Cable and pipe clips
- Perforated tapes
