Product description
The concrete all-rounder with two anchoring depths for high performance.

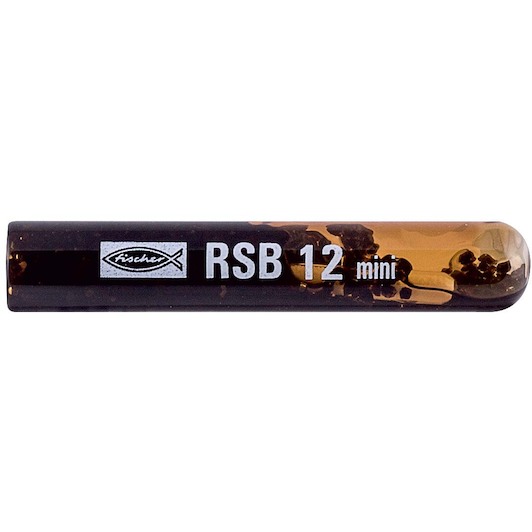

The fischer resin capsule RSB mini contains a hybrid mortar based on styrene-free vinyl ester. The resin capsule is a system component of the fischer Superbond system for fixing in cracked and non-cracked concrete. The components are fixed with the fischer rod anchor RG M made of zinc-plated steel, made of stainless steel, and made of highly corrosion-resistant steel. The fischer anchor rod is set with the composite anchor setting tool through rotating and hitting motions using a hammer drill. The capsule is destroyed during the setting process, which mixes and activates the mortar compound. With the fischer Superbond resin capsule objects such as heavy-duty steel constructions, soundproof walls, and high racks can be fixed.
- Higher load level due to use of two mortar cartridges. This saves on fixing points
- Cost-effective processing due to pre-portioning
- Processing possible up to -30 ° C
- Ideal for overhead installation
- Ideal for water-filled drill holes
- The pre-portioned resin capsule RSB is especially cost-effective for individual applications and overhead installations
- The ideal solution for difficult conditions and installations with no waiting time due to fast hardening: Approval-compliant processing down to -30°C, also approved for water-filled and diamond-drilled holes as well as for seismic applications in performance category C1 (only in conjunction with RG M)
- For each diameter, up to three anchorage depths can be realised with the threaded rod RG M through a combination of the resin capsules RSB mini
- The use of the internal threaded anchor RG M I enables the surface-flush removal of the fixture and the reuse of the fixing point
- The angular threaded rod RG M can be set for light dynamic loads with the resin capsule system RSB in sizes M12, M16, M20 and M24 in stainless steel R with the fischer filling set
Suitable for
- The 2-component resin capsules RSB and RSB mini contain vinyl ester hybrid mortar with silane technology. They are suitable for pre-positioned installation
- During setting, the oblique edge of the anchoring element destroys the capsule, and mixes and activates the mortar
- The glass particles of the capsule body roughen the inside of the drill hole, which reduces the cleaning effort to just four blowing passes
- The mortar bonds the entire surface of the anchor rod with the drill hole wall and seals the drill hole
Building materials
Approved for anchorings in:
- Concrete C20/25 to C50/60, cracked and non-cracked
Also suitable for:
- Natural stone with dense structure
Application
- Heavy steel constructions
- Silo installations
- Tall shelving
- Sound barriers
- Guard rails
- Staircases
