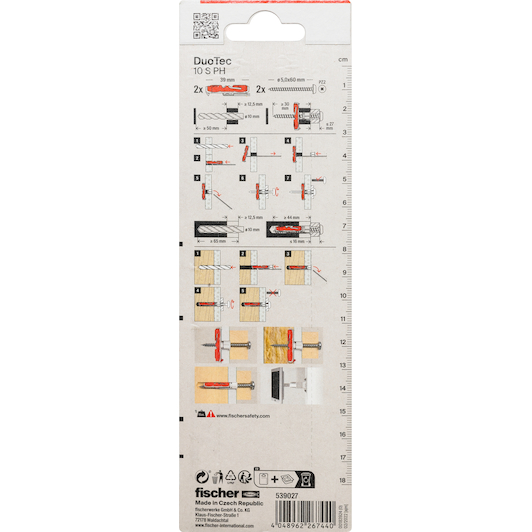

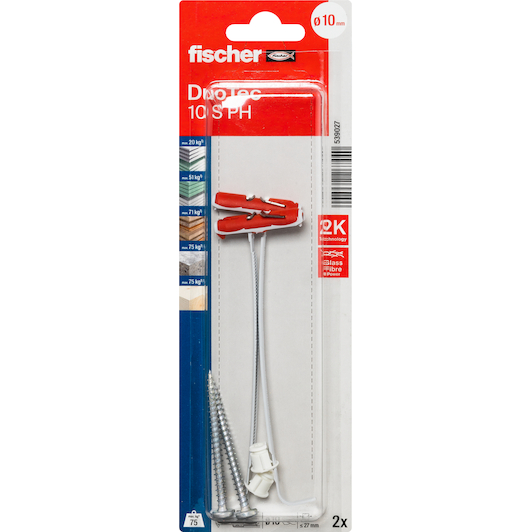

Scope of delivery

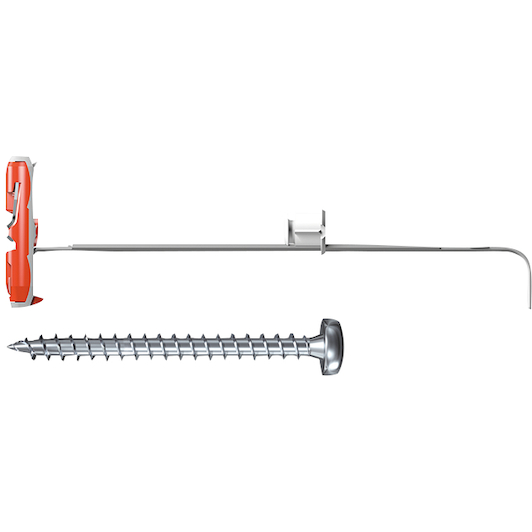

- 2x DuoTec 10
- 2x screw with cylinder head 5.0x 60
Product description
The assembly-friendly solution for heavy loads in sheet metal.
- A combination of two material components for more power.
- The flange sleeve reinforces the drill hole and enables significantly higher transverse forces.
- The curved handle enables obstacle detection before starting assembly.

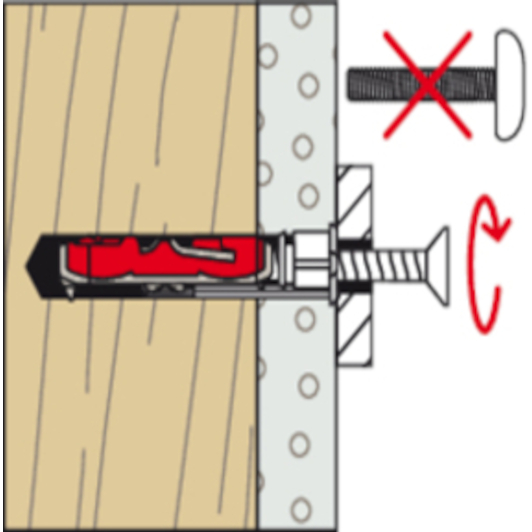

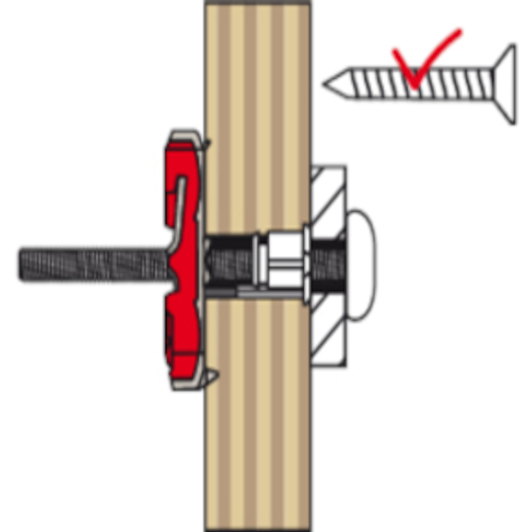

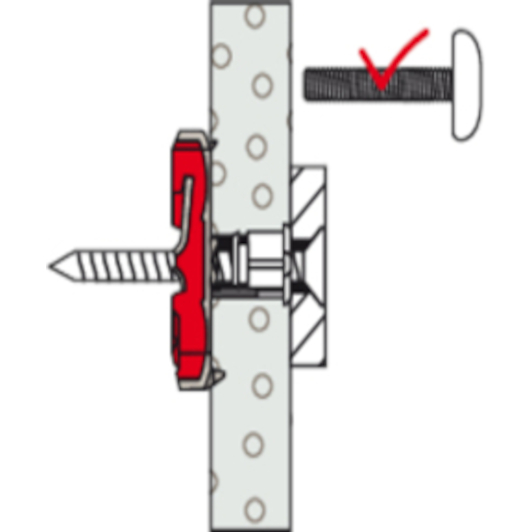

- The flexible screw fastening allows the use of screws and hooks with different thread shapes.
- The fibreglass-reinforced plastic and metal insert ensure the absorption of high tensile and transverse forces in all types of sheet material.
- The soft, grey nylon contact side distributes the load over the entire sheet surface, minimising any weakening of the supporting building material.

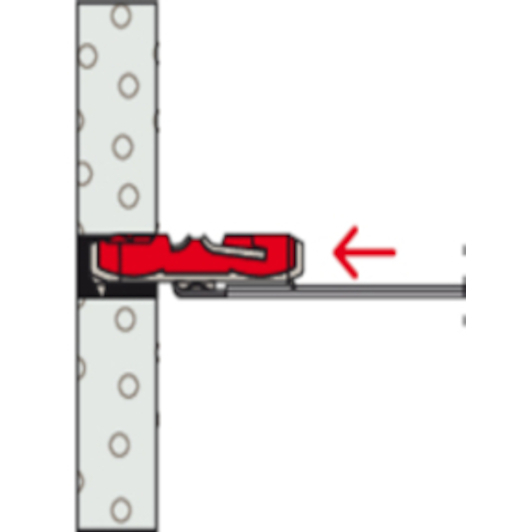

- Common borehole diameters and a short rocker element ensure easy installation even in small or insulated hollow spaces.

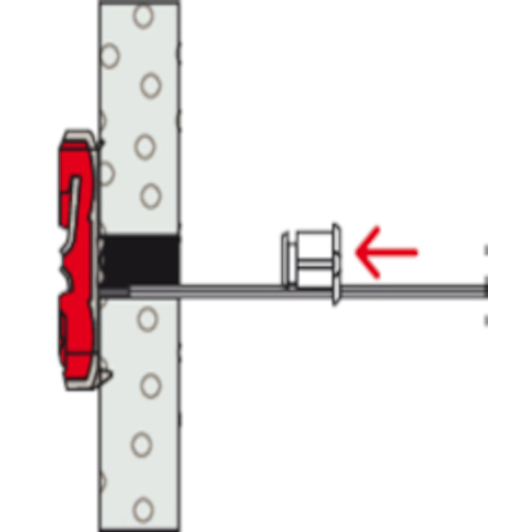

- The white flange sleeve with locking function ensures fast and secure mounting of the plug in the drilled hole.

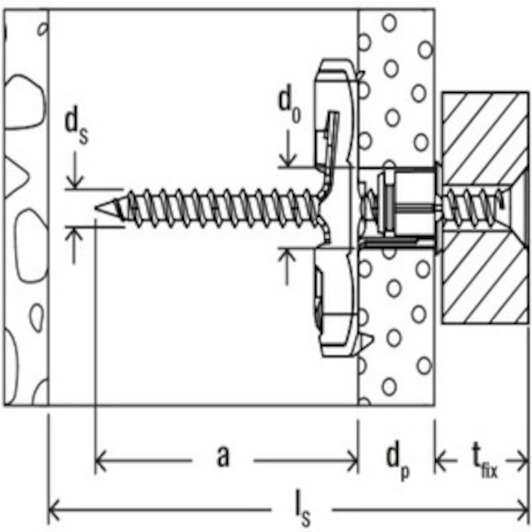

- With scale on the band for determining the required screw length (scale value + 20 mm).

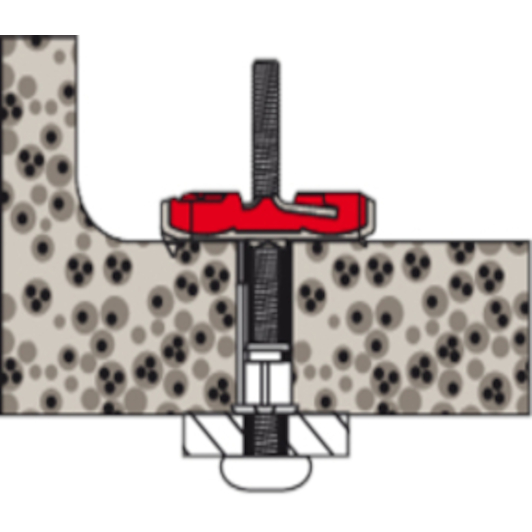

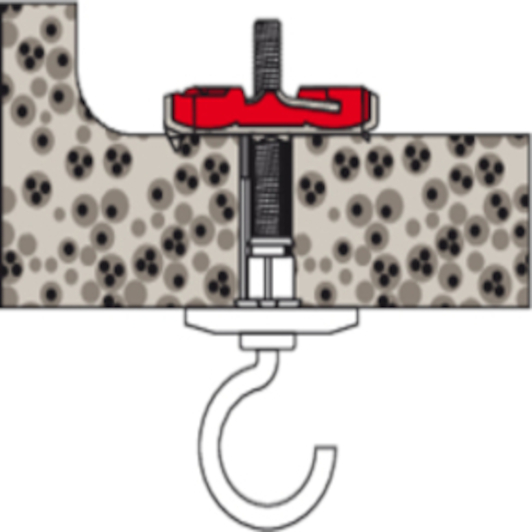

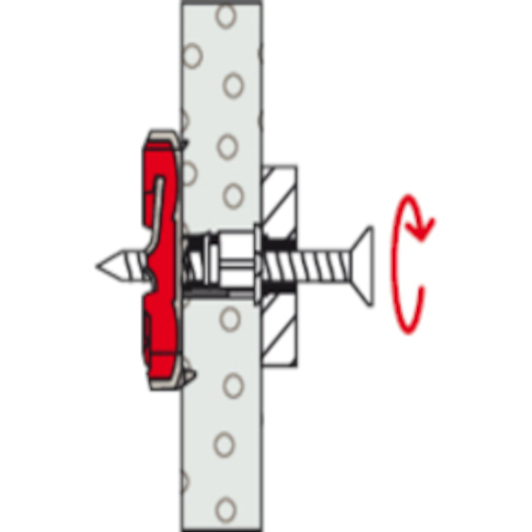

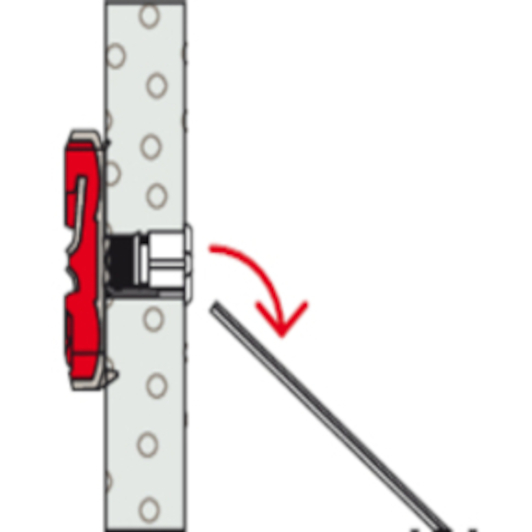

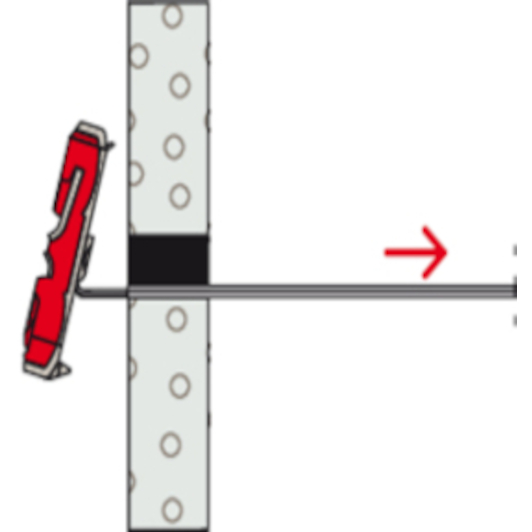

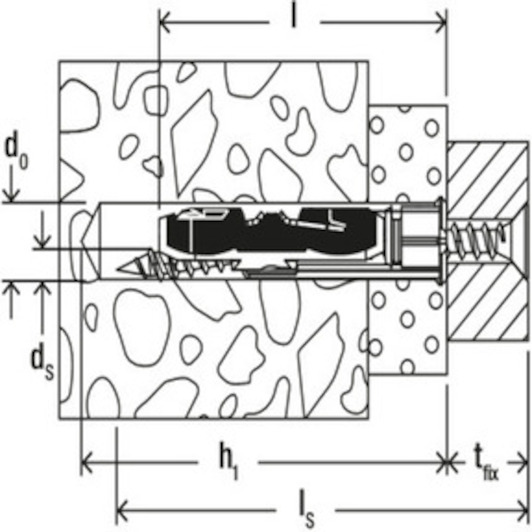

The unique functioning and the geometry of the fischer DuoTec plug allow for extremely heavy loads for rocker plugs. This reduces the number of fasteners in multiple fastenings and maximises safety. As part of the DuoLine, the DuoTec consists of two plastic components. The red and hard component of the plug's sleeve enables the uniform distribution of the load, while the grey and white prevent damage to the surface of the board during fastening and thus a load reduction. In applications in board materials, which have a hollow space behind them, the DuoTec is applied as a tumbling plug. In solid building materials, the plug can also be used as a spreader plug.
Applications
- Suspended kitchen cabinets
- Wall cabinets
- Bookshelves
- Wardrobes
- Handrails
- Paintings
- Mirrors
- Lamps
- Heavy hanging baskets
Building materials
Suitable for:
- Plasterboard
- Gypsum fibreboard
- Wooden panels (e.g. OSB, chipboard, MDF, etc.)
- Steel plate
- Plastic sheets

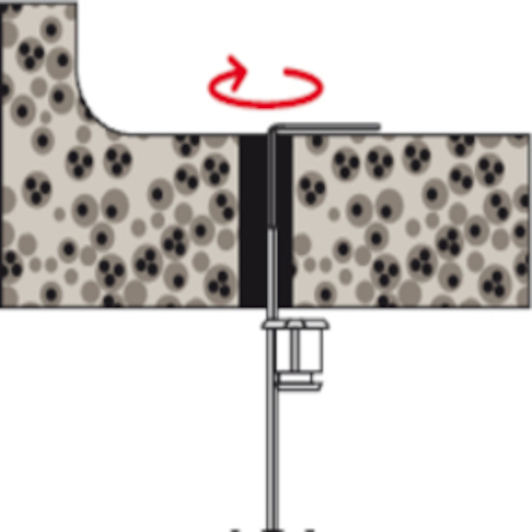

- Concrete hollow brick
Also suitable for:

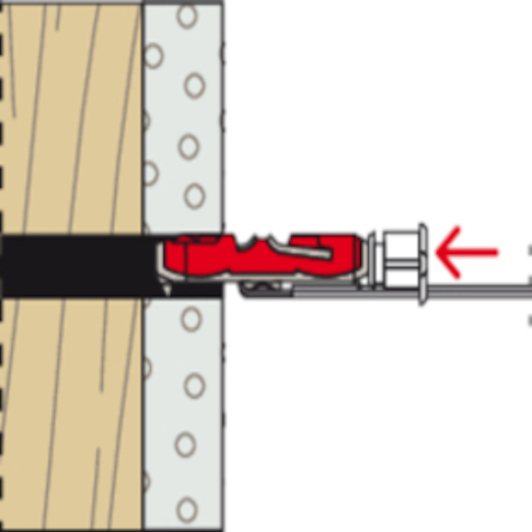

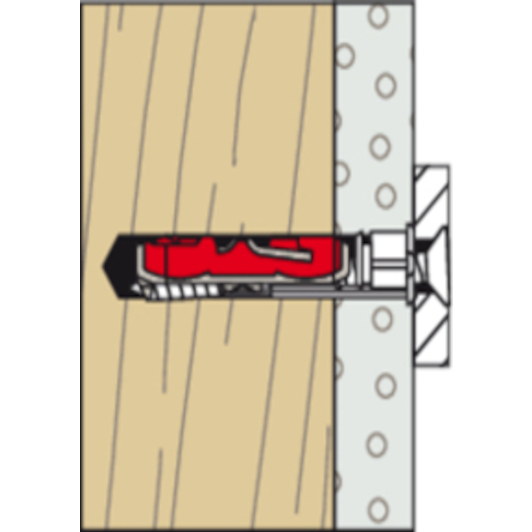

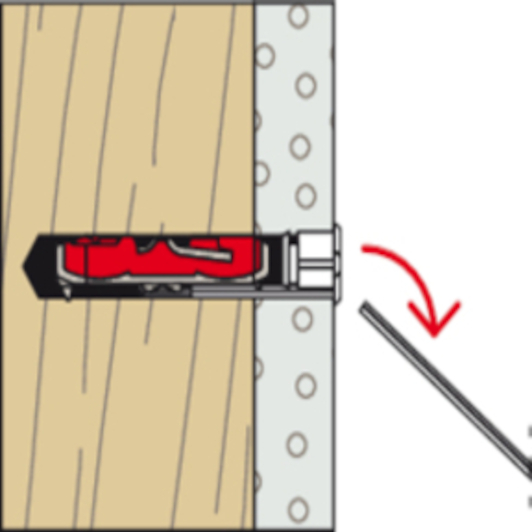

- Solid materials such as concrete and wood
