What drill hole diameter is required for the Fischer FNH 8 x 110 nail sleeve?

You need a drill diameter of 8 mm. The minimum drill hole depth for push-through installation is 120 mm.

Which base materials are suitable for this nail sleeve?

It is suitable for solid building materials such as concrete, solid sand-lime brick, solid brick, and dense natural stone.

How do you install the Fischer FNH 8 x 110?

Position it via push-through installation directly through the fixture into the drilled hole and drive it in with a hammer. No screws or plugs are needed.

What is the maximum fixture thickness for this anchor?

The maximum fixture thickness is 70 mm with an effective anchorage depth of 40 mm.

What are the common applications for the Fischer FNH 8 x 110?

It is designed for fast, light-duty fastening of timber battens, metal profiles, and sub-structures indoors or temporarily outdoors.

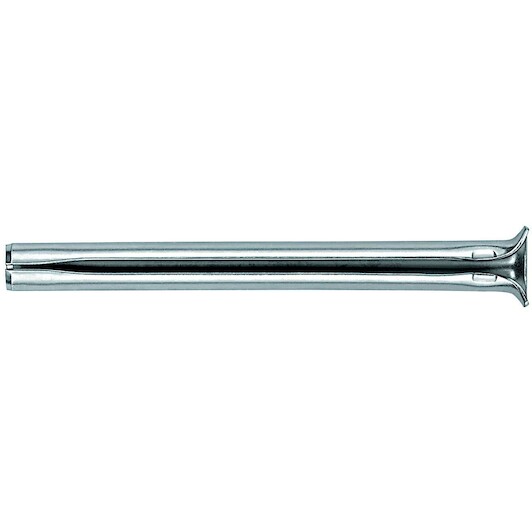

FISCHER 541906 tension sleeve FNH 8 x 110

Name: FISCHER 541906 tension sleeve FNH 8 x 110
Brand: FISCHER
SKU: 02824742
Price: 0.31 EUR
Availability: InStock

Supplier number: FISCHER 541906 | EAN 4048962293326

0.31 tax incl.

€0.26 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 50.

Ordered before 20:00 - delivered tomorrow 06/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Fast push-through anchoring in solid masonry

Practical benefits

Fischer spring pin FNH installation: You hammer this one-piece anchor straight into the drill hole without needing separate plugs or screws.
Full length contact expansion: The spring steel expands along its entire length to provide dependable holding power in concrete.
Durable corrosion protected design: Coated for corrosion resistance, it lets you secure lightweight timber battens and metal profiles reliably.

In a nutshell

The right choise for

With the Fischer fnh 8 x 110 nail sleeve, you complete push-through fixings quickly and efficiently without requiring separate plugs or screws. Simply insert this one-piece spring steel sleeve directly through your fixture into the 8 mm drill hole and drive it in with a hammer. The anchor expands along its full length to deliver dependable grip in solid building materials such as concrete, solid brick, and solid sand-lime brick. Offering a 110 mm length and a maximum fixture thickness of 70 mm, it is ideal for securely mounting timber battens, metal profiles, and substructures. Its corrosion-resistant coating provides long-lasting reliability.

Product information FAQ

€0.31

In stock - tax incl.

Key features according to our expert

Length: 110 mm

Product description

The user-friendly spring sleeve for light fixings in solid building materials.

The fischer nail sleeve FNH is a user-friendly spring sleeve made out of corrosion-resistant steel. The nail sleeve is driven into the through-type installation in a time-saving manner with the hammer, and expands along its whole length in the drill hole. This allows timber and metal sub-constructions, metal profiles, and squared timbers to be fixed in solid building materials in a cost-effective manner in interior areas and temporarily in external areas.

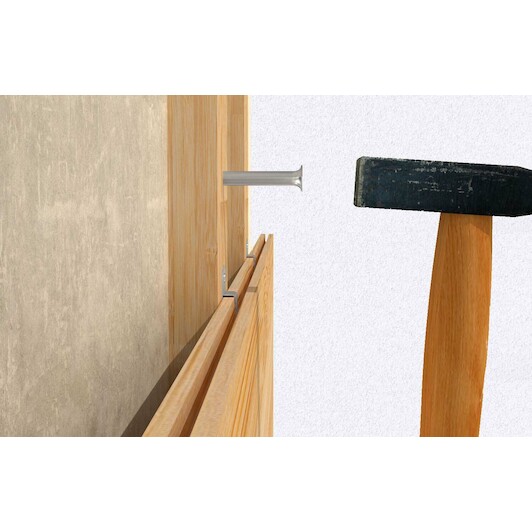

Knock in with the hammer - finished
Fixing without screws and plugs. This saves time and lowers costs
No plugs or screws are required for the one-piece nail sleeve. This guarantees a simple and easy installation
The geometry of the nail sleeve makes it easy to push it into the drill hole. This saves time and money

Suitable for

The FNH nail sleeve is suitable for push-through installation
The nail sleeve is hammered in and expands its entire length in the hole
FNH is suitable for interior applications and for temporary external fixings

Building materials

Concrete
Solid sand-lime brick
Natural stone with dense structure
Solid brick

Application

Squared timbers
Substructures made of wood and metal
Metal profiles

All Features

Length: 110 mm
Implementation: without screw
Drill diameter: 8 mm
Min. drill hole depth for through-hole mounting: 120 mm
Effective anchoring depth: 40 mm
Plug length: 110 mm
Max. attachment thickness: 70 mm

Brand FISCHER
02824742
EAN 4048962293326
Supplier number FISCHER 541906

Frequently asked questions about this product

Answered by specialists

What drill hole diameter is required for the Fischer FNH 8 x 110 nail sleeve?: You need a drill diameter of 8 mm. The minimum drill hole depth for push-through installation is 120 mm.
Which base materials are suitable for this nail sleeve?: It is suitable for solid building materials such as concrete, solid sand-lime brick, solid brick, and dense natural stone.
How do you install the Fischer FNH 8 x 110?: Position it via push-through installation directly through the fixture into the drilled hole and drive it in with a hammer. No screws or plugs are needed.
What is the maximum fixture thickness for this anchor?: The maximum fixture thickness is 70 mm with an effective anchorage depth of 40 mm.
What are the common applications for the Fischer FNH 8 x 110?: It is designed for fast, light-duty fastening of timber battens, metal profiles, and sub-structures indoors or temporarily outdoors.
