What drill bit diameter is required for this plug?

You need a 10 mm drill diameter with a drill hole depth of 130 mm for push-through installation.

Which screw bit is required for installation?

The included countersunk screw is driven using a T40 bit (Torx).

Which building materials is the Fischer DuoXpand suitable for?

It is approved for concrete, solid and perforated brick, sand-lime brick, and aerated concrete.

Is the screw included with the plug?

Yes, this plug comes complete with a matching zinc-plated countersunk safety screw.

What is the countersunk head version best suited for?

The countersunk head sits flush and is ideal for fastening wooden structures to concrete or masonry.

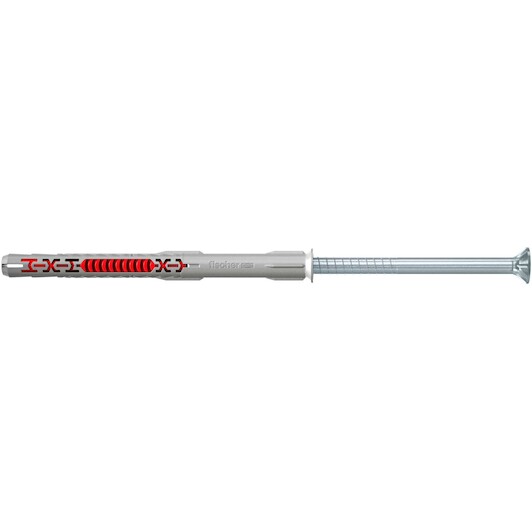

FISCHER 562207 construction plug DuoXpand 10 x 120 T countersunk head

Name: FISCHER 562207 construction plug DuoXpand 10 x 120 T countersunk head
Brand: FISCHER
SKU: 03347520
Price: 13.77 EUR
Availability: InStock

Supplier number: FISCHER 562207 | EAN 4048962442359

13.77 tax incl.

€11.38 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

The minimum purchase order quantity for the product is 5.

Ordered before 20:00 - delivered as of 06/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Secure fastening with Fischer DuoXpand

Practical benefits

Smart bi-material expansion: The combination of two material components ensures you achieve optimal expansion across solid and hollow substrates.
Two flexible anchoring depths: You can adjust the anchor to various base materials and load requirements using two distinct anchoring depths.
Flush timber installation: The pre-assembled countersunk safety screw allows you to mount wooden battens cleanly and flush with the surface.

In a nutshell

The right choise for

With the Fischer DuoXpand 10 x 120 t frame fixing, you secure timber structures reliably into solid and hollow building materials. The clever combination of two material components ensures optimal expansion across concrete, brick, sand-lime brick, and aerated concrete. Thanks to two flexible anchoring depths, you can easily adjust the installation to the base material and load requirements. The pre-assembled zinc-plated safety screw with countersunk head pulls tight for a clean, flush finish without splitting timber. Using a 10 mm drill diameter and a T40 bit, you complete push-through fixings for battens, frames, and cladding quickly and accurately.

Product information FAQ

€13.77

In stock - tax incl.

Key features according to our expert

Diameter (wall plug): - mm
Drilling diameter: 10 mm
Length (Wall plug): 80 mm
Depth (drill hole): 100 mm
Wall plug type: Hammer-in plug
With screw: Yes
With collar: Yes
Application: Concrete
type (screw head): T40

Scope of delivery (per purchase of 10)

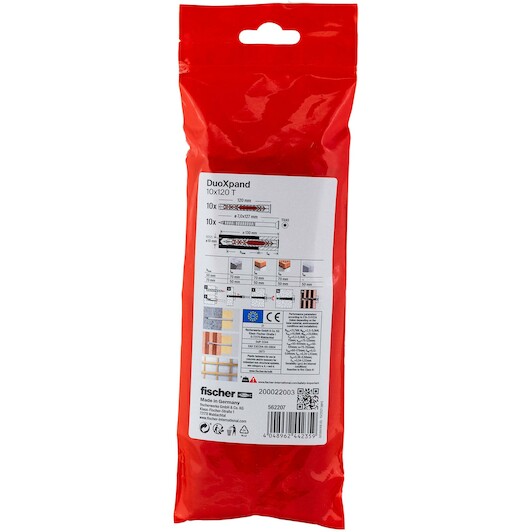

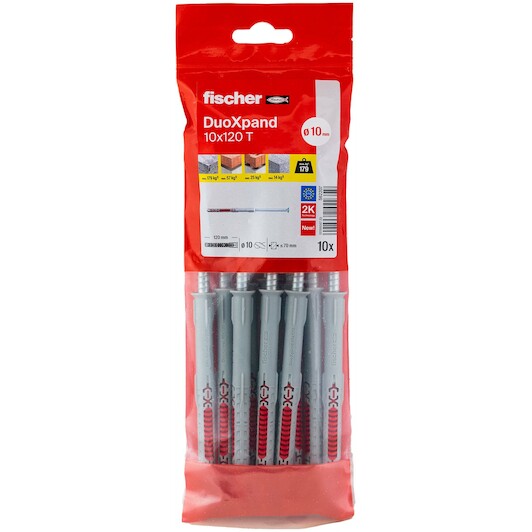

10x construction plug DuoXpand 10x 120 T

Product description

The Xpert in all substrates

Thanks to the clever combination of material and design, the plug bites into all substrates, guaranteeing universal applicability.

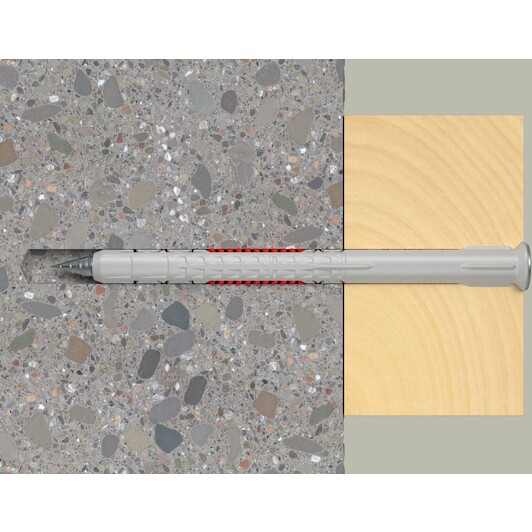

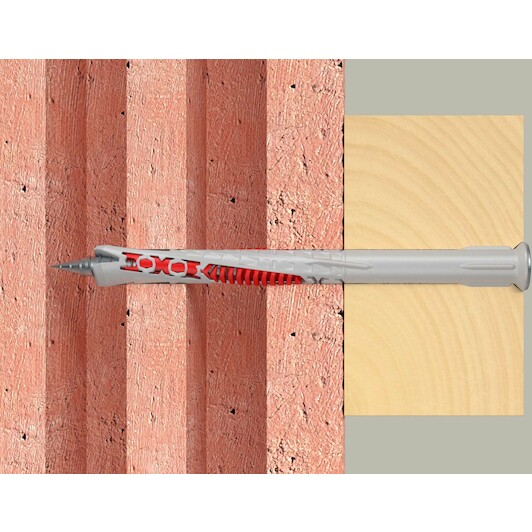

The special blade geometry carefully moulds itself to the respective building material. This prevents breaks in porous substrates and allows anchoring close to the edge.
The base made of high-quality nylon guarantees very strong fastening, at the same time the flexible red slats ensure optimum dispersion in the material.
The European Technical Certification (ETA) for multiple anchoring of non-load-bearing systems guarantees safety in all substrates.
The DuoXpand construction plug with double anchorage depth is certified for multiple anchoring of non-load-bearing systems in concrete, masonry and aerated concrete. Thanks to the special geometry and the use of different plastics, the plug adapts perfectly to the substrate. The range covers diameters 8 mm and 10 mm and lengths up to 230 mm. The DuoXpand with hexagonal head is very suitable for fixing metal attachments in masonry or concrete.

Applications

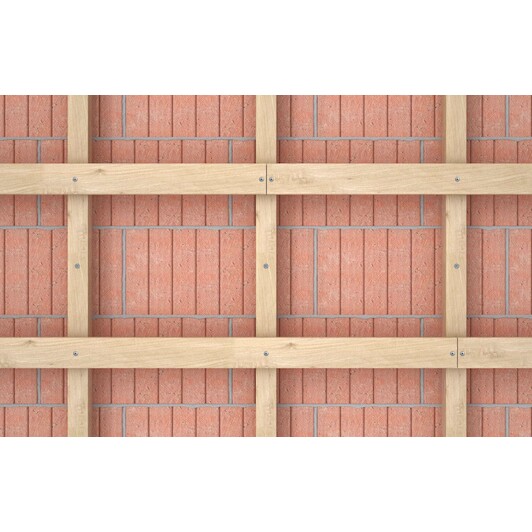

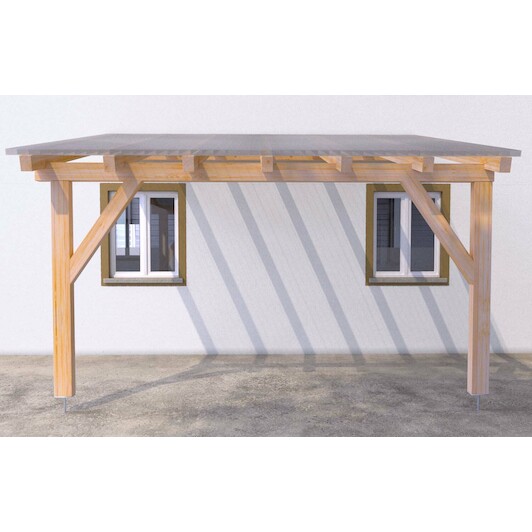

Wooden and metal facade and roof elements

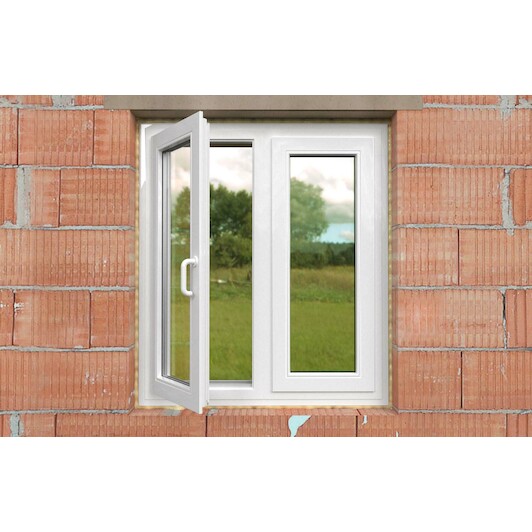

Window frames
Fences
Wardrobes
Kitchen cupboards
Timber
TV brackets
Cladding
Metal brackets
Metal supports
Cable trays
Cable trays

Building materials

Certified for:

Concrete >= C12/15
Solid brick
Solid sand-lime brick
Solid concrete blocks of lightweight concrete and normal concrete
Perforated clay brick
Perforated sand-lime brick
Lightweight concrete hollow blocks
Aerated concrete

Also suitable for:

High-density natural stone
Gypsum blocks

All Features

Diameter (wall plug): - mm
Drilling diameter: 10 mm
Length (wall plug): 80 mm
Depth (drill hole): 100 mm
Wall plug type: Hammer-in plug
With screw: Yes
With collar: Yes
Application: Concrete
Type (screw head): T40

Brand FISCHER
03347520
EAN 4048962442359
Supplier number FISCHER 562207

Frequently asked questions about this product

Answered by specialists

What drill bit diameter is required for this plug?: You need a 10 mm drill diameter with a drill hole depth of 130 mm for push-through installation.
Which screw bit is required for installation?: The included countersunk screw is driven using a T40 bit (Torx).
Which building materials is the Fischer DuoXpand suitable for?: It is approved for concrete, solid and perforated brick, sand-lime brick, and aerated concrete.
Is the screw included with the plug?: Yes, this plug comes complete with a matching zinc-plated countersunk safety screw.
What is the countersunk head version best suited for?: The countersunk head sits flush and is ideal for fastening wooden structures to concrete or masonry.
