Product description
The hinged pipe clamp with the convenient and secure quick-release fastener

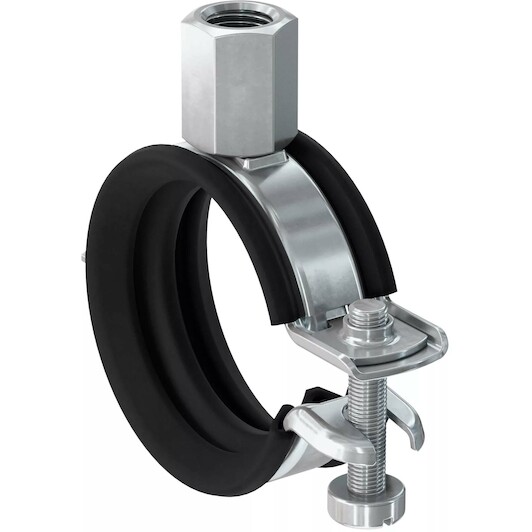

The fischer hinged pipe clamp FGRS Universal is a pipe clamp with one screw made from zinc-plated steel in material quality DD11 with a M8 or combination M8 / M10 thread. The rapid-locking mechanism and combination thread ensure easy and time-saving assembly. The quick-release mechanism snaps into place, ensuring reliable adjustment of the pipe without causing the clamp to pop open. This allows pipelines with an outer diameter of 12 - 66 mm to be securely fixed with a threaded rod or stud screw indoors. With a chlorine-free and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109.
- With sound protection test report for objectively tested functional safety
- Full, seamless diameter clamping range for fastening any size of pipe
- Quick closure with full edge for secure, convenient assembly
- Pipe clamp with embossed beads on the edge for a firm hold and simple pipe adjustment
- Combination TX-slotted thread for added assembly flexibility
- The sound insulation test report guarantees objectively tested functional safety
- The complete and gapless diameter clamping range allows the fastening of any pipe size
- The unique rapid-locking mechanism with all-round edge enables safe and convenient installation
- The clamp band with crimped edges gives the sound insulation insert a tight fit and simplifies the pipe adjustment
- The compact design of the pipe clamp allows simple, subsequent insulation
- The combination torx-slot thread of the screw increases flexibility during assembly
Application

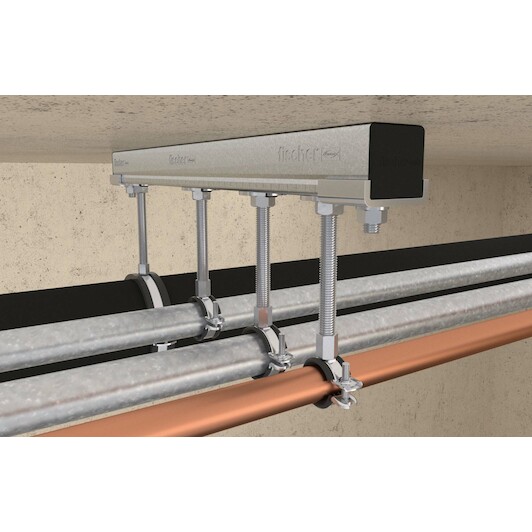

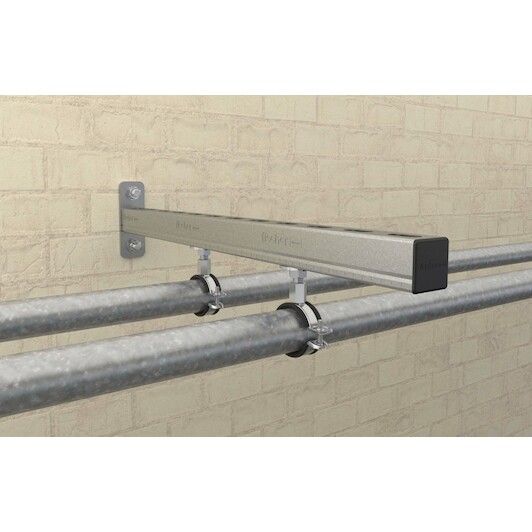

- Time-saving fixing of pipelines up to 4" with threaded rods or hanger bolts
- For use in dry interior areas
