Product description
With a large washer, in line with timber construction standards. For highest demands. Powerful and flexible.

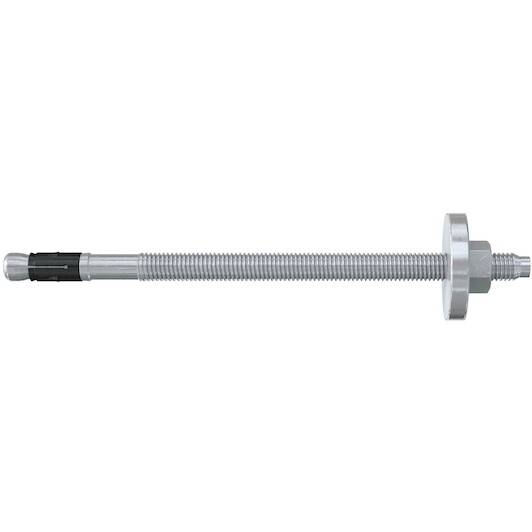

The fischer bolt anchor FAZ II Plus HBS with washer in line with timber construction standard DIN 1052 is the steel anchor for the most demanding requirements. Heavy loads are fixed into cracked concrete with the zinc-plated steel anchor. Due to the variable anchorage depths and simple mounting, the FAZ II Plus HBS can be used in a particularly flexible manner. The proven expansion clip feeds the loads into the concrete in an especially secure manner and ensures maximum load-bearing properties. The version made of zinc-plated steel is used to fix timber constructions. The steel anchor is, for example, suitable for fixing beams and sills.
- With washer in line with timber construction standard DIN 1052. This allows for enhanced force transmission when fixing timber constructions
- Quick and easy assembly without the need for drill hole cleaning (M8-M24)
- Decisive increase in tensile load-bearing capacity due to the new assessment (ETA) - fewer fixing points and smaller anchor plates save time and costs
- New ETA confirms the use of FAZ II Plus for the dynamic load of components for diameters M16-M24 under direct load
- Highest durability over a service life of 120 years is confirmed by the external test certificate of the FAZ II Plus (M10-M16)
- Highest seismic loads for diameters M10-M24 with and without the use of the filling disc FFD
- Millimeter accurate adjustment to the loads due to the variable anchoring depths
- The FAZ II Plus HBS with extra large washer as per the wood construction standard DIN 1052 included in the delivery ensures even better force transfer for the fixation of sills and beams, for example
- The significantly larger outer diameter of the washers for FAZ II Plus 16 GS ensures a larger supporting surface, and as such allows for use in wood construction
- Quick and easier assembly without the need for drill hole cleaning (M8-M24)
- Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fiber concrete, solid sand-lime brick) increase the number of applications and fields of use
- With the new assessment (ETA), the tensile strengths increase decisively. As a result, fewer fixing points and anchors are required
- The ETA evaluation, together with other test reports (RWS, ZTV, ETK), ensures high loads in case of fire
- An external independent assessment confirms the service life of anchorages up to 120 years. Thus, the FAZ II Plus outlasts a whole century and is perfectly suited for large, long-lasting construction projects (M10-M16)
- The variable anchorage depths allow a millimetre-accurate adjustment to the loads
Suitable for

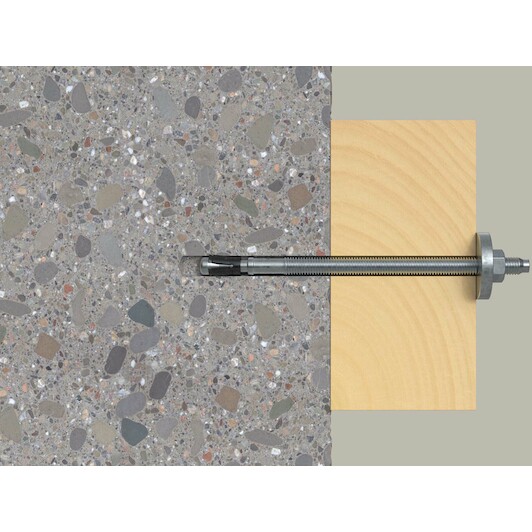

- The FAZ II Plus HBS is suitable for pre-positioned and push-through installation and is also ideal for stand-off installations
- Before installation, place the hex nut and washer as per the wood construction standard into the optimum position
- When the torque is applied, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall
- The anchor is set in line with the approval once the preset installation torque is achieved
- In the case of series installation, we recommend using the FABS or FA-ST II anchor bolt setting tools
Building materials
Approved for:
- Beton C20/25 bis C50/60, gerissen und ungerissen
Also suitable for:
- Concrete C12/15 (classification available)
- Concrete C80/95 (classification available)
- Steel fiber concrete (classification available)
- Solid sand-lime brick (classification available)
Application
- Anchor plates with slotted holes
- Façade sub-structures with slotted holes

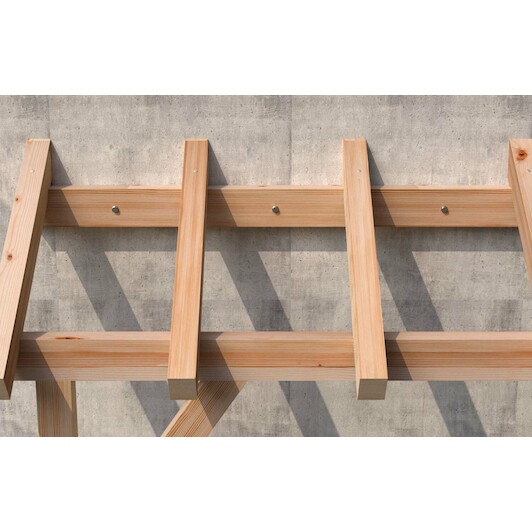

- Timber constructions
- Tension anchor
- Anchoring of wooden beams
