Product description
With cap nut. For highest demands. Powerful and flexible.

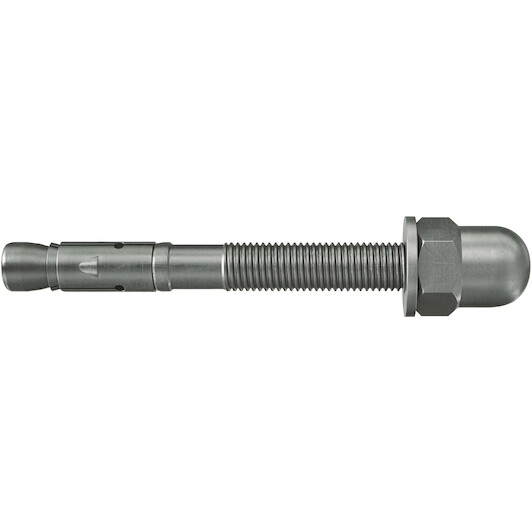

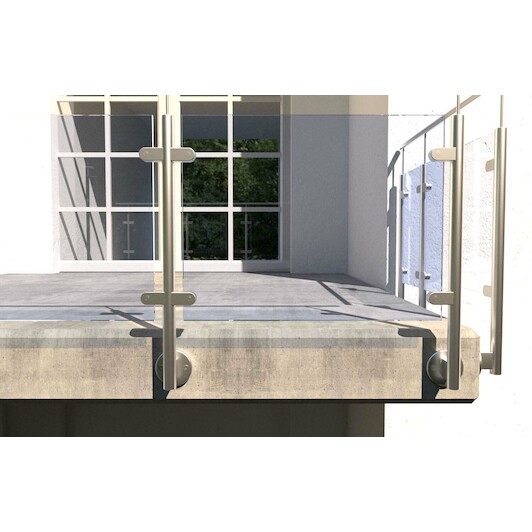

The fischer bolt anchor FAZ II Plus H is the steel anchor for highest demands. The new sizes of the special cap nut version (M10 and M12) are also implemented in the ETA assessment and it is ideal for architecturally sophisticated applications. Thanks to variable anchorage depths and easy installation, the FAZ II Plus can be used in many different ways. The tried-and-trusted expansion clip securely feeds the loads into the concrete and ensures a high load-bearing-capacity. The FAZ II Plus H is the optimal solution (for example) for the anchorage of railings in visible areas: The cap nut, not only gives the option for a better and refined optical design but also, ensures an accident free installation due to its closed shape.
- Quick and easy assembly without the need for drill hole cleaning (M8-M24)
- Stainless steel: maximum safety for outdoor use
- Decisive increase in tensile load-bearing capacity due to the new assessment (ETA) - fewer fixing points and smaller anchor plates save time and costs
- Highest durability over a service life of 120 years is confirmed by the external test certificate of the FAZ II Plus (M10-M16)
- Highest seismic loads for diameters M10-M24 with and without the use of the filling disc FFD
- Millimeter accurate adjustment to the loads due to the variable anchoring depths
- The cap nut is implemented in the ETA assessment and it is ideal for architecturally sophisticated applications
- Due to its closed shape, the cap nut version ensures an accident free installation
- The cap nut is implemented in the ETA assessment and it is ideal for architecturally sophisticated applications
- Due to its closed shape, the cap nut version ensures an accident free installation
- Quick and easier assembly without the need for drill hole cleaning (M8-M24)
- Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fiber concrete, solid sand-lime brick) increase the number of applications and fields of use
- With the new assessment (ETA), the tensile strengths increase decisively. As a result, fewer fixing points and anchors are required
- The ETA evaluation, together with other test reports (RWS, ZTV, ETK), ensures high loads in case of fire
- An external independent assessment confirms the service life of anchorages up to 120 years. Thus, the FAZ II Plus outlasts a whole century and is perfectly suited for large, long-lasting construction projects (M10-M16)
- The variable anchorage depths allow a millimetre-accurate adjustment to the loads
Suitable for
- The FAZ II Plus H is suitable for pre-positioned and push-through installation
- When applying the torque, the cone bolt is pulled into the expansion sleeve and expand it against the drill hole wall
- The anchor is set in line with the approval once the preset installation torque is achieved
Building materials
Approved for:
- Beton C20/25 bis C50/60, gerissen und ungerissen
Also suitable for:
- Concrete C12/15 (classification available)
- Concrete C80/95 (classification available)
- Steel fiber concrete (classification available)
- Solid sand-lime brick (classification available)
