FISCHER

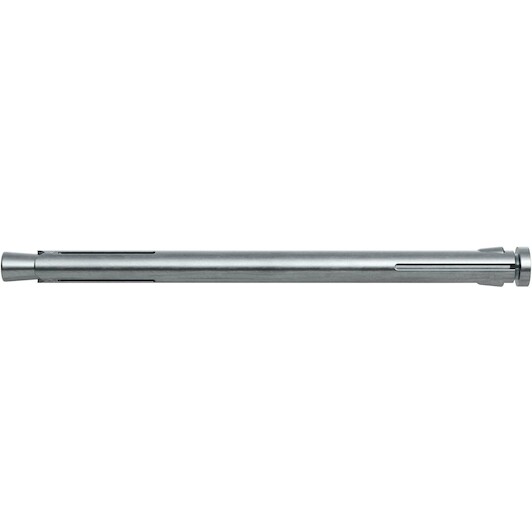

FISCHER 88662 frame plug F 8 M 92 electrolytically galvanised steel

0.74 tax incl.
€0.61 excl. VAT (incl. all environmental contributions)
On order: delivered from 02/06/2026
each

The minimum purchase order quantity for the product is 100.

  • Ordered before 20:00 - delivered as of 02/06/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

The screw fixing with lenticular flange head for the stress-free installation of window and door frames.

The fischer metal frame fixing F-M is a special plug for the stress-free, lasting stand-off installation of window and door frames and of squared timbers. It consists of a metal sleeve and a zinc-plated steel screw. The F-M is set in a time-saving push-through installation. When the screw is tightened, the cone is pulled into the plug sleeve and expands against the wall of the drill hole. This ensures a fixation that is free from tensile force and pressure, thus guaranteeing a secure hold in solid and hollow building materials. The F-M is tested for fire resistance class R120, and offers safety for fire-protection-relevant applications.

  • The F-M metal frame plug achieves fire resistance R 120. This allows for use in areas where fire resistance is relevant
  • The operating principle prevents the window frame from being pulled against the substrate, and ensures a stress-free and long-lasting fixing of the frame
  • The special plug geometry anchors the metal and plastic profiles against compressive and tensile loads, and allows for a secure hold of the window frame
  • The cover caps (available separately) can be used to discreetly cover the screw heads

Suitable for

  • The F-M is suitable for push-through installation

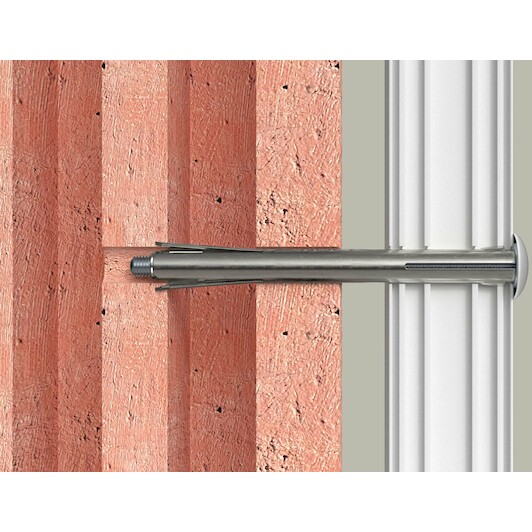

  • By tightening the screw, the cone is drawn into the sleeve and the fixing is expanded which wedges it inside the drill hole. The window frames are thus fixed in a stress-free manner
  • The maximum installation torque is 5 Nm

Building materials

  • Concrete
  • Vertically perforated brick
  • Hollow blocks made from lightweight concrete
  • Perforated sand-lime brick
  • Solid sand-lime brick
  • Aerated concrete
  • Solid brick made from lightweight concrete
  • Solid brick

Application

  • Window frames
  • Door frames
  • Squared timbers
Key features according to our expert
  • Diameter (wall plug): - mm
  • With screw: Yes
  • Drilling diameter: 8 mm
  • Application: General
  • type (screw head): PZ2
  • Wall plug type: Hammer-in plug
  • Material (wall plug): Polyamide (Nylon®)
  • Drill hole depth: - mm
  • Length (Wall plug): 92 mm
Specifications / All features
  • Brand: FISCHER
  • EAN: 4006209886625
  • Supplier number: FISCHER 88662
Diameter (wall plug)
- mm
With screw
Yes
Drilling diameter
8 mm
Application
General
Type (screw head)
PZ2
Wall plug type
Hammer-in plug
Material (wall plug)
Polyamide (Nylon®)
Drill hole depth
- mm
Length (wall plug)
92 mm
Min. anchoring depth
30 mm
Remote mounting
Yes
Fire safety error
Yes
Screw size
M5 x 105 mm
Head variant
Lens head
Plug length
92 mm
Fire resistance
R120
Effective anchoring depth
30 mm
Front mounting
No
Recording
Phillips head PZ
Min. drill hole depth for through-hole mounting
110 mm
Pierce fitting
Yes
Drill diameter
8 mm
Implementation
with screw
Max. attachment thickness
62 mm
