Product description
Anchor for temporary fixing in hollow core concrete slabs without approval

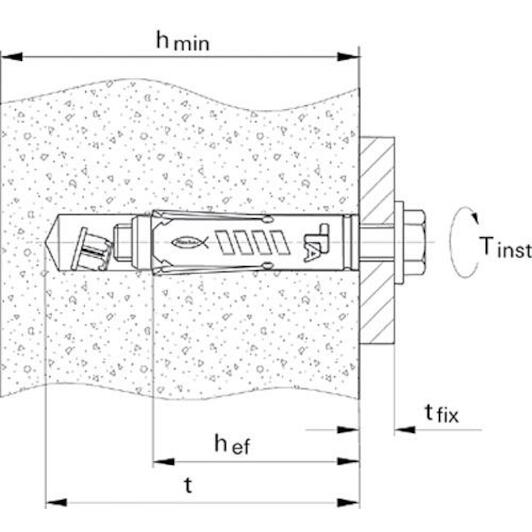

The fischer Hose anchor TA M NL is a sleeve anchor with female thread suitable for temporary fixing in hollow-core concrete slab floors. The optimized anchor geometry minimizes the energy required for installation. During assembly, the cone is pulled into the expansion sleeve, which then spreads into the wall of the channel. The triple spreading sleeve guarantees the even distribution of the load. After disassembly, no protruding parts remain in the drillhole, thus preventing the risk of accidents.
- Easy assembly due to small efforts during application
- Very suitable for temporary anchoring of struts in hollow-core slab floors
- No protruding parts after disassembly
- The fischer Hose anchor TA M-NL is suitable for use in hollow-core concrete slab elements with a thickness of >= 40 mm. The fischer Hulsanker TA M-NL is multifunctional and suitable for push-through installation. In addition, the anchor is detachable (sleeve stays behind in the channel plate). The anchor is available as standard in electrolytically galvanized steel
Suitable for
- The TAM NL is suitable for push-through installation
- During tightening, the cone is pulled into the sleeve, so that it is clamped against the borehole wall
- The drilling process is decisive for the strength of the fastening. It is essential that the thickness of the shell is not further reduced by the concrete at the rear of the borehole. We first recommend to pre-drill 10 mm with a drill diameter and then drill with the specified drill diameter
Building materials
Suitable for:
- Concrete C12/15
- Natural stone with dense structure
- Hollow core concrete slabs
For fixing of:
- Temporary fixings like bracings
Application
- Temporary fixings of braces in hollow core concrete slabs
