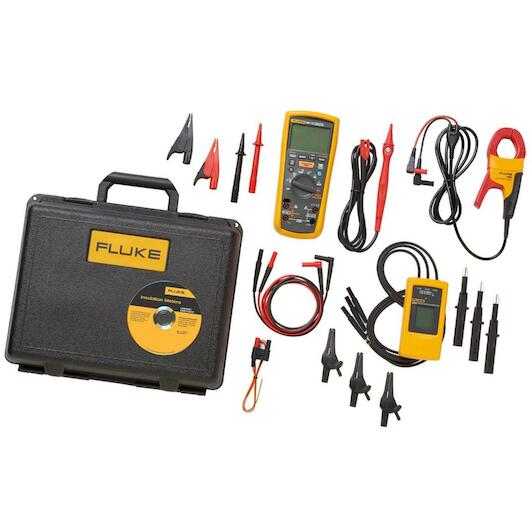

Scope of delivery
- Fluke 1587 FC 2-in-1 insulation DMM
- Fluke i400 current clamp
- Fluke 9040 phase rotation indicator
- External probe
- Test leads
- Alligator clips
- Thermocouple type K
- Carrying case
- User documentation
Product description:
- advanced troubleshooting kit for electric motors and drives
- The Fluke 1587 FC insulation multimeter with four powerful new diagnostic features via the Fluke Connect Measurements app:
- Timed PI/DAR ratio tests with TrendIt graphs identify moisture and contaminated insulation problems faster
- Memory storage via Fluke Connect, eliminating the need to write down results, reducing errors and saving data for later tracking over time
- Temperature compensation via the app for establishing accurate baselines and relevant historical comparisons
- Historical tracking of equipment and recording of trends reveals equipment deterioration over time and enables real-time on-site decisions with Fluke Connect Assets
- The Fluke i400 AC current clamp is a high-security current clamp for digital multimeters.
- The current clamp provides accurate current measurements without interrupting the electrical circuit, allowing you to measure safely according to industry safety standards.
- 9040 phase rotation indicator is suitable for measuring phase rotation anywhere three-phase power supplies are used to supply motors, drives and electrical systems.
- The phase sequence can be quickly determined and the instrument is ideal for commercial and industrial applications.
Key features:
Includes a Fluke 1587 FC 2-in-1 isolation DMM, Fluke i400 current clamp and a Fluke 9040 phase rotation indicator
- With the Fluke 1587 FC, perform insulation tests with confidence and ease plus a wide range of DMM tasks
- Use the Fluke i400 together with your Fluke 1587 FC to accurately measure AC current without interrupting the power circuit
- Check phase rotation of three-phase motors easily and safely with the Fluke 9040

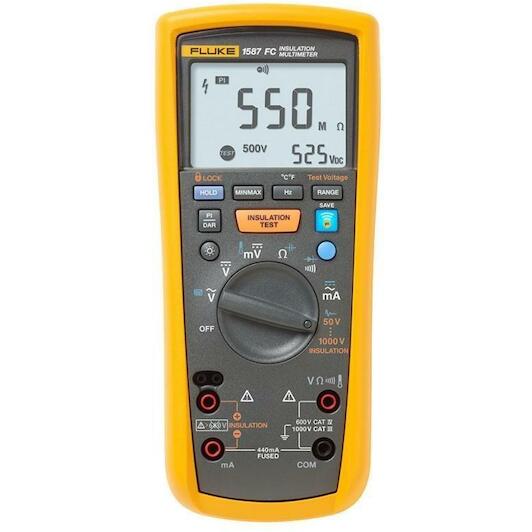

The Fluke 1587 FC 2-in-1 isolation DMM
- PI/DAR measurements with TrendIt graphs
- Memory storage via the Fluke Connect Measurements app
- Temperature compensation via the Fluke Connect Measurements app
- Low-pass filter for frequency-controlled drives, for accurate measurements on motor drives
- Insulation test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
- Insulation test voltages: 500 V and 1000 V
- Insulation test: 0.01 M? to 2.0 G?
- Insulation test: 0.1 M? to 600 M?
- Automatic discharge of capacitive voltages
- Smoothed reading of insulation test values
- Frequency/capacitance/diode test/temperature
- Min/max / AC/DC voltage / DC in millivolts / AC/DC in milliamps
- Resistance (0.1 ? to 50 M?) / continuity / automatic switch-off
- 3-year warranty/external probe, test leads, alligator clips, type K thermocouple, carrying case
Fluke i400 AC current clamp
- Use your Fluke 1587 FC to measure 1 A AC to 400 A AC
- 1 mA/Amp output for easy reading
- Overvoltage standard CAT III 1000 V / CAT IV 600 V for added user protection
- Specially designed for maximum functionality in a compact form
- Maximum conductor Ø: 32 mm
- 1 year warranty
Fluke 9040 phase rotation indicator
- Large display to easily determine field rotation and phase sequence
- Indication for all three phases
- Overvoltage standard CAT III 600 V
- 2-year warranty
