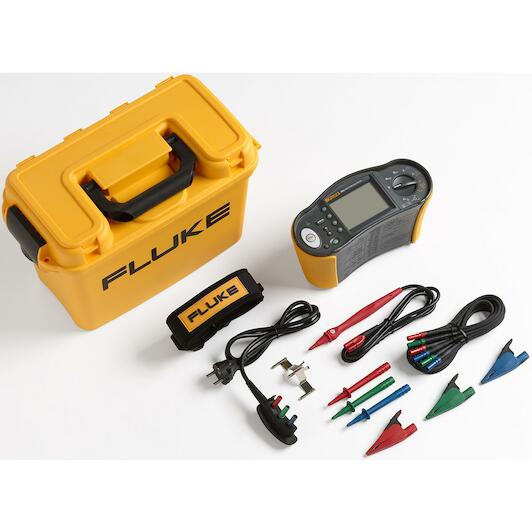

Scope of delivery
- 6 AA batteries (IEC LR6)
- C1600 carrying case
- Zeroing function
- Heavy-duty power cord for one input
- STD standard measurement lead set
- Padded carrying and waist strap
- Quick guide
- TP165X probe with remote control and cord
- User guide on CD-ROM
Product description:
- The ideal tester for hard-working professionals.
- This instrument is ideal for professional users ? full functionality, advanced measurement capabilities, yet easy to use.
- Intuitive to operate and easy to master by field technicians of all levels.

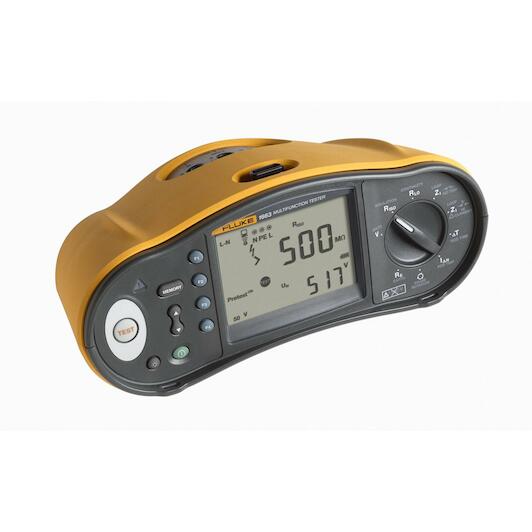

Key features
- The 1663 puts more power in your hands by testing quickly and efficiently according to all local regulations.
- Devices inadvertently connected to the system being tested are protected.
- Moreover, the 1663 makes it easy to share test results via your smartphone.
Measurement functions
- Passage of inputs L-N, N-PE (phase-neutral, neutral-earth)
- Testing of RCCBs sensitive to smoothed DC voltage (type B)
- Earth resistance
- Voltage and frequency
- Check of wiring polarity, recognises broken N-wires
- Insulation resistance
- Pass-through and resistance
- Measure motor windings with continuity tests
- Loop and line resistance
- Expected earth fault current (PEFC/IK)
- Expected short-circuit current (PSC/IK)
- RCCB tripping time
- RCCB trip value (rise test)
- Measure tripping time and current for type A and AC RCCBs in one test
- Variable current of RCCBs
- Automatic test cycle for RCCBs
- Phase sequence indication
Memory interface
- Z-max memory
- Memory
- Computer interface (if used with optional FlukeView and Fluke DMS software)
- Time and date (when used with FlukeView software)
