Contents of the pack
- 6 AA batteries (IEC LR6)
- C1600 carrying case
- Zero-setting function
- Heavy-duty mains lead
- STD standard test lead set
- C1600 carrying case
- Padded carrying strap and hip belt
- Quick start guide
- TP165X probe with remote control and lead
- T6-1000 electrical tester

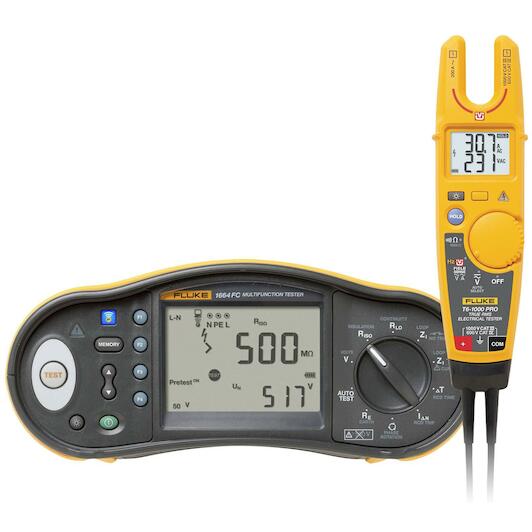

Product description
The 1664 FC puts more power in your hands by enabling fast and efficient testing in accordance with all local regulations. Devices accidentally connected to the system under test are protected. Furthermore, the 1664 FC makes it easy to share test results via your smartphone.
- Automatic testing for measuring line/loop impedance, the trip current/trip time of RCDs and for insulation tests, at the touch of a button.
- Additional high-current loop test mode. Faster measurements compared to loop tests using the no-trip mode for RCDs.
- Z-max memory for loop tests - easy evaluation of the highest loop test value.
- Unique zeroing adapter for fast, consistently reliable and accurate compensation for test leads and mains leads.
- Fast voltage measurement between L-N, L-PE and N-PE using the mains lead. No need to change the measurement connections.
- Simultaneously measures the tripping time and tripping current of residual current devices (RCDs, types AC and A).
- Two measurements simultaneously and a dual display. PEFC or PSC and loop impedance are measured and displayed in parallel, saving you time.
- Ring tests - select the required input sockets using soft keys - no need to swap test leads.
- Automatic start of the test for loop and RCD tests - the test starts as soon as the mains voltage is stable.
- The earth potential touchpad detects elevated earth potentials >50 V and alerts the user to potentially hazardous situations.
- Supplied with SureGrip safety test leads and clamps, giving the user a comfortable, reliable grip and consistent results.
- The rotary switch clearly indicates which function has been selected; all functions in one place and no complex multi-level menus.
- Large backlit display with clear symbols and an exceptionally wide viewing angle for easy and safe measurement.
- PASS/FAIL indication for RCD test results.
- Variable RCD current mode for customised settings.
- Loop and line resistance with mOhm resolution
- Testing of type B RCDs sensitive to smoothed DC voltage.
- Extensive memory with 3 layers.
- Use continuity test currents for testing motor windings.
- Withstands a drop from 1 metre.
- Compact, lightweight (less than 1.3 kg) and with a padded neck strap, leaving your hands free to test all day long.
