Comprehensive energy logging with Fluke 1736/EUS
- Automatic power quality logging: You automatically capture over 500 power quality parameters to pinpoint energy waste and optimize electrical system performance.
- Direct circuit power supply: You power the instrument directly from the measured circuit, removing the need for a separate power outlet.
- Flexible four phase measurements: With the four included flexible current probes, you can easily measure all three phases and neutral simultaneously.

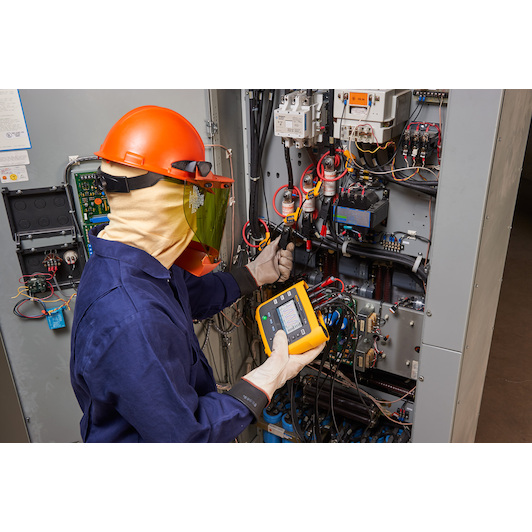

Gain immediate visibility into power consumption and grid health with the Fluke 1736/EUS portable three-phase power logger. This instrument automatically captures and logs over 500 power quality parameters, measuring voltage, current, power, and harmonics across all three phases and neutral. The four included flexible 1500A current probes make setup simple, even in cramped electrical panels. You can power the logger directly from the measured circuit, eliminating the need for an external wall outlet. Easily evaluate your logged data and generate comprehensive reports using Energy Analyze Plus software and Fluke Connect. Rated cat IV 600V and cat III 1000V, it provides safe and dependable operation in demanding industrial environments.

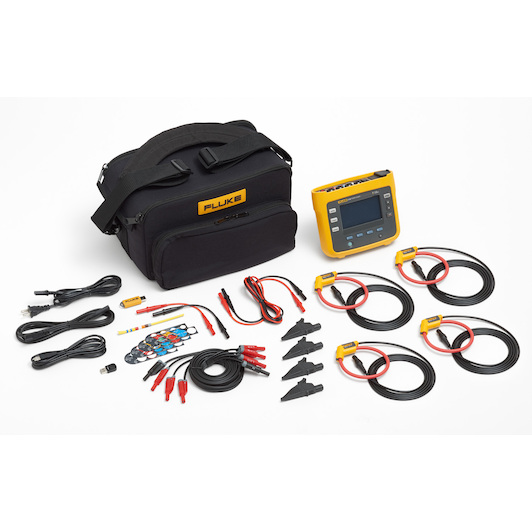

Scope of delivery
- 1736 energy logger
- Power supply
- Voltage test cables
- Crocodile clips (4x)
- 1500A flexible current clamp of 30.5 cm (4x)
- Carrying case
- Energy Analyze Plus software
- WiFi adapter
- Cables
- Colour coding
- Documentation on USB memory
Product description:
- More insight, less uncertainty and make better decisions about grid power quality and energy consumption
- The Fluke 1736 three-phase Power Logger is compatible with the Fluke Connect mobile app and desktop software, giving you the data you need to make immediate, critical, real-time decisions about grid power quality and energy consumption.
- The 1736 is the best test tool for conducting energy studies and for basic recording of mains power quality.
- The device automatically records more than 500 parameters on mains power quality, giving you a better understanding of the data needed to optimise system reliability and economy.
- Installation is easier than ever and reduces measurement uncertainty thanks to an optimised user interface, flexible current probes and an intelligent measurement monitoring function that allows you to reduce measurement errors by digitally checking and correcting common connection errors.
- View and share data remotely with your team via the Fluke Connect app so you can maintain safer working distances and make critical decisions in real time, reducing the need for security equipment, site visits and check-ins.
- You can also quickly and easily display measurements in a summary or graph to identify problems, and you can create detailed reports with the included Fluke Energy Analyze Plus software package.
- The Fluke 1736 is the best Power Logger for general purposes.
- If you are looking for a Power Logger with the same great capabilities for energy studies and more advanced capabilities for grid power quality recording, the Fluke 1738 is the best choice.
Key features:
- Key measurement functions: Automatically measure and record voltage, current, power, harmonics and associated power quality values.
- Compatible with Fluke Connect: View data locally on the instrument or via the Fluke Connect Mobile App and desktop software.
- Convenient instrument connection: The instrument is powered directly from the measured circuit.
- Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III approved for service input and downstream circuits.

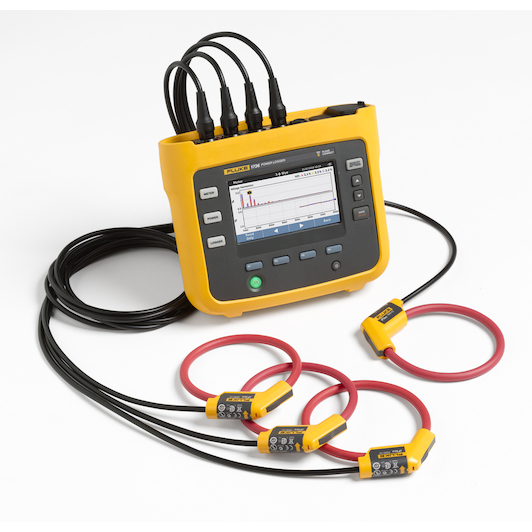

- Measures all three phases and neutral: With 4 flexible current clamps included.
- Comprehensive log function: More than 20 individual log sessions can be stored on the instruments.
- All measured values are even recorded automatically so you never lose measurement trends.
- They can even be accessed during recording sessions and before downloading for real-time analysis.
- Record decreases, increases and inrush currents: Includes snapshots of event waveforms and a high-resolution RMS profile along with the date, time stamp and severity to identify possible root causes of power quality problems.

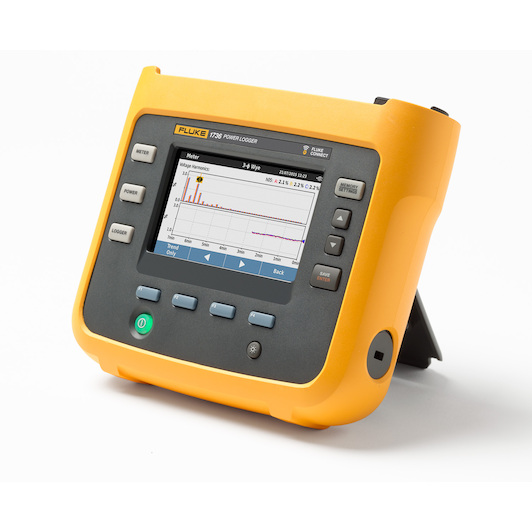

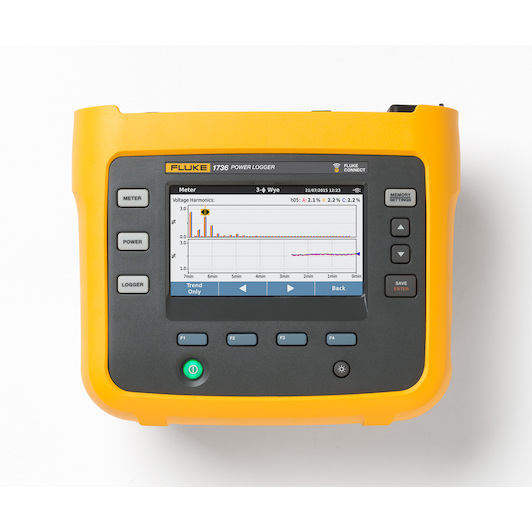

- Bright colour touchscreen: Useful analysis and checking of data can be done in the field, with full graphical display.
- Optimised user interface: Always capture the right data with fast, guided graphical setup and eliminate uncertainty about connections with the intelligent verification function.
- Complete set-up 'on site' via the front panel or the Fluke Connect App: No need to return to the workshop to download and install or to take a computer to the electrical distributor.
- Energy Analyze Plus application software: Download and analyse every detail of energy consumption and mains power quality using our automatic reports.
