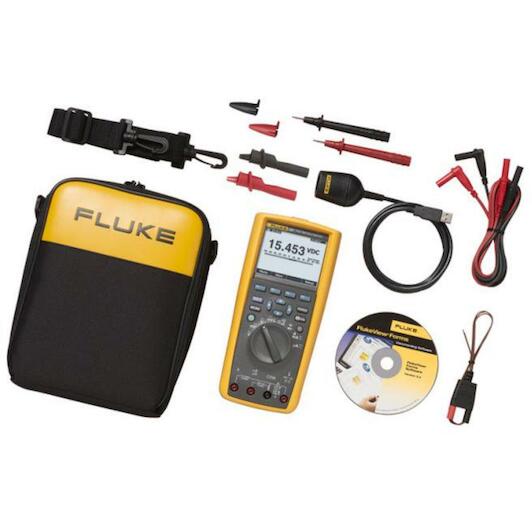

Fluke-287 True-RMS electronic multimeter with logging function and TrendCapture
FlukeView Forms software and cable
80BK-A thermocouple probe
CAT III 1000 V 10 A modular test leads (red and black)
CAT II 1000 V 10 A modular test probes (red and black) and caps
CAT III 1000 V 10 A crocodile clips (red and black)
C280 carrying case to protect the instrument and store accessories
Set of banana plugs
TPAK magnet pendant for hands-free use
Requires Fluke ir3000 FC infrared connector for Fluke Connect communication (not included in this kit)
Product description:

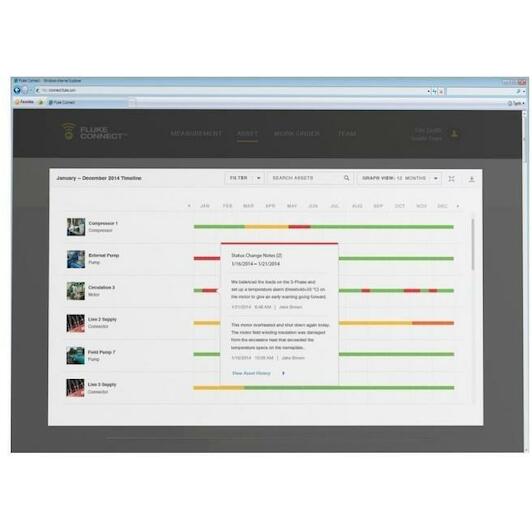

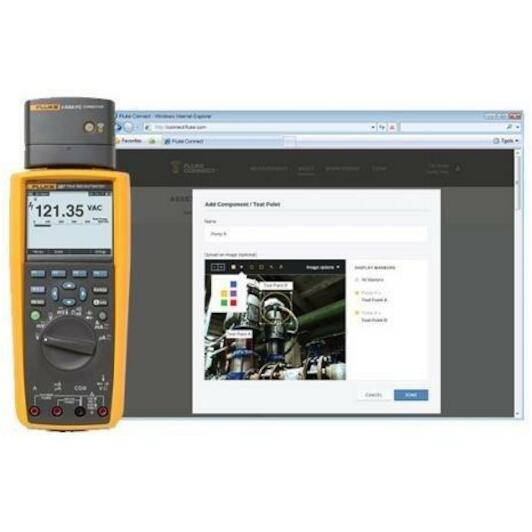

Compatible with Fluke Connect Mobile App
Achieve maximum productivity with the combination kit of the Fluke 287 and FlukeView Forms software.
Designed for today's professionals in R&D, maintenance, manufacturing and design of electronic circuits or systems.
With its built-in data logger and TrendCapture function (the graphical display on the meter's screen), the 287 lets you detect hard-to-find intermittent faults or monitor equipment operation using its other features.
With FlukeView Forms, you can document, store and analyse individual readings or series of readings, and overlay logged data to demonstrate cause-and-effect relationships, or convert your data into clear graphs and tables for professional reporting.

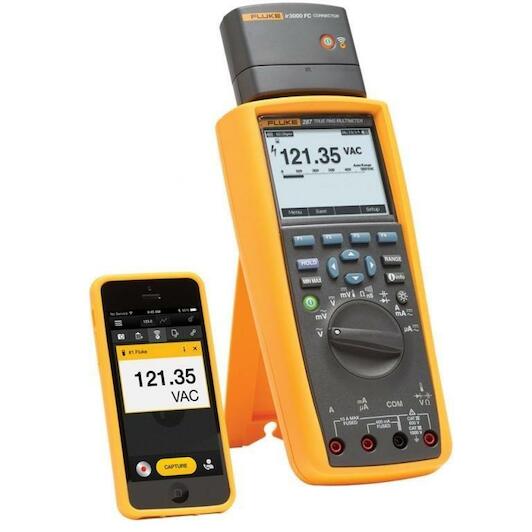

The 287 is compatible with the new Fluke ir3000 FC infrared connector, so you can share live measurements on your iOS or Android device using the Fluke Connect Mobile App.
The 287/FVF combination kit gives you a practical and affordable solution for documenting circuit design performance.
Key features:
NEW ? Now compatible with Fluke Connect Mobile App and all Fluke FC-enabled measuring instruments with optional ir3000 FC infrared connector (sold separately).
NEW ? Instantly show your team what you see, with the ShareLive video call feature (Fluke Connect Mobile App and ir3000 FC wireless connector required).
TrendCapture quickly graphically displays a logged data session to quickly determine if anomalies have occurred.
Zooming in on trends offers unprecedented possibilities for viewing and analysing TrendCapture data; up to 14 times zoom in.
The selectable AC filter (smoothing mode) allows a more stable reading to be displayed when the input signal changes rapidly or contains a lot of noise.
Adjustable recording thresholds and Auto Hold by defining a percentage change for measurements at the start of a new event.

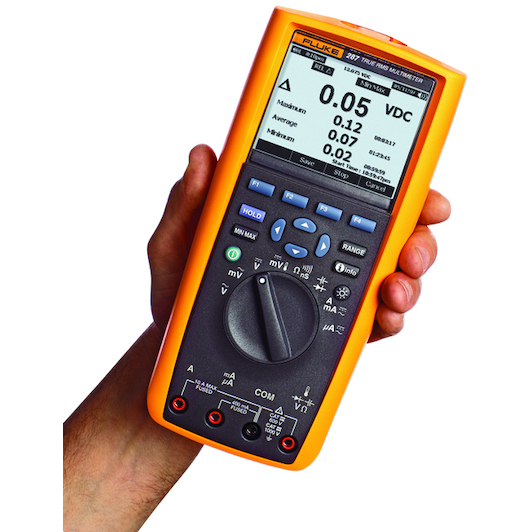

Large 1/4 VGA display up to 50,000 counts, with white backlight.
Multiple sets of measurement information can be displayed simultaneously.
Log function with extended memory for independent monitoring of signals for a defined period of time.
With the integrated TrendCapture function, you can view a graphical display of captured measurement values without a PC.
Store up to as many as 15,000 recorded events.
Further features
Internal help screens for measurement functions.
You can store and name measured values on site and recall them later.
Multilingual interface.
Multiple logging sessions possible without downloading.
DC base accuracy of 0.025%.
AC voltage bandwidth 100 kHz.
Real-time clock for automatic time stamping of stored measured values.
True-RMS AC voltage and current for accurate measurements for complex signals or non-linear loads.
AC bandwidth specified up to 100 kHz.
Measures up to 10 A (20 A for 30 seconds).
Capacitance range 100 mF.
Temperature function.
Relative mode for eliminating test lead resistance when measuring low-resistance or capacitance values.
Peak recording for recording transients at rates up to 250 ?s.
Premium measurement leads and crocodile clips included.
Banana plugs included.
With the FlukeView Forms software, you can document, store and analyse individual measured values or a series of measured values, then turn them into professional-looking documents.
With the optional magnetic hanging clip, you can hang the meter so you can easily view it while keeping your hands free for work.
