Achieve maximum productivity with the combination kit of the Fluke 289 and FlukeView Forms software.
The Fluke 289 with its built-in data logger and TrendCapture feature lets you detect hard-to-find, intermittent faults by monitoring certain equipment functions while performing other work in the meantime.

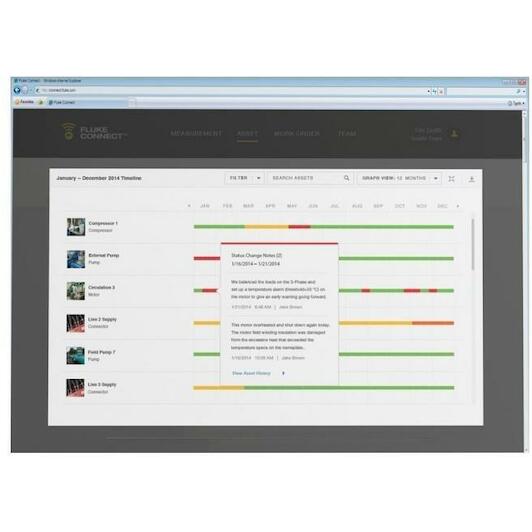

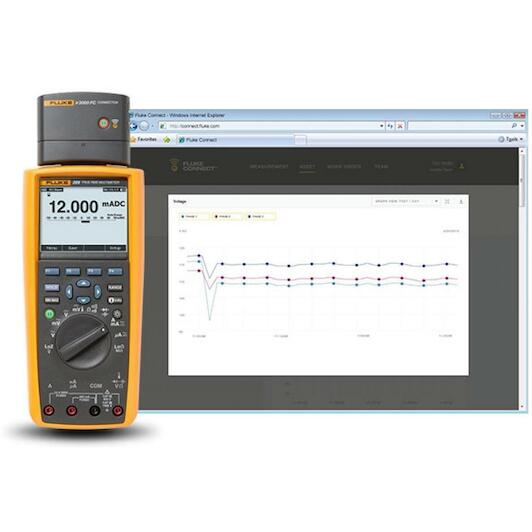

With the FlukeView Forms software, you can overlay data from six different meters or time periods to demonstrate cause-and-effect relationships or for condition monitoring purposes.
Turn your data into clear graphs and tables, for professional reporting or for analysing individual readings or series of readings.

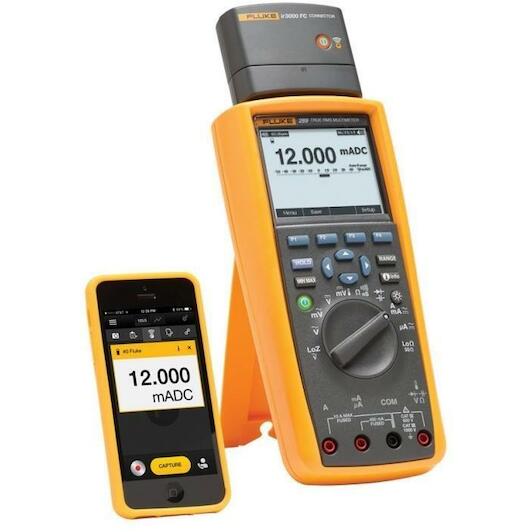

The 289 is compatible with the Fluke ir3000 FC infrared connector, so you can share live measurements on your iOS or Android device using the Fluke Connect Mobile App.
The 289/FVF combination kit offers you a practical and affordable option of performing predictive maintenance.
Key features:
Compatible with Fluke Connect Mobile App and all Fluke FC-enabled measuring instruments with optional ir3000 FC infrared connector (sold separately).
Instantly show your team what you see, with the ShareLive video call feature (Fluke Connect Mobile App and ir3000 FC wireless connector required).
TrendCapture graphically displays a logged data session to quickly determine if anomalies have occurred.
Zooming in on trends offers unprecedented possibilities for viewing and analysing TrendCapture data; up to 14 times zoom in.
The selectable AC filter (smoothing mode) allows a more stable reading to be displayed when the input signal changes rapidly or contains a lot of noise.
Adjustable recording thresholds and Auto Hold by defining a percentage change for measurements at the start of a new event.
Large dot matrix display, 1/4 VGA, up to 50,000 counts and with white backlight.
Log function with extended memory for independent monitoring of signals for a defined period of time.
With the integrated TrendCapture function, you can view a graphical display of recorded measurement values without a PC.
Store up to as many as 15,000 recorded events.
Multiple log sessions can be saved before downloading to a PC.
Two connections for 50-ohm range with 1 milliohm resolution and 10 mA source current.
Useful for measuring the resistance of motor windings and comparing differences in them or for measuring contact resistance.
Low-pass filter for accurate simultaneous voltage and frequency measurements in frequency-controlled drives and other devices that cause electrical disturbances.
LoZ Volts.
Low input impedance, prevents erroneous readings due to 'phantom voltage'.
Also recommended for testing for presence or absence of (mains) voltage.
Internal auxiliary screens for measurement functions.
Uncertain about a function? Go to that function and press the 'i' key.
Real-time clock for automatic timing of stored measurement values.
Relative mode for eliminating test lead resistance when measuring low-resistance or capacitance values.
True-RMS AC voltage and current for accurate measurements on non-linear signals.
Measures up to 10 A (20 A for 30 seconds).
Capacitance range 100 mF.
Peak recording for recording transients at speeds up to 250 ?s.

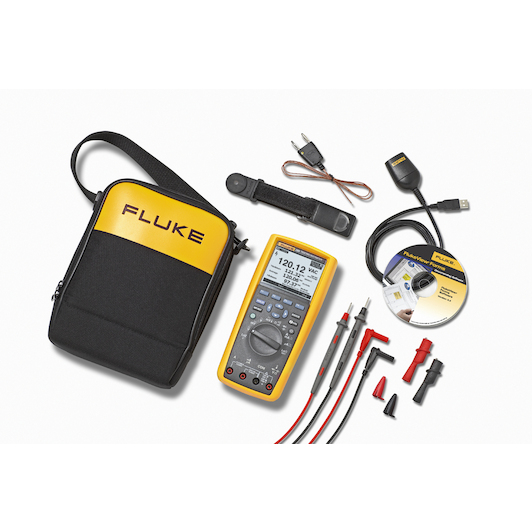

Premium measuring leads and crocodile clips included.
Banana plugs included.
Optional magnetic hanging clip for easy attachment and reading while leaving your hands free for other tasks.
FlukeView Forms software lets you document, store and analyse individual readings or a series of readings, then turn them into professional-looking documents.
