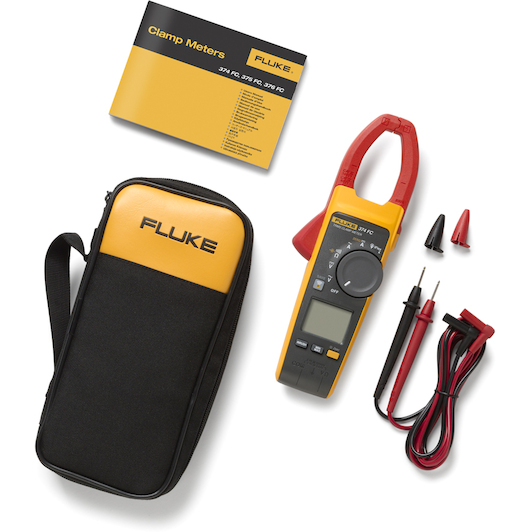

Scope of delivery
- Carrying case
- TL75 measuring leads
- Two AA alkaline batteries
- Laminated instruction card
- Safety data sheet
Product description

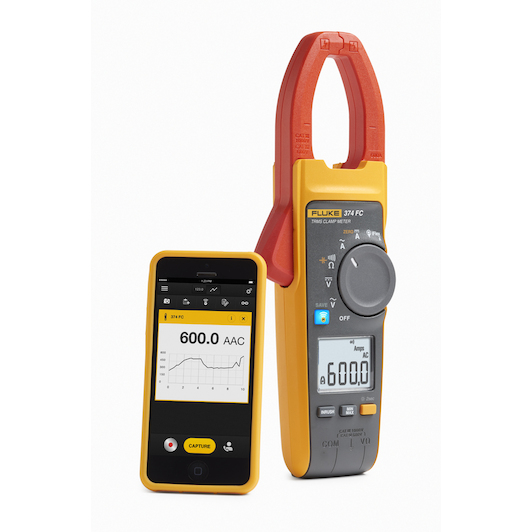

- Connect your meter to your smartphone, with Fluke Connect Measurements

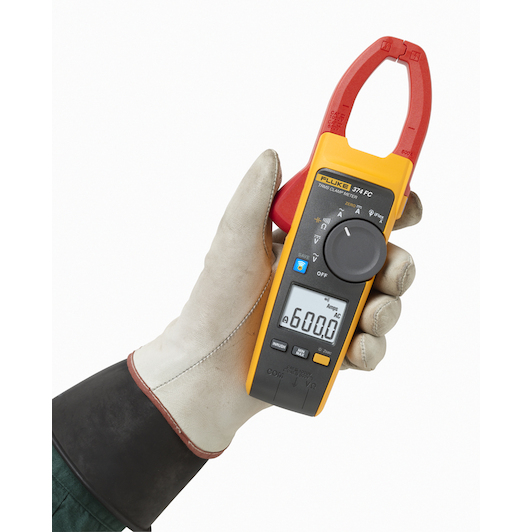

- Read read readings from a safe distance on your phone, while wearing less personal protective equipment and your meter bears all the risk
- Store results directly on your phone and in the cloud
- Create and share reports from location via email, or make real-time calls with the ShareLive video call feature
- Compatible with the iFlex flexible current clamp; use it to extend the measurement range up to 2500 A AC; the flexible current clamp provides access to thick conductors in tight spaces
- Suitable for the magnetic TPAK suspension strap
- Fluke proprietary inrush current measurement technology that filters noise from the circuit and records motor inrush current exactly as determined by the circuit protection.
- Safety class CAT IV 600 V, CAT III 1000 V
- Three-year warranty

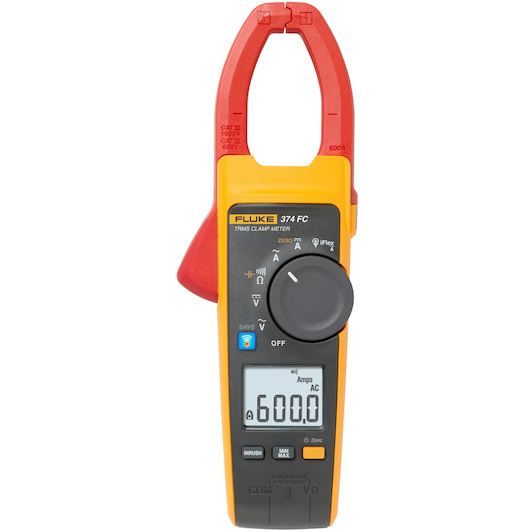

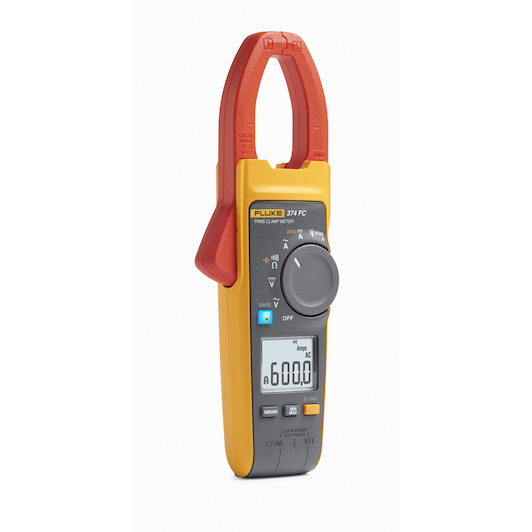

Key features
- 600 A AC and DC current measurement
- 2500 A AC current measurement with iFlex flexible current clamp (optional)
- 1000 V AC and DC voltage measurement
- True-RMS voltage and current for accurate measurements on non-linear signals
- Resistance measurement up to 6000 Ohm with through-bell test
- Min/Max/Average recording and inrush current measurement for automatic recording of variations
- 1000µF capacitance measurement
