Scope of delivery
- 1x set of AC72 crocodile clips
- 1x set of stackable measuring leads
- 1x set of TL 75 measuring leads
- User manual
Product description

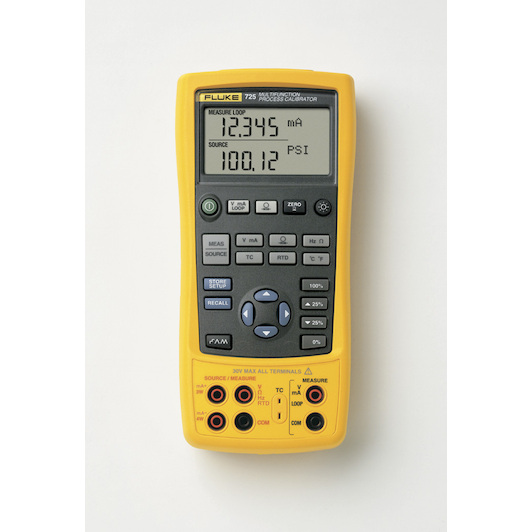

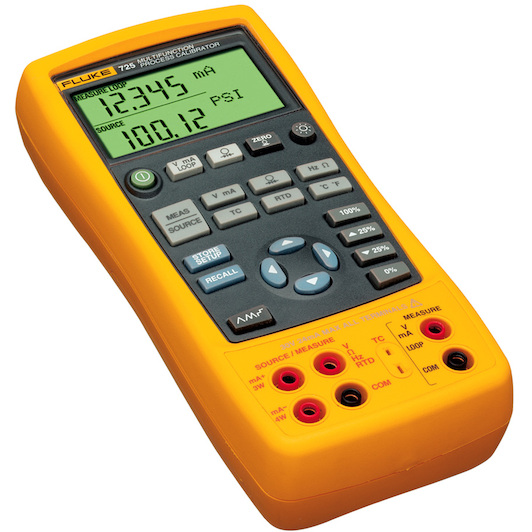

The Fluke 725 multifunction process calibrator is a powerful field calibrator that is easy to use. Its measurement and generation functions allow you to test and calibrate almost any process parameter.
- Easy to carry due to its compact, streamlined shape
- Robust, reliable construction to withstand field use
- Easy-to-read display for measurement and generation functions where you can view input and output signals simultaneously.
- Measures volts, mA, RTDs, thermocouples, frequency and ohms to test sensors and transmitters
- Generates/simulates volts, mA, thermocouples, RTDs, frequency, resistance and pressure to calibrate transmitters
- Measures/generates pressure using any of Fluke's 29 700Pxx pressure modules
- Delivers mA at simultaneous pressure measurements for performing control valve and I/P tests
- Frequency and CPM functions also enable flowmeter testing
- Performs linearity tests quickly with the automatic step and rise functions
- Supplies transmitters by loop feeding during measurement and measures mA simultaneously
- Handles fast pulsed RTD transmitters and PLCs, with pulses as short as 10 ms
- Backlight allows working in poor lighting conditions
- Large battery capacity: four AA batteries
- Battery cover for easy battery replacement
With the Fluke 725 multifunction process calibrator at hand, you can measure and calibrate virtually any process parameter. Measure and generate current (mA), voltage, temperature (RTDs and thermocouples), frequency, resistance and pressure, using optional pressure modules....
Do you need to calibrate transmitters? On the 725's split display, you can view input and output values simultaneously. For control valve and I/P tests, you can generate mA while measuring pressure. The 725 has automatic step and rise functions for remote testing, plus a function for quick linearity tests in 25% increments.
As soon as you pick it up, the Fluke 725 is already ready to use. Its simple controls, with no menus, make it easy to use. Thanks to its memory functions, it can be set up quickly. And its robust design means it can work as hard as you do.
