Scope of delivery

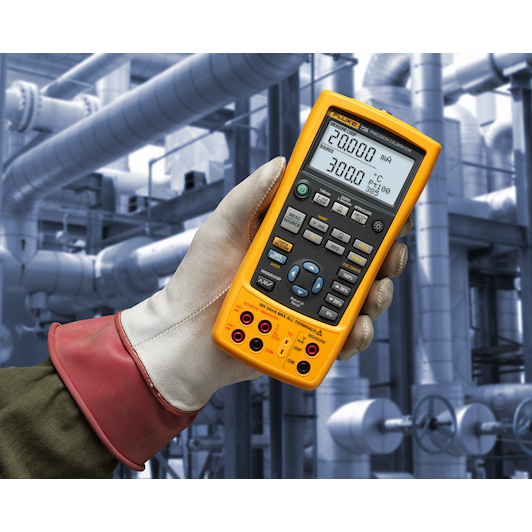

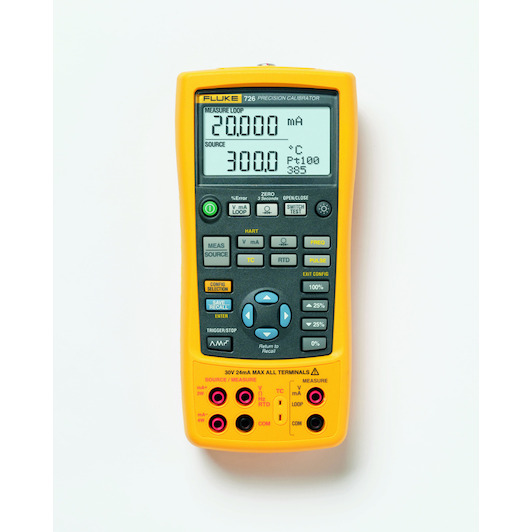

- Multifunctional precision process calibrator
- Set of AC72 crocodile clips
- Set of stackable measuring leads
- Set of TL 75 measuring leads
- Operating manual
Product description
- More accurate measurement and calibration source performance, to the nearest 0.01%.
- Two separate channels; measure, generate and display process signals simultaneously.
- Measure volts, mA, RTDs, thermocouples, frequency and ohms to test sensors and transmitters
- Generate/simulate volts, mA, thermocouples, RTDs, frequency and pressure to calibrate transmitters
- Measure or generate pressure using one of 29 Fluke 700Pxx pressure modules (pressure pump required)
- Generate mA at simultaneous pressure measurements to perform control valve and I/P tests
- Integrated pressure switch test lets you record switch set, reset and dead zone values
- Memory storage for up to 8 calibration results, recall of locally measured and stored calibration data for later analysis
- Error rate calculation of transmitters, interpreting calibration results without calculator
- Perform linearity tests quickly with the automatic step and rise functions
- Power transmitters during tests with 24 V loop power supply and simultaneous mA measurement
- Store frequently used test settings for later use
- Frequency totaliser and frequency pulse train source mode for comprehensive testing of flowmeters.
- In HART mode, a 250-ohm resistor is interleaved when measuring and generating mA for compatibility with HART instrumentation.
- Proprietary RTD curves add calibration constants for certified RTD probes for extended temperature measurement.
- Newly designed input voltage protection for even greater reliability
Key features according to our expert
-
Measurement voltage: Yes
-
Current measurement: Yes
-
Digital: Yes
-
Low battery message: Yes
-
Max. current AC/DC: 24 mA
-
Max. resistance: 4 kOhm
-
With current clamp: No
-
Battery type: AA
-
Max. voltage AC/DC: 30 V
-
Measurement resistance: Yes
-
Measurement frequency: Yes
-
Measurement of noise: No
-
Measurement temperature: Yes
-
Measurement of electrical capacity: No
-
Max. frequency: 15 kHz
Specifications / All features
-
Brand:
FLUKE
-
03395551
-
EAN:
0095969293273
-
Supplier number:
FLUKE 2452080
- Measurement voltage
- Yes
- Current measurement
- Yes
- Digital
- Yes
- Low battery message
- Yes
- Max. current ac/dc
- 24 mA
- Max. resistance
- 4 kOhm
- With current clamp
- No
- Battery type
- AA
- Max. voltage ac/dc
- 30 V
- Measurement resistance
- Yes
- Measurement frequency
- Yes
- Measurement of noise
- No
- Measurement temperature
- Yes
- Measurement of electrical capacity
- No
- Max. frequency
- 15 kHz
