Scope of delivery
- Fluke 754 documenting process calibrator-HART
- BC7240 battery charger
- BP7240 Li-ion battery set
- Trial subscription to DPCtrack2 calibration management software (download)
- (3 sets) stackable test leads
- (3 sets) TP220 probes
- (2 sets) AC280 SureGrip Hook Clamps
- (3 sets) AC175 crocodile clips
- (1) mini 10 cm stackable cord
- 754 suspension strap

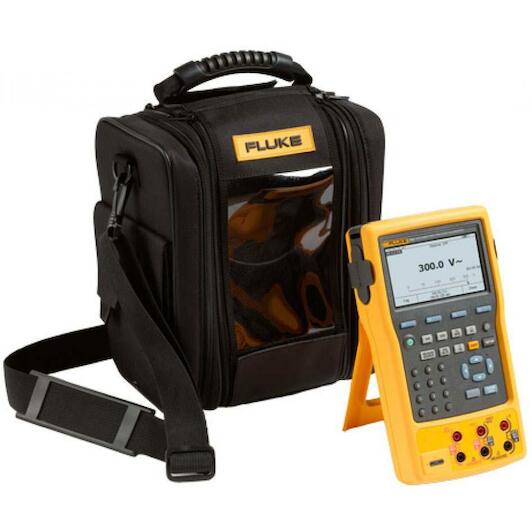

- C799 soft carrying case with shoulder strap
- USB to mini USB communication cable
- 754 HART communication cable
- Traceable calibration certificate
- Software licence on CD-ROM
- Quick guide
Product description
- Complete pressure, temperature and mA loop calibrator
- Troubleshoot and calibrate intelligent digital HART transmitters
- Create calibration procedures and document results automatically
- Connect to calibration management software
Portable multifunction calibrator simplifies calibration tasks

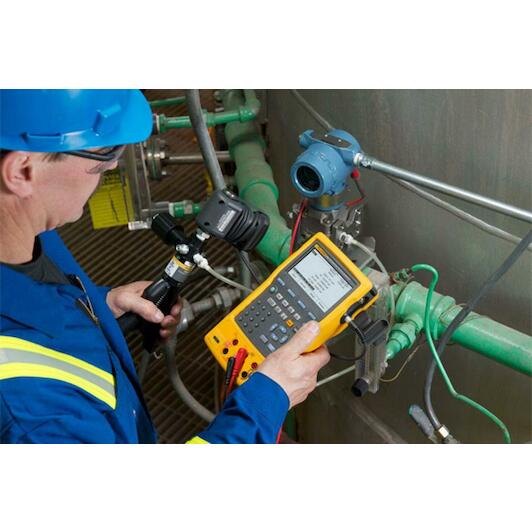

Whether you want to calibrate instruments, troubleshoot a problem or perform routine maintenance, the Fluke 754 with HART communication can help you get the job done faster. It performs many different tasks quickly and is the only process calibrator you need to carry with you. This rugged, reliable calibrator with integrated communication is ideal for calibrating, maintaining and re-measuring intelligent HART transmitters and other instruments.
Measuring and generating capabilities
- AC/DC voltage
- mA loop with 24 V loop supply
- Pressure
- Thermocouples and RTDs
- Frequency
- Resistance
Enhanced process calibration operation

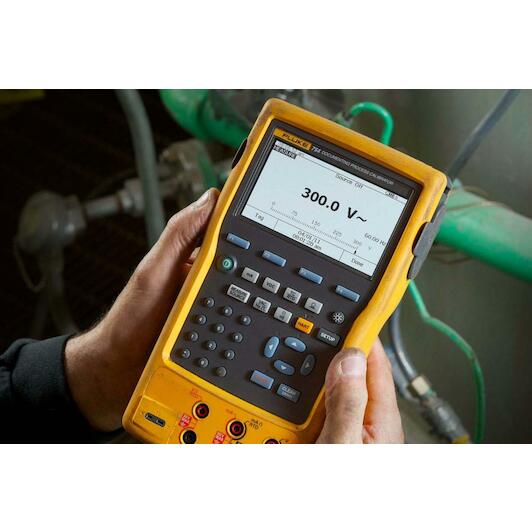

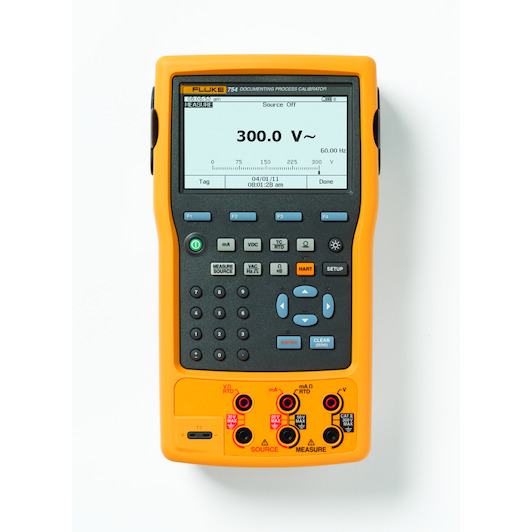

The bright white dual display shows both generated and measured parameters simultaneously. The rechargeable Li-ion battery provides up to 10 hours of continuous operation, allowing you to perform multiple tasks in succession without having to stop, and can also be connected directly to AC mains power if needed. Finally, you can communicate directly with intelligent digital HART transmitters via the mA measurement inputs for seamless calibration with fewer connections.
Do more with less
The 754 does the work of several instruments It generates, simulates and measures pressure, temperature and electrical signals in one rugged, pocket-sized device. Its powerful built-in HART interface can do almost all the day-to-day tasks you now perform with a separate digital communicator. It can quickly process pulsed RTD transmitters and PLCs, with pulses as short as 1 ms. The 754 also measures/generates pressure using all Fluke 750P series pressure modules as reference and includes many additional features such as:
- Custom automatic step and rise function
- Proprietary measurement units
- User-entered values during the test
- Testing of one- and two-point switches
- Root pull function for differential pressure-flow measurement
- Programmable measuring delay
Download of procedures, lists and instructions
The 754 is a multifunctional documenting calibrator that you can use to download software-created procedures, lists and instructions, or upload data for printing, archiving or analysis. The tool can store downloaded procedures and calibration data for up to a week and is compatible with many different device management software. Users can also create and run automated pre- or post-procedures to meet certain quality programmes or standards, and record and document the results.
For documentation purposes, the 754 automates calibration procedures and records your data. And of course, it helps you comply with strict standards such as ISO 9000, FDA, EPA and OSHA. In addition, the graphic display, Li-ion battery for longer battery life, USB port and new accessories help you work smarter and faster.
