Safe and precise high-voltage testing
- Fluke 80K-40 voltage probe: You extend the measuring capacity of your voltmeter up to 40 kV DC or peak AC for specialized diagnostics.
- Accurate results every time: The 1000:1 division ratio and 1000 MΩ input resistance minimize circuit loading to ensure precise and dependable readings.
- Protected during maintenance work: The durable insulated body shields you effectively when servicing energy-limited equipment such as copiers and televisions.

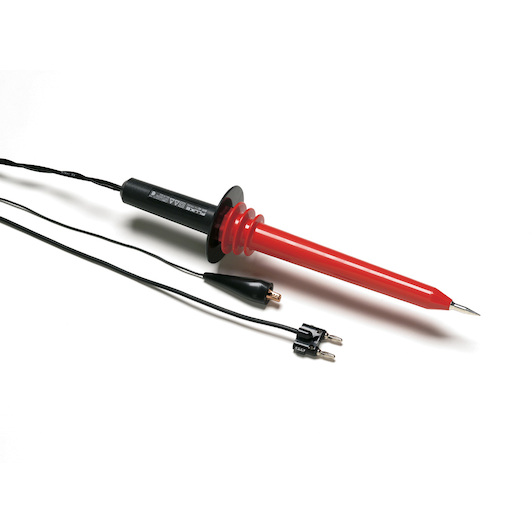

With the Fluke 80K-40 high-voltage probe, you safely extend the measurement range of your multimeter up to 40 kV DC or peak AC. The 1000:1 division ratio and high 1000 mω input impedance minimize circuit loading to deliver exceptionally accurate readings. Its durable, insulated body shields you effectively during diagnostic tests and maintenance on low-energy equipment such as photocopiers, laser printers, crt displays, and electronic air cleaners. Designed to connect easily to multimeters with standard 4 mm double banana inputs and a 10 mω input impedance, it gives you full control and precision during specialized high-voltage measurements.
Product description:
- The 80K-40 is a high voltage measurement probe designed to extend the measurement capability of an AC/DC voltage meter to 40,000 volts peak AC or DC overvoltage category I.
- This means that the probe can only be used to make measurements on circuits with limited energy in the equipment.
- Examples include high voltage in televisions and photocopiers.
- DO NOT use this probe to measure high voltage at power distribution devices.
- The probe offers high accuracy when used with a voltage meter with 10 Megohm input impedance.
Key features
- A high voltage measuring probe that allows a multimeter to measure voltages up to 40,000 V.
- For low-energy applications only
- One year warranty
