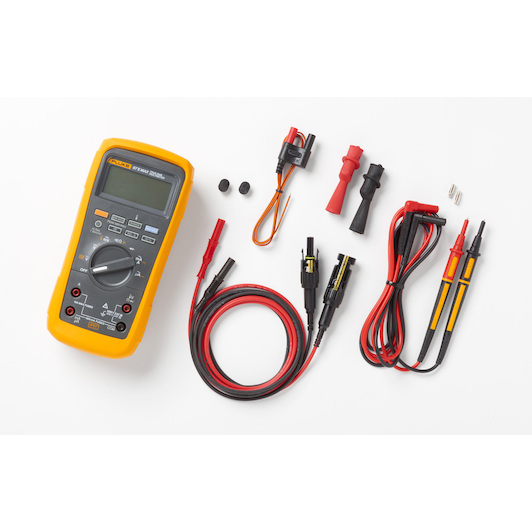

Scope of delivery
- TL175 TwistGuard® measuring leads
- AC175 Crocodile clips
- 80BK-A thermocouple
- Yellow snap-on holster with storage compartment for test leads
- Three AA batteries (installed)

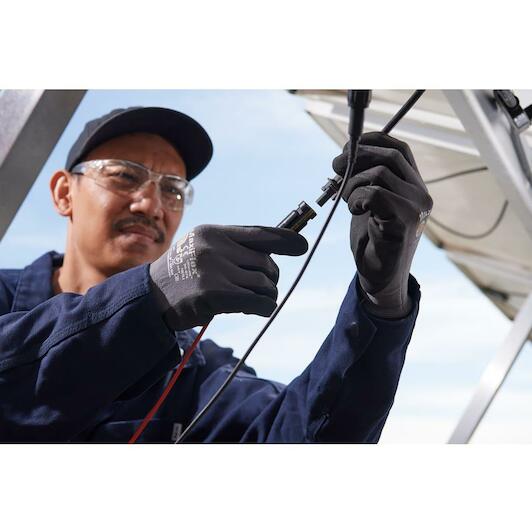

- Pomona PVLEAD1 MC4 to 4 mm test lead kit
Product description

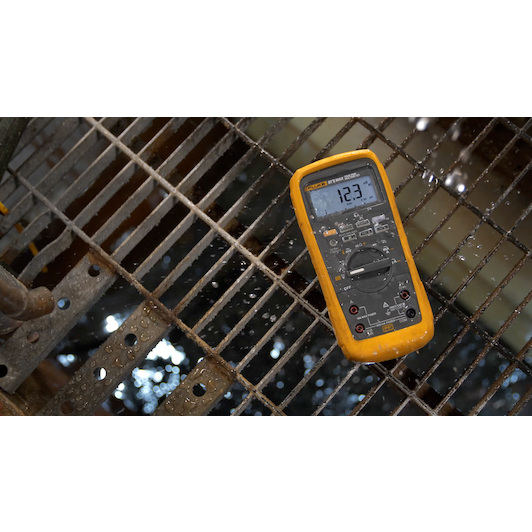

- Withstands falls of up to 4 metres (13 feet) with an industrial housing and holster

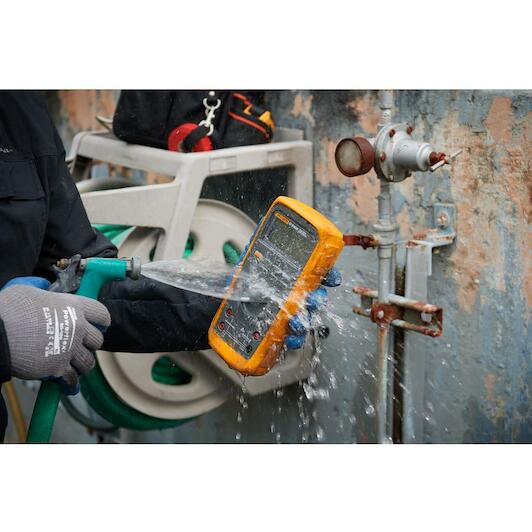

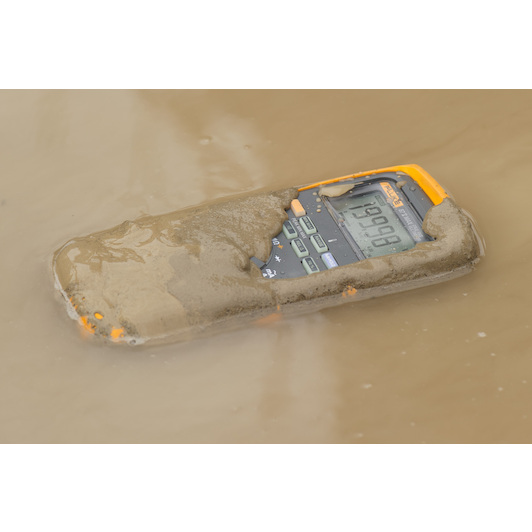

- Waterproof, dustproof IP67 housing for the most extreme work sites
- Premium TL175 TwistGuard measurement leads
- Double 87V battery life (up to 800 hours); backlit keys for dark environments
- True RMS AC voltage and current for accurate measurements on non-linear signals
- Measures up to 1000 V AC and DC
- Measures up to 10 A (20 A for 30 seconds)
- Frequency up to 200 kHz
- A built-in thermometer makes it easy to take temperature measurements without the need to carry a separate instrument
- Min/Max/Gem. recording, plus 250 µs peak min/max interval to capture variations automatically
- Unique function for accurate voltage and frequency measurements on frequency controlled drives (VFDs) and other devices that generate electrical noise

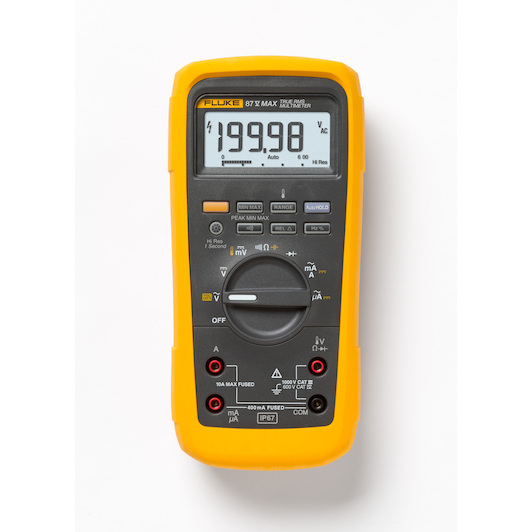

- Large display figures, two-level bright white backlight and backlit keys for improved visibility
- High-resolution display mode of 19,999 counts
Key features according to our expert
-
Max. voltage AC/DC: 1000 V
-
Measurement temperature: Yes
-
Digital: Yes
-
Battery type: AA
-
Low battery message: Yes
-
Automatic shut-off: Yes
-
With current clamp: No
-
Max. current AC/DC: 10 A
-
Continuity test: Yes
-
Measurement Lo-Z: No
-
Diode test: Yes
-
Measurement of noise: No
-
Max. electrical capacity: 10000 µF
-
Measurement of electrical capacity: Yes
-
Max. frequency: 200 kHz
-
Max. resistance: 50 MOhm
-
Measurement voltage: Yes
-
Current measurement: Yes
-
Measurement resistance: Yes
-
Measurement frequency: Yes
Specifications / All features
-
Brand:
FLUKE
-
03252447
-
EAN:
0195112041239
-
Supplier number:
FLUKE 5337412
- Max. voltage ac/dc
- 1000 V
- Measurement temperature
- Yes
- Digital
- Yes
- Battery type
- AA
- Low battery message
- Yes
- Automatic shut-off
- Yes
- With current clamp
- No
- Max. current ac/dc
- 10 A
- Continuity test
- Yes
- Measurement lo-z
- No
- Diode test
- Yes
- Measurement of noise
- No
- Max. electrical capacity
- 10000 µF
- Measurement of electrical capacity
- Yes
- Max. frequency
- 200 kHz
- Max. resistance
- 50 MOhm
- Measurement voltage
- Yes
- Current measurement
- Yes
- Measurement resistance
- Yes
- Measurement frequency
- Yes
