Scope of delivery
- True-RMS AC/DC power module

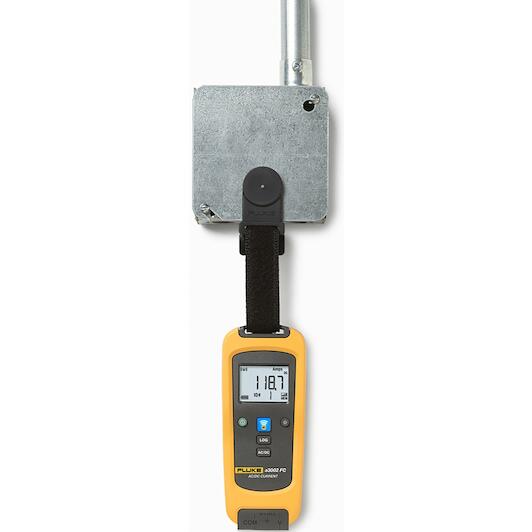

- Magnetic suspension strap
Key features:

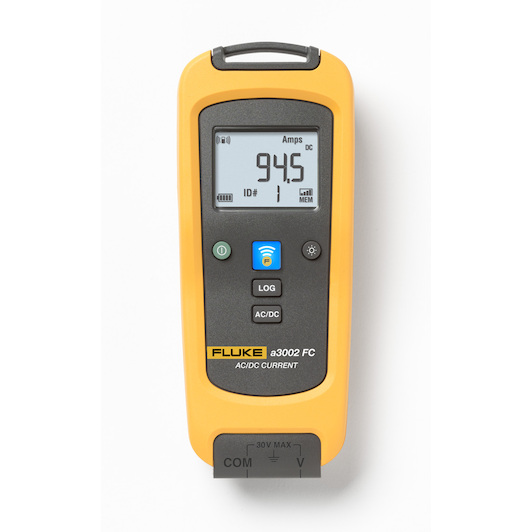

- The Fluke a3002 FC wireless AC/DC current clamp module is designed for use with the i410 or i1010 AC/DC current clamps (not included with this module).
- The a3002 FC AC/DC current module wirelessly transmits readings to other Fluke Connect-enabled main units, as shown below:
- Fluke 3000 FC DMM
- Fluke Ti200/300/400 thermal imager
- PC via optional pc3000 FC adapter
- Fluke Connect Mobile App
- Some of the Key Features: of the Fluke a3002 FC:
- Measurement up to 400 A AC or 400 A DC with the i410 (sold separately)
- Measurement up to 600 A AC or 1000 A DC with the i1010 (sold separately)
- Use as a stand-alone meter or as part of the system
- Log function to record and store up to 65,000 measured values
Product description:
- All the facts, right on site.
- The Fluke A3002 FC wireless AC power module is part of a series of wireless measurement tools that allow you to share data using the Fluke Connect app with ShareLive video call function.
- Fluke Connect wireless measuring instruments ensure that instruments and not your body are near live electrical distributors.
- It's simple.
- Connect the A3002 FC current module, or one of the other Fluke Connect remote modules, and read results at a safe distance on the Fluke Connect wireless multimeter or a portable computer.
- The Fluke Connect measuring instruments can send measurement data to your smartphone, so you can store readings on it and share them with your team on site, anytime, anywhere.
Detect intermittent electrical faults without getting stuck
- Timing is all-important when trying to detect an intermittent problem, and the hard part is that the problem doesn't always occur when you have connected your meter.
- We've solved that problem with Fluke Connect - leave your remote modules plugged in to log readings and leave the site to tackle other problems.
- You can then download the data for further analysis.
Work safely near electrical distributors with less personal protective equipment
- Personal protective equipment can save your life, but they are bulky, hot and difficult to work in.
- With Fluke Connect, there is no need to work in front of live open distribution panels or moving/hazardous machinery.
- Imagine having access to live readings without being exposed to the live distribution panel.
- It is simple.
- Simply de-energise the electrical cabinet, open the distribution panel while wearing personal protective equipment and connect one or more A3002 FC modules.
- Close the cabinet, turn the power back on and let the Fluke Connect system do its job, while reducing the risk of arc discharge by staying away from dangerous measurement situations.
Faster and cheaper 3-phase testing
- If your electrical cabinet is de-energised, attach a Fluke Connect current clamp to each phase.
- Close the cabinet, switch the power back on and read the measured values.
- What previously took hours in total and required expensive equipment can be done in minutes with an affordable Fluke Connect wireless system.
- Perform 3-phase measurements in 1/3 the time.
- Add your laptop and go from logging immediately to analysis and diagnosis.
- You can solve problems faster by seeing live measurements from multiple measurement points on a single screen.
- With the A3002 FC current modules, the following is possible:
- Make 3-phase measurements in 1/3 the time of previous methods.

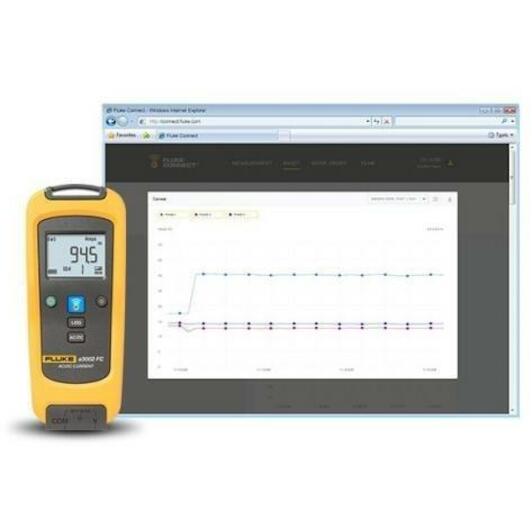

- Send data to your laptop and move immediately from logging to analysis and diagnosis.
- Log data over an extended period of time to monitor hourly, shift or week-long changes in circuit load.
- Using the Fluke Connect wireless USB adapter to collect logged data from remote modules by walking past an operating module and downloading logged data.

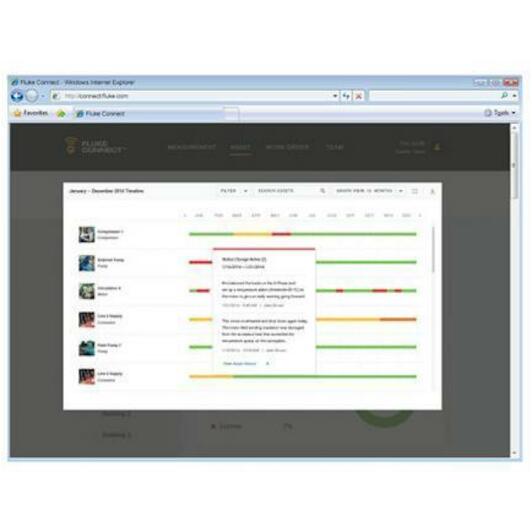

- Perform analyses with your PC and share results using Fluke Cloud storage and the ShareLive video call function.
- View data or graphs to get input from team members.
