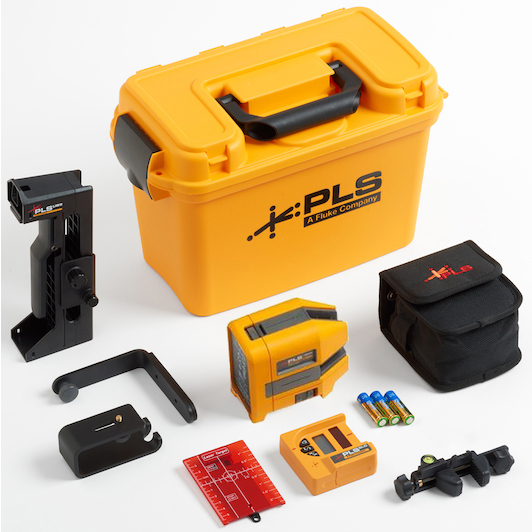

Scope of delivery

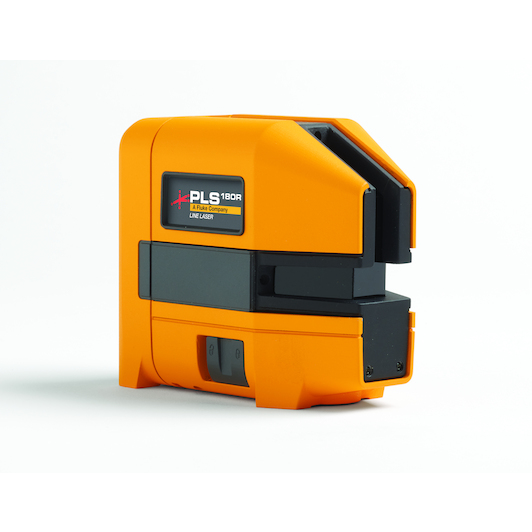

- PLS 180R laser spirit level
- PLS canvas carrying case
- PLS BP5 alkaline battery set
- Safety data sheet and brief instruction manual
- PLS UB9 universal ceiling and wall bracket
- PLS FS floor stand
- PLS MLB magnetic L bracket
- PLS RRT4 red reflective target
- PLS SLD-RED red laser line detector
- PLS 60520 SLD clamp
- PLS C18 toolbox
Product description
- Accuracy: <=1/8 inch at 30 feet (<=3 mm at 10 m)
- Red laser beam
- Horizontal range angle: 180°
- Vertical range angle: 130°
- Durable pendulum lock
- Protection class IP54 to limit the ingress of dust and water, for years of use on the work site.
Key features according to our expert
-
Laser type: Cross line laser
-
Max. range with receiver: 60 m
-
Colour (laser beams): Red
-
Accuracy: 0,3 mm/m
-
Laser class: Class 2
-
Protection class IP: IP54
-
Supplied in: Case
-
Type of system case: Not applicable
-
Weight: 0,6 kg
-
Max. range: 15 m
-
Self-levelling range: 4,0000 °
-
Projection (laser beams): 1 horizontal, 1 vertical
-
Tripod thread: 1/4"
-
With tripod: No
Specifications / All features
-
Brand:
FLUKE
-
08107062
-
EAN:
0095969974516
-
Supplier number:
FLUKE 5195857
- Laser type
- Cross line laser
- Max. range with receiver
- 60 m
- Colour (laser beams)
- Red
- Accuracy
- 0,3 mm/m
- Laser class
- Class 2
- Protection class ip
- IP54
- Supplied in
- Case
- Type of system case
- Not applicable
- Weight
- 0,6 kg
- Max. range
- 15 m
- Self-levelling range
- 4,0000 °
- Projection (laser beams)
- 1 horizontal, 1 vertical
- Tripod thread
- 1/4"
- With tripod
- No
