FLUKE

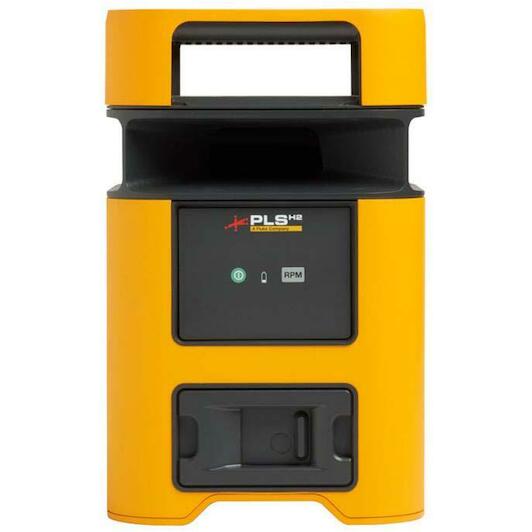

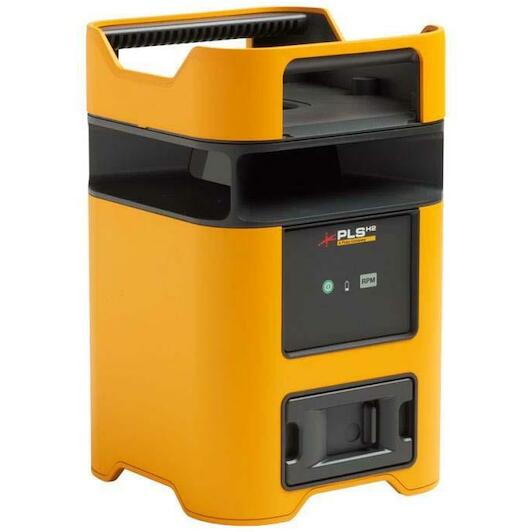

FLUKE PLS H2 single rotary laser spirit level with red line - 5022470

This article is not available

Scope of delivery

  • PLS H2 rotary laser spirit level
  • PLS BP10 alkaline battery compartment with 4x D batteries
  • safety data sheet and brief instructions

Product description

  • Accuracy: <= 2.2 mm at 30 m (<= 3/32 inch at 100 feet)
  • Operating range: <= 30 m (100 feet)
  • Working range with XLD: <= 300 m (1000 feet)
  • Tested to withstand a 1-metre drop
  • IP67-certified, dust-protected and can be submerged in 1 m (or 3.3 ft) deep water for 30 minutes

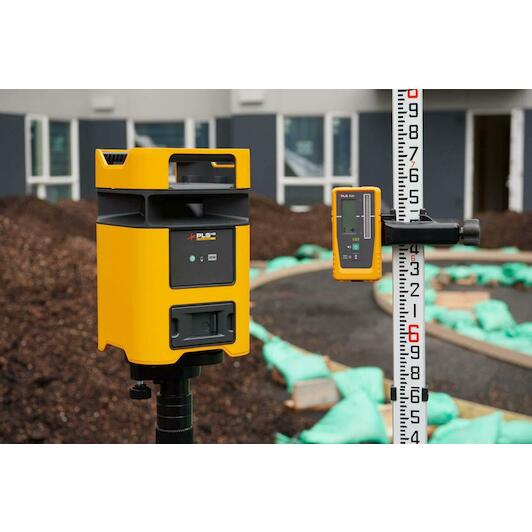

The PLS H2 rotating laser is designed for construction sites, offering robust ergonomic design and simplified operation for that purpose. The H2 model is a horizontal-only rotating laser that offers simple one-button operation. The H2 rotating laser is ideal for general contractors, electricians, plumbers and landscapers, for both indoor and outdoor applications.

These professional instruments offer the accuracy and durability you can expect from PLS

  • The H2 is a horizontal-rotating laser only. User-friendly and fully self-levelling, the H2 is designed for plotting interiors and exteriors.
  • Operated via just one button, this fully automated unit is ideal for large outdoor expansion applications, including concrete forms, slabs and other horizontal levelling applications.
Key features according to our expert
  • Laser type: Rotating laser
  • Max. range with receiver: 2x 150 m
  • Colour (laser beams): Red
  • Accuracy: 0,07 mm/m
  • Laser class: Class 2
  • Protection class IP: IP67
  • Supplied in: Case
  • Type of system case: Not applicable
  • Weight: 2,89 kg
  • Max. range: 2x 15 m
  • Self-levelling range: 5,0000 °
  • Projection (laser beams): circle horizontal
  • Tripod thread: 5/8"
  • With tripod: No
Specifications / All features
  • Brand: FLUKE
  • EAN: 0095969878418
  • Supplier number: FLUKE 5022470
Laser type
Rotating laser
Max. range with receiver
2x 150 m
Colour (laser beams)
Red
Accuracy
0,07 mm/m
Laser class
Class 2
Protection class ip
IP67
Supplied in
Case
Type of system case
Not applicable
Weight
2,89 kg
Max. range
2x 15 m
Self-levelling range
5,0000 °
Projection (laser beams)
circle horizontal
Tripod thread
5/8"
With tripod
No
