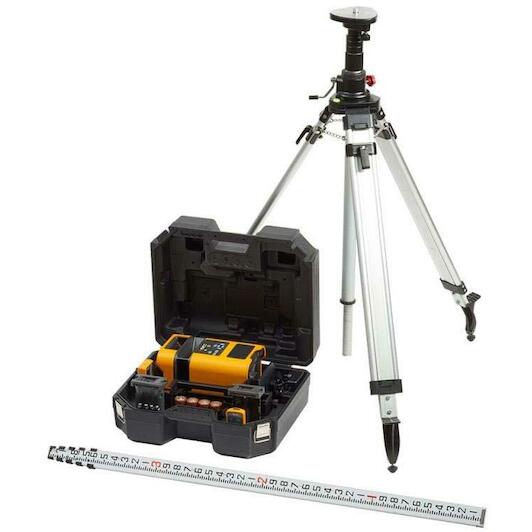

Scope of delivery
- PLS HV2R Rotating Laser Spirit Level
- PLS BP10 Alkaline battery case with 4x D batteries
- PLS RBP10 NiMH rechargeable battery holder with BC20 universal charging cable
- PLS RC2 Remote control
- PLS XLD Rotating Laser Detector
- PLS XLD Clamp
- PLS WCB10 Rotating wall and ceiling mount
- RRT4 Red Reflective Target
- PLS TPOD500 Elevator Tripod
- PLS GR16 Grade Rod
- Safety sheet and quick reference guide
Product description
- Accuracy: <= 2.2 mm at 30 m (<= 3/32 inch at 100 ft)
- Laser axis: Red horizontally and vertically
- Working range: <=30 m (100 feet)
- Working range with XLD: <= 300 m (1000 feet)
- Tested to withstand a 1-metre drop
- IP67-certified, dust-protected and can be submerged in 1 m (or 3.3 ft) deep water for 30 minutes

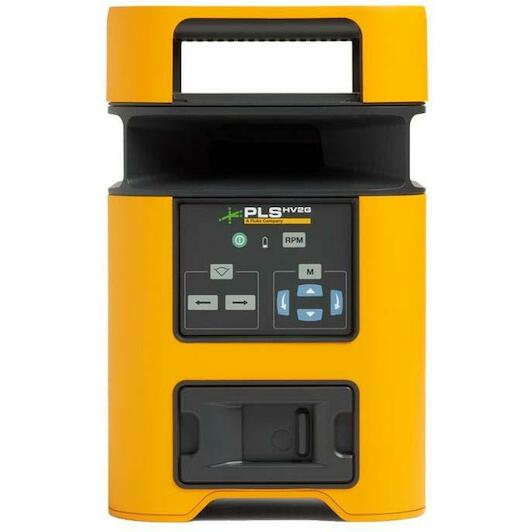

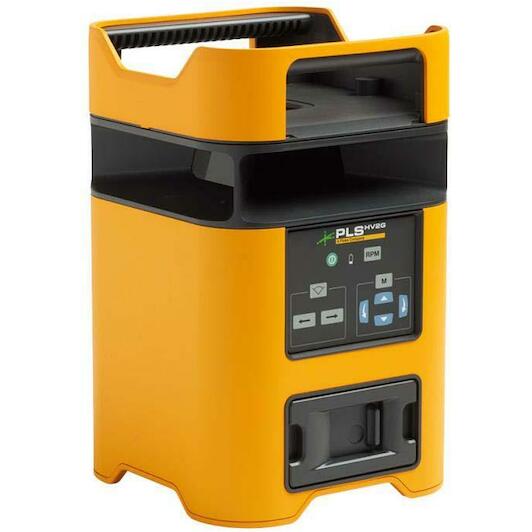

The PLS HV2R red-beam rotating lasers are designed for construction sites, offering robust ergonomic design and simplified controls. The HV2R emits a laser line in the horizontal or vertical plane. The HV2R rotating lasers also emit a point from above when placed in the vertical position. The HV2R lasers are ideal for general contractors, electricians, plumbers and landscapers, for both indoor and outdoor applications.
These professional instruments offer the accuracy and durability you can expect from PLS

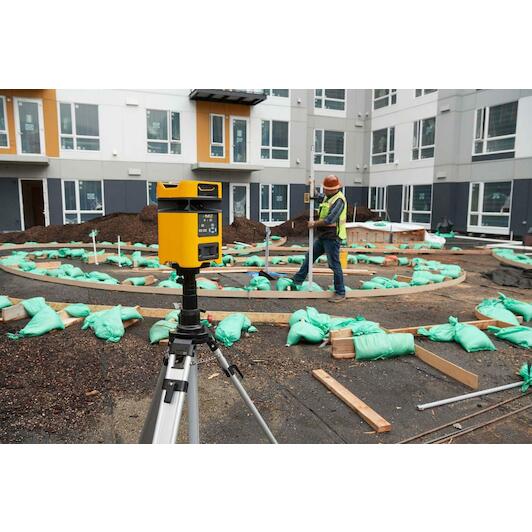

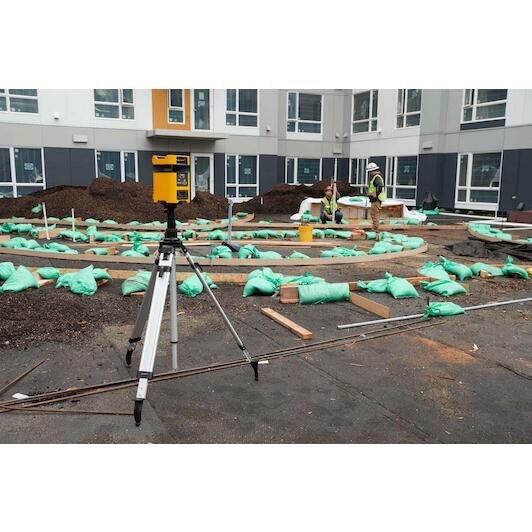

- The HV2R rotary laser spirit level emits a self-levelling horizontal laser plane and can be used in the vertical position to emit a vertical laser plane. Applications include setting foundations and floors, pouring concrete, laying out terraces with plasterboard, contouring and installing suspended ceilings.
- The HV2R comes with a metal ceiling and wall bracket for plotting and installation of large suspended ceilings
