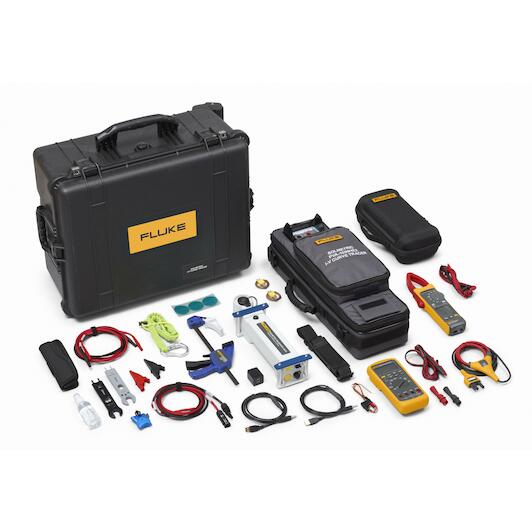

Scope of delivery
PVA-1500HE2:
- PVA-1500 V device
- SolSensor and current clamp
- Measurement cable with alligator clips
- MC4 disconnect device
- Chargers
- 2x thermocouples and self-adhesive discs
- Cleaning agents for sensor
- Transport case
- Available for free download: PVA application and data analysis tool
393 FC:
- 393 FC CAT III 1500 V TRMS current clamp
- Test leads, safety specification CAT III 1500 V, angled plugs, with safety caps
- iFlex 18-inch flexible current clamp
- TPAK magnetic suspension strap
- Premium carrying case
87V:
- 87V industrial multimeter
- TL75 measuring leads (TL175 Eur)
- AC 175 crocodile clips
- Holster with tilt pocket for test leads
- 80BK temperature measuring probe
- 9 V battery (installed)
Product description
This comprehensive tool kit includes the PVA-1500HE2 I-V curvetracer, 393 FC solar current clamp and 87V digital multimeter, providing a complete solution for solar system diagnostics and maintenance. The PVA-1500HE2 offers a range of advanced features, including the ability to process large amounts of I-V curvetracer measurement data. This provides fast and detailed performance data. The intuitive user interface allows easy navigation and real-time analysis, so that potential problems can be identified immediately. The 393 FC solar current clamp enables accurate measurement of DC current and voltage, facilitating performance testing and troubleshooting of solar panels and inverters. In addition, the 87V digital multimeter provides reliable measurements of AC/DC voltage, current, resistance and capacitance, essential for verifying system integrity and diagnosing electrical faults. With this tool kit, solar professionals can ensure the efficiency and reliability of solar installations with ease, from commissioning and routine maintenance to troubleshooting and performance optimisation.
The 393 FC is an FC CAT III 1500 V True-RMS current clamp is designed for solar photovoltaic (PV) technicians and maintenance professionals working in high DC voltage environments. Electrical testing and troubleshooting at solar PV sites with the 393 FC include:
- Measuring current and voltage
- Performing continuity and resistance tests
- Performing inverter efficiency tests
- Diagnosing problems such as short circuits
- Perform preventive maintenance to identify and address potential problems early on
The 87V industrial multimeter is the ideal electrical troubleshooting solution for solar inverters, combiner boxes and battery storage systems. Electrical testing and troubleshooting at solar energy sites with the 87V include:
- Measuring current and voltage
- identifying problems with connections and components with continuity and resistance tests
- identifying faulty diodes affecting system performance
- testing capacitors in inverters and power equipment
- monitoring the temperature of components for safety
- Diagnose problems such as short circuits
- Perform preventive maintenance to identify and address potential problems early on
Key features PVA-1500HE2
- Measures and displays I-V curves up to 1500 V and 30 A, even on high-efficiency modules
- Advanced built-in PV model provides instant monitoring of PV performance
- Wireless interfaces for faster installation, safer working environment and freedom of movement during PV troubleshooting
- Automates data management, analysis and reporting
- Validate voltage and current of individual panels or a series of panels in a PV array
Key features 393 FC
- Measure safely with a current clamp that meets safety specification CAT III 1500 V
- Thin jaws for access to cables in crowded combiner boxes
- Rugged and IP54 rated for outdoor use
- Work efficiently with DC power measurement, audio polarity and visual continuity
Key features 87V
- A unique feature for accurate voltage and frequency measurements at AC drives and other equipment causing electrical disturbances (87V).
- A built-in thermometer makes it easy to take temperature measurements without having to carry a separate instrument (87V).
- Optional magnetic hanging clip for easy installation and reading while leaving your hands free for other tasks.
- With its large-digit display and bright backlight with two levels of illumination, the 80 Series V is significantly easier to read than older models.
Key features 1587 FC
- PI/DAR measurements with TrendIt graphs
- Memory storage via the Fluke Connect Measurements app
- Temperature compensation via the Fluke Connect Measurements app
- Low-pass filter for frequency-controlled drives, for accurate measurements on motor drives
- Insulation test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
- Insulation test: 0.01 MOhm to 2.0 GOhm
- Automatic discharge of capacitive voltages
- Smoothed reading of insulation test values
- Frequency
- Capacitance
- Diode test
- Temperature
- Min/Max
- AC/DC voltage
- DC in millivolts
- AC/DC in milliamps
- Resistance (0.1 Ohm to 50 MOhm)
- Transit
- Three-year warranty
- External probe, test leads, alligator clips
- Thermocouple type K
- Automatic switch-off
