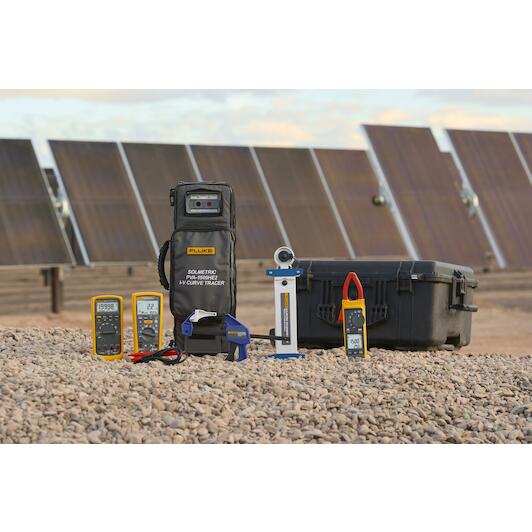

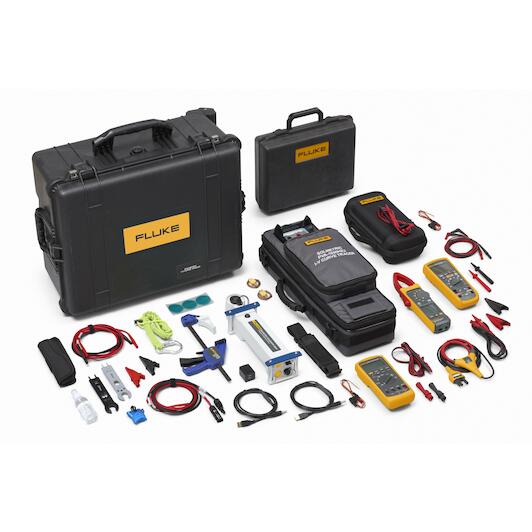

Scope of delivery
PVA-1500HE2
- PVA-1500 V device

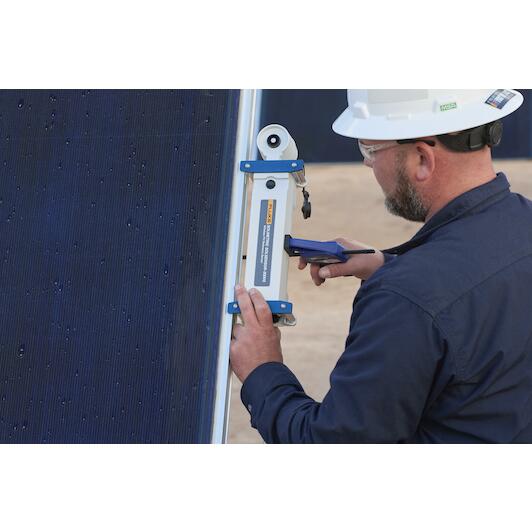

- SolSensor and current clamp
- Measurement cable with alligator clips
- MC4 disconnector
- Chargers
- 2x thermocouples and self-adhesive discs
- Cleaning agent for sensor
- Transport case (included with the PVA-1500HE2)
- Available for free download: PVA application and data analysis tool
393 FC
- 393 FC CAT III 1500 V TRMS current clamp
- Test leads, safety specification CAT III 1500 V, angled plugs, with safety caps
- iFlex 18-inch flexible current clamp
- TPAK magnetic suspension strap
- Premium carrying case
87V
- 87V industrial multimeter
- TL75 measuring leads (TL175 Eur)
- AC 175 crocodile clips
- Holster with tilt pocket for test leads
- 80BK temperature measuring probe
- 9 V battery (installed)
1587 FC
- 1587 FC insulation multimeter
- Remote probe
- Measurement leads
- Crocodile clips
- Thermocouple type K
- Soft case
Product description PVA-1500HE2
- Measures and displays I-V curves up to 1500 V and 30 A, also on high-efficiency modules
- Advanced built-in PV model provides instant monitoring of PV performance
- Sweep-to-sweep delay of 9 seconds to measure 3.5 MW within 1 hour
- Uninterrupted measurements even in hot environments
- Automates data management, analysis and reporting
- Database of more than 70,000 modules with automatic updates
- Wireless interfaces for faster installation, safer working environment and freedom of movement during PV troubleshooting
- Ready for on-site firmware update
Product description 393 FC
- Measure safely with a current clamp that meets safety specification CAT III 1500 V
- Thin jaws for access to cables in crowded combiner boxes
- Rugged and rated to IP54 for outdoor use
- Work efficiently with DC power measurement, audio polarity and visual continuity
Product description 87V
- A unique feature for accurate voltage and frequency measurements at variable speed drives and other equipment causing electrical disturbances (87V).
- A built-in thermometer makes it easy to take temperature measurements without having to carry a separate instrument (87V).
- Optional magnetic hanging clip for easy installation and reading while leaving your hands free for other tasks.
- With its large-digit display and bright backlight with two levels of illumination, the 80 Series V is significantly easier to read than older models.
Product description 1587 FC
- PI/DAR measurements with TrendIt graphs
- Memory storage via the Fluke Connect Measurements app
- Temperature compensation via the Fluke Connect Measurements app
- Low-pass filter for frequency-controlled drives, for accurate measurements on motor drives
- Insulation test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
- Insulation test: 0.01 MOhm to 2.0 GOhm
- Automatic discharge of capacitive voltages
- Smoothed reading of insulation test values
- Frequency
- Capacitance
- Diode test
- Temperature
- Min/Max
- AC/DC voltage
- DC in millivolts
- AC/DC in milliamps
- Resistance (0.1 Ohm to 50 MOhm)
- Passage
- Three-year warranty
- External probe, test leads, alligator clips
- Thermocouple type K
- Automatic switch-off
Key features according to our expert
Specifications / All features
-
Brand:
FLUKE
-
08107150
-
EAN:
0195112124987
-
Supplier number:
FLUKE 5602278
- Number of sweeps with a sweep-to-sweep delay of 18 s
- unlimited (25 °C, 77 °F ambient temperature)
- Voltage resolution
- 25 mV
- Safety and regulations
- CAT III 1500 V
- Storage temperature range
- -20 °C to 65 °C, -4 °F to 149 °F
- Pv connector
- Banana connectors
- Led for charging/charging
- Yes
- Power accuracy (0 °c to 45 °c)
- (1.7% + 1.0 W) (current >= 3A, module efficiency< 19%)
- Sweep-to-sweep delay (at voc<= 1350 v)
- < 9 seconds
- Max megawatts measured per hour
- 3.5 MW/hour
- Max. number of i-v sweeps per hour (at voc<= 1350 v)
- 400 sweeps/hour
- Alert functions
- Overvoltage, overcurrent, overtemperature, reverse polarity
- Duration i-v-sweep
- 0.05 to 2 seconds (typically 0.2 seconds for PV series)
- Module efficiency< 19%
- 0 to 30 A DC
- Voltage accuracy (0 °c to 45 °c)
- (0,5% 0,25V)
- Module efficiency >=19%
- 0 to 30 A DC
- Number of sweeps with a sweep-to-sweep delay of 9 s
- unlimited (25 °C, 77 °F ambient temperature)
- Voltage range (voc)
- 20 to 1500 V DC
- Battery operating time
- Approx. 7 hours
- Weight
- 7.3 kg
- Width
- 21.6 cm
- Accuracy of current (0 °c to 45 °c)
- (0,5% 0,04A)
- Depth
- 15.2 cm
- Height
- 53.3 cm
- Battery charging time
- 6 hours
- Interface to tablet/laptop
- Wi-Fi interface between user's tablet or laptop, I-V device and
- I-v trail points
- 100 or 500 (selectable)
- Ready for on-site firmware update
- Yes
- Current resolution
- 2 mA
- Operating temperature range
- 0 °C to 45 °C, 32 °F to 113 °F
