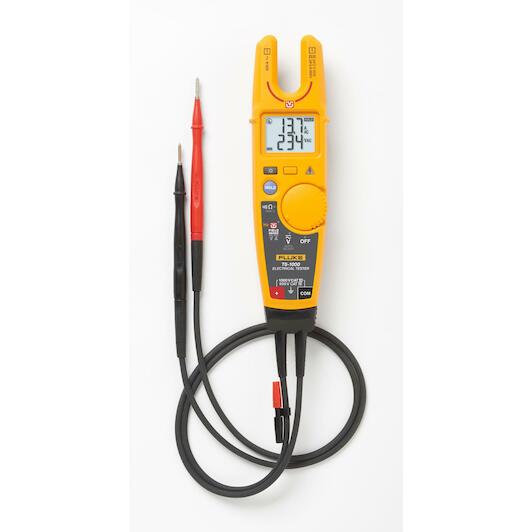

FLUKE T6-1000 Electrical tester - 4910257

Product description:

• The Fluke T6 is the perfect 'all-in-one' tool for troubleshooting, maintenance and service.
• Fault finding in electrical systems can be time-consuming and potentially dangerous as it requires access to metal contact points.
• With the latest Fluke T6 electrical testers, reliable True RMS measurements can now be made in congested junction boxes or along conductors with inaccessible endpoints.
• This saves time, eliminates potential errors and significantly reduces the risk of arc discharge.
• The robust testers have the safety specification 1000 V CAT III and
• 600 V CAT IV and feature an easy-to-read backlit display.
• FieldSense technology
• FieldSense
• With Fluke's FieldSense technology, you can now take measurements quickly and easily by sliding the open fork over a conductor to see the voltage level without using test leads.*
• *Requires a capacitive earth connection, provided by the user in most applications.
• In some situations, grounding via the test lead is required.
• How to use your new Fluke T6
• Learn how to use your new T6 with revolutionary 'Field Sense' technology and get the best out of your tester.
• Keep the following hints in mind when using the instrument.
• Measure voltage and current at the same time.
• How does FieldSense technology work?
• With a capacitive sensor, a voltage signal is measured via the user's hand in relation to earth, without any electrical contact or galvanic connection and completely isolated!
• The sensor area of the tester must be close to the measured signal on a live conductor.
• In this case, both the user's hand and body provide a connection to earth.
• The electric field (voltage) and magnetic field (current) are recorded.
• If the earth connection is missing, an earth symbol is shown on the display of the T6.
• In some cases, measuring leads must be used: When the hand or human body is isolated from earthing (e.g.
• By safety gloves) or when the human body is not in contact with the earth ground (e.g. on upper floors in wooden houses), contact with the earth ground must be made by connecting the black test lead (COM) to the earth ground.
• Main product features
• FieldSense technology for measuring AC voltage, current and frequency without making electrical contact with active voltage+
• Simultaneous display of voltage and current - displays all power measurements at a glance for efficient troubleshooting
• 1 to 1000 V AC or DC (T6-1000)
• 0.1 to 200 A AC
• True-RMS AC voltage and current
• Resistance 1 Ohm to 100 kOhm
• Frequency measurement 45 Hz to 66 Hz
• Works with most wires up to AWG 4/0 (120 mm2) with a jaw opening of 17.8 mm
• HOLD button temporarily freezes the reading for easy viewing
• Easy-to-read backlit display
• Compatible with the optional Fluke TPAK magnetic meter hanger clip for convenient operation
• Standard two-year warranty; extendable to four years by registering the product within 45 days of purchase

Key features:

• Measure voltage and current simultaneously, without test leads!
• Safer working: Measure voltage up to 1000 V AC via the open fork, without measuring leads.
• Faster work: No need to open covers or remove wire nuts.
• More efficient work: Measure voltage and current simultaneously.
• Work anywhere: The 17.8 mm open fork is the widest in the industry; it measures up to 200 A at 120 mm2.
