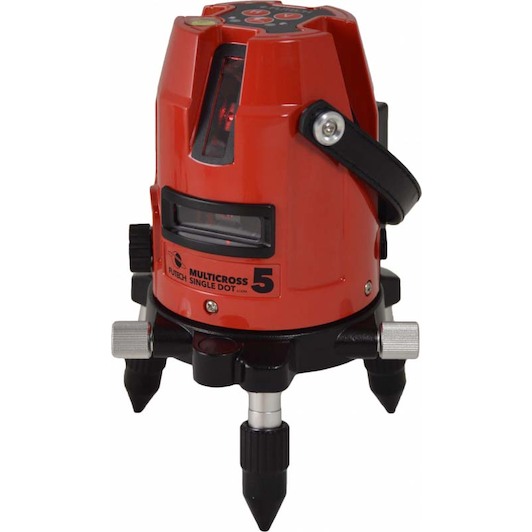

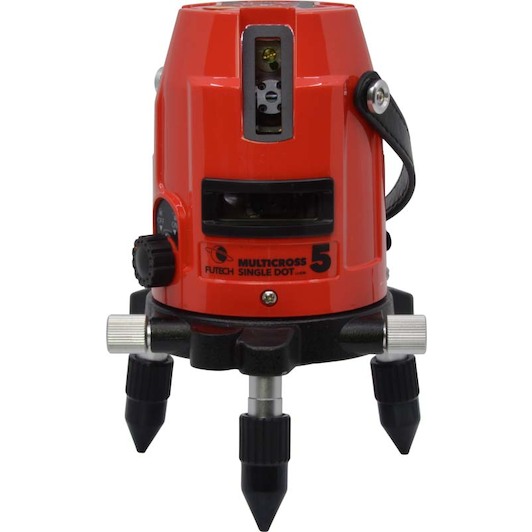

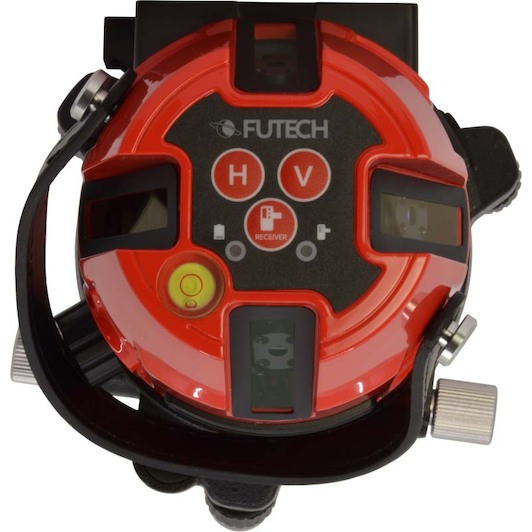

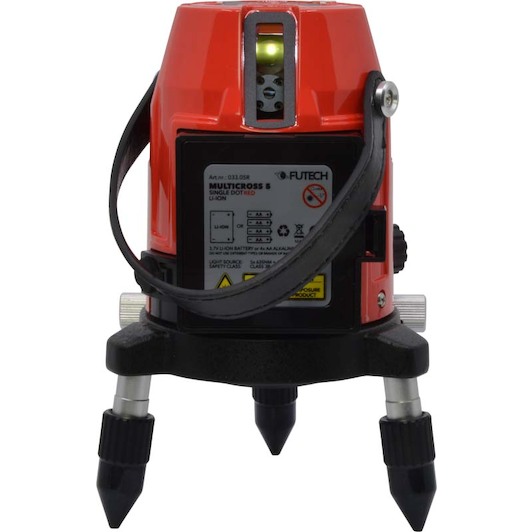

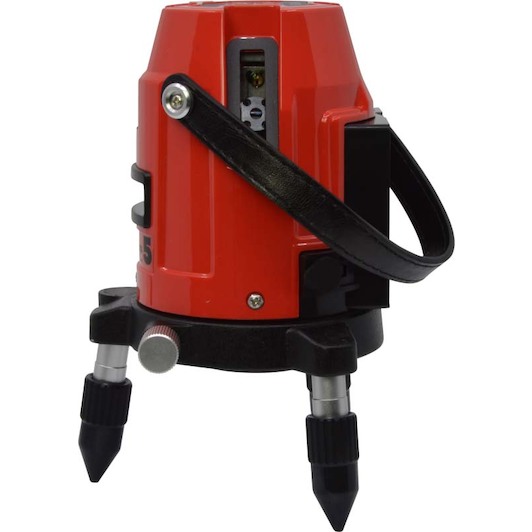

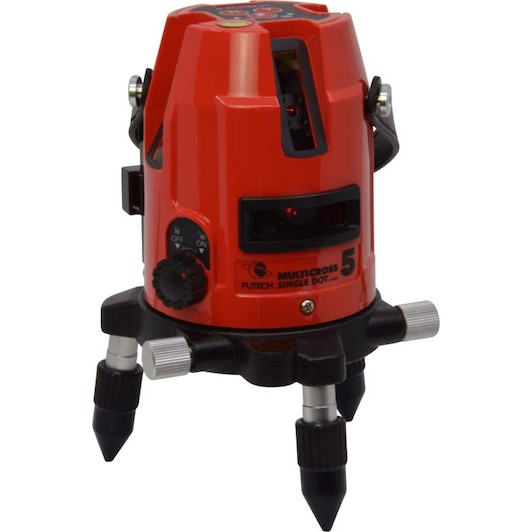

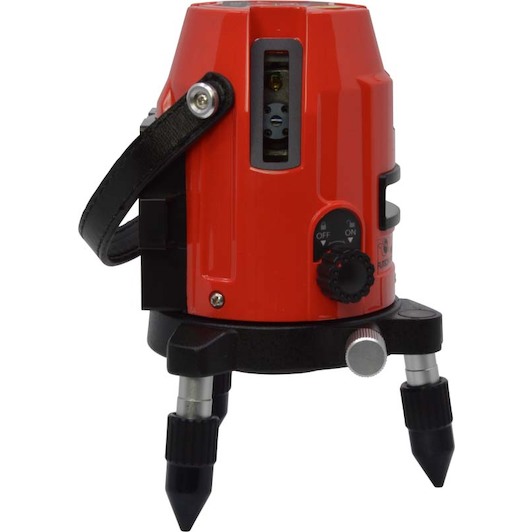

FUTECH MULTICROSS 5 SD cross line laser red - 033.05R

FUTECH
Supplier number: FUTECH 033.05R | EAN 5420073802571
This product has been discontinued.

✆ Talk to a specialist

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.



Product information Accessories

Product information

Key features according to our expert

  • Laser type: Cross line laser
  • Weight: 0,79 kg
  • With tripod: No
  • Projection (laser beams): 2x 360°, 2 vertical + 1 line horizontal
  • Self-levelling range: 2,0000 °
  • Number of points: 1
  • Tripod thread: 5/8"
  • Type of system case: Not applicable
  • Protection class IP: IP54
  • Laser class: Class 3R
  • Accuracy: 0,15 mm/m
  • Colour (laser beams): Red
  • Max. range with receiver: 50 m

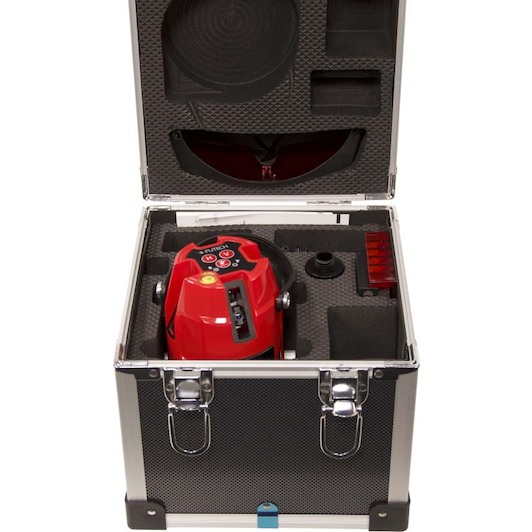

  • Supplied in: Case

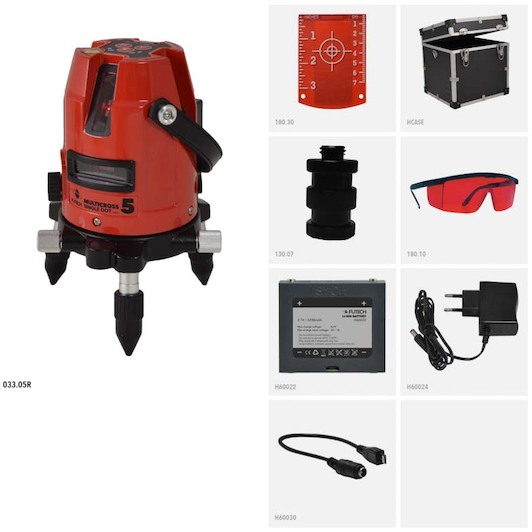

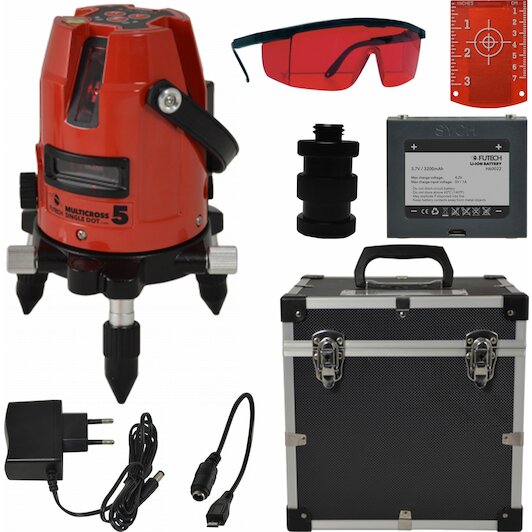

Scope of delivery

  • 033.05R - Multicross 5 SD Red
  • HCASE -Small black case for cross line laser
  • 180.30 -Magnetic target plate Red
  • 180.10 -Laser glasses Red
  • 130.07 -Tripod adapter 5/8
  • H60024 -Adapter for MC3/MC5 SV - MC3/MC5 DL
  • H60022 -Li-Ion battery 3.7V 3200mAh
  • H60030 -Connector for charger H60024

Product description

  • Cross line laser with 1 red horizontal line and 4 vertical lines (= plumb above and below + 4 90° angles).
  • Each line has 1 laser dot for better visibility even in high-light or outdoor environments.
  • Pendulum levelling with 1.5mm/10m accuracy and range of 50m with receiver (optional).
  • Fine adjustment rotates laser precisely around plumb.
  • Mains adapter ensures unlimited autonomy.

All Features

Laser type
Cross line laser
Weight
0,79 kg
With tripod
No
Projection (laser beams)
2x 360°, 2 vertical + 1 line horizontal
Self-levelling range
2,0000 °
Number of points
1
Tripod thread
5/8"
Type of system case
Not applicable
Protection class ip
IP54
Laser class
Class 3R
Accuracy
0,15 mm/m
Colour (laser beams)
Red
Max. range with receiver
50 m
Supplied in
Case
Visibility
4
Transport protection for the pendulum
Yes
Number of 90° angles
4
Storage temperature
-20°C - +60°C
Number of vertical lines
4
Charger integrated in mains connection
Yes
Tilt function
No
Dust and water resistance
IP54
Range (with receiver)
2x 50m
Number of laser points per line
1
Leveling
Pendulum levelling
Number of laser diodes
5
Colour laser beams
Red
Maximum adjustable inclination (x-axis / y-axis)
Not applicable
Slope function
No
Wind function
No
Laser frequency (in receiver mode)
10KHz
Operating temperature
-10°C - +50°C
Batteries
LI-ION (included) or 4x AA
Remote control
No
Pendulum lock (for manual ramps)
No
Plumb
Yes
Built-in screw for tripod
5/8"
Scan function
No
Rotations per minute
Not applicable
Number of horizontal lines
1
  • Brand FUTECH
  • EAN 5420073802571
  • Supplier number FUTECH 033.05R
