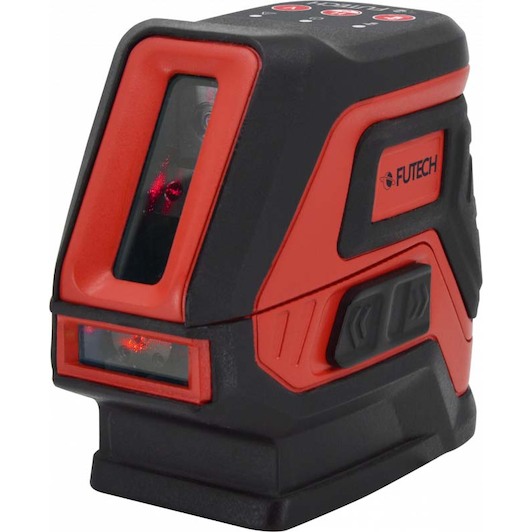

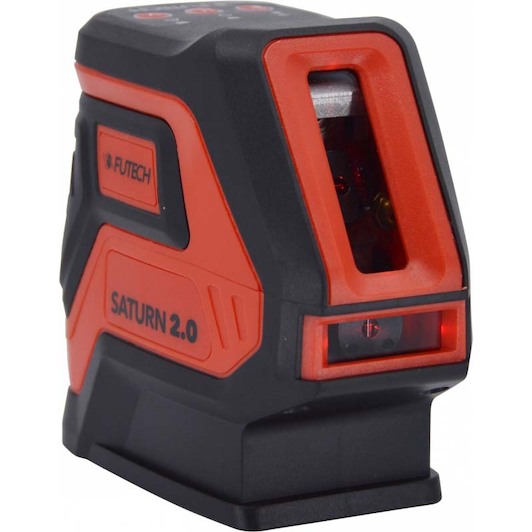

FUTECH SATURN 2.0 line laser red - 011.20R

FUTECH
Supplier number: FUTECH 011.20R | EAN 5420073803066
This product has been discontinued.

✆ Talk to a specialist

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.



Product information Accessories

Product information

Key features according to our expert

  • Laser type: Cross line laser
  • Type of system case: Not applicable
  • Max. range: 15 m
  • Tripod thread: 1/4"
  • Projection (laser beams): 1 horizontal, 1 vertical
  • Self-levelling range: 3,5000 °
  • Weight: 0,42 kg
  • With tripod: No
  • Supplied in: Bag
  • Laser class: Class 2
  • Accuracy: 0,2 mm/m
  • Colour (laser beams): Red
  • Max. range with receiver: 50 m
  • Protection class IP: IP54

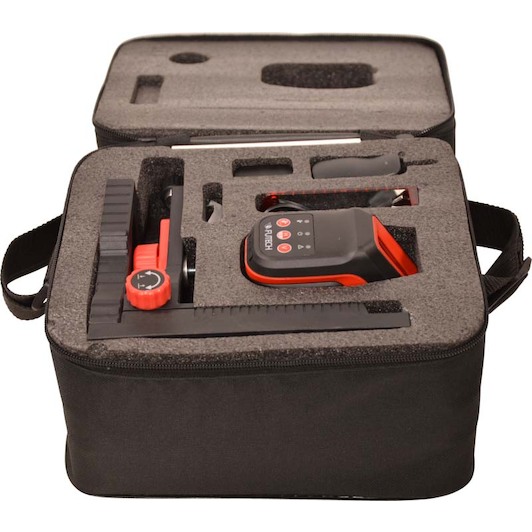

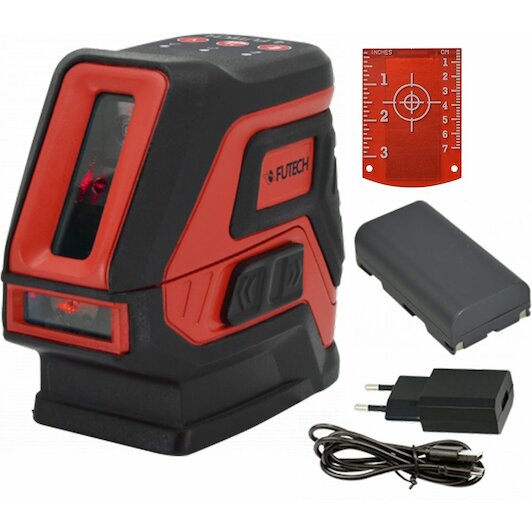

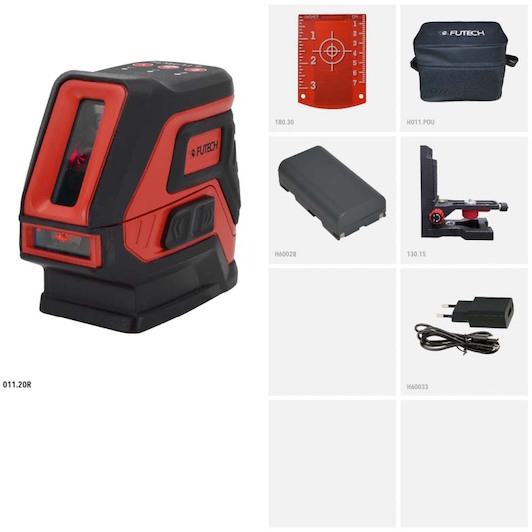

Scope of delivery

  • 011.20R - Saturn 2.0 Red

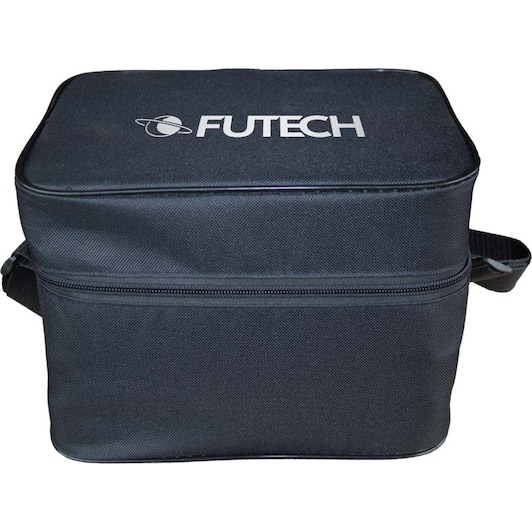

  • H011.POU -Bag small
  • 180.30 -Magnetic target plate Red

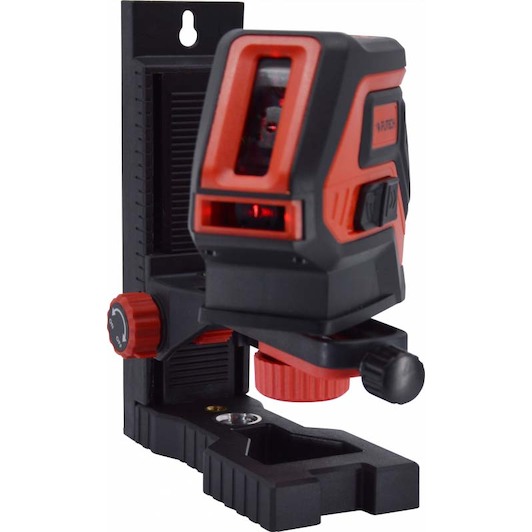

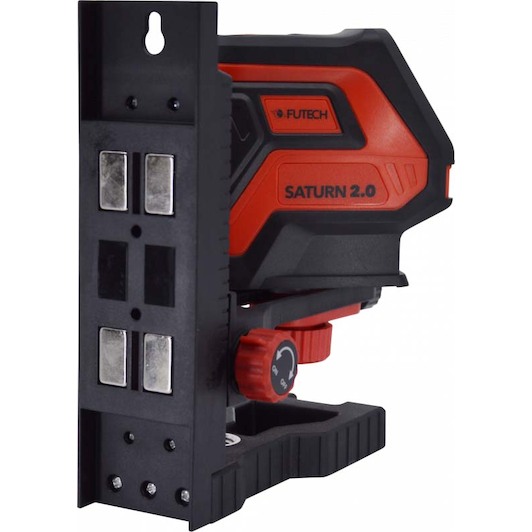

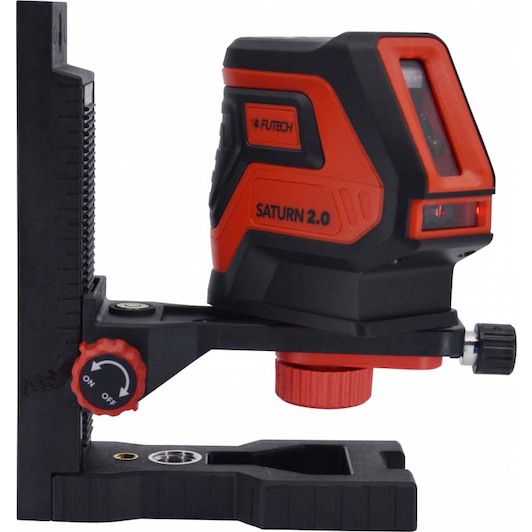

  • 130.15 -Magnetic wall holder
  • H60028 -Li-Ion battery 7.4V 2600mAh
  • H60033 -Charger + USB-C cable

Product description

  • Line laser with 1 red horizontal and 1 vertical line.
  • Pendulum levelling with 2mm/10m accuracy and range of 50m with receiver (optional).

All Features

Laser type
Cross line laser
Type of system case
Not applicable
Max. range
15 m
Tripod thread
1/4"
Projection (laser beams)
1 horizontal, 1 vertical
Self-levelling range
3,5000 °
Weight
0,42 kg
With tripod
No
Supplied in
Bag
Laser class
Class 2
Accuracy
0,2 mm/m
Colour (laser beams)
Red
Max. range with receiver
50 m
Protection class ip
IP54
Visibility
3
Transport protection for the pendulum
Yes
Storage temperature
-5°C - +40°C
Number of vertical lines
1
Charger integrated in mains connection
Yes
Tilt function
No
Range (with receiver)
50m
Leveling
Pendulum levelling
Colour laser beams
Red
Number of laser diodes
2
Maximum adjustable inclination (x-axis / y-axis)
+/- 45°
Slope function
Manual
Wind function
No
Laser frequency (in receiver mode)
10KHz
Operating temperature
-5°C - +40°C
Remote control
No
Pendulum lock (for manual ramps)
Yes
Plumb
No
Built-in screw for tripod
1/4"
Scan function
No
Rotations per minute
Not applicable
Number of horizontal lines
1
  • Brand FUTECH
  • EAN 5420073803066
  • Supplier number FUTECH 011.20R
