MILWAUKEE M12 3PLKIT-401P three-dimensional cordless laser green with 3x360° laser circles in PACKOUT case (1x 4.0Ah battery + charger) - 4933478960

Supplier number: MILWAUKEE 4933478960 | EAN 4058546362423
Recommended Retail Price €1,231.56
894.10 tax incl.
€738.92 excl. VAT (incl. all environmental contributions)
On stock - immediately available
kit

  • Ordered before 20:00 - delivered tomorrow 20/11/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.

Full layout precision with Milwaukee

Practical benefits
  • Three complete laser planes: Project one horizontal and two vertical lines across the entire room simultaneously. a tight accuracy of 0,3 mm/m helps you square and level surfaces rapidly.
  • High visibility green beam: The intense green laser remains crisp at distances up to 38 m. Pairing the unit with the included detector extends your working range to 100 m.
  • Complete all-in-one kit: This set comes packed with an adjustable tripod, magnetic mount, target plate, and a 4,0AH battery. The rugged tool case keeps everything protected on job sites.

In a nutshell

The right choise for

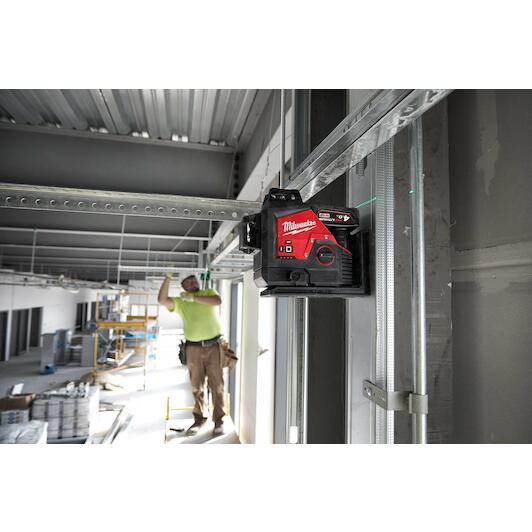

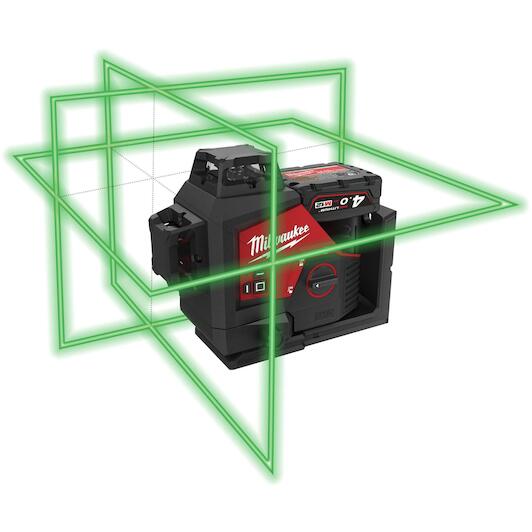

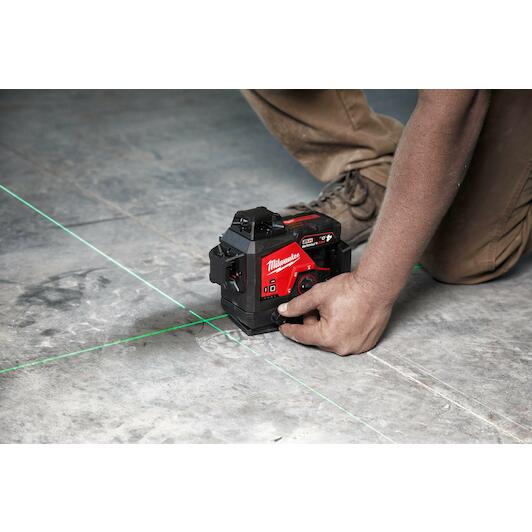

Layout entire rooms accurately with the Milwaukee M12 3PLKIT-401P multi-line laser. Projecting one horizontal and two vertical 360° lines, this tool casts bright green beams across floors, walls, and ceilings. It simplifies squaring partition walls, suspended ceilings, and conduit runs.

The self-levelling pendulum balances within 4.0° at 0.3 mm/m accuracy. Green laser lines stay visible up to 38 m. Pairing the tool with the included LLD50 detector extends working reach to 100 m.

Featuring an IP54 housing, the unit mounts to the included TRP120 tripod via 1/4" and 5/8" threads. Store the laser, LM360 mount, hi-vist target plate, clip, C12 C charger, and M12 B4 4.0Ah battery inside the Packout case.



€894.10
In stock - tax incl.

Product information

Key features according to our expert

  • Laser type: Cross line laser
  • Type of system case: Packout
  • Max. range: 38 m
  • With tripod: Yes
  • Tripod thread: 1/4"; 5/8"
  • Self-levelling range: 4,0000 °
  • Weight: 1,1 kg
  • Projection (laser beams): 3x 360°, 1 horizontal, 2 vertical
  • Supplied in: System case
  • Max. range with receiver: 100 m
  • Laser class: Class 2
  • Accuracy: 0,3 mm/m
  • Colour (laser beams): Green
  • Rating (IP): IP54
  • Product Range: Milwaukee Packout

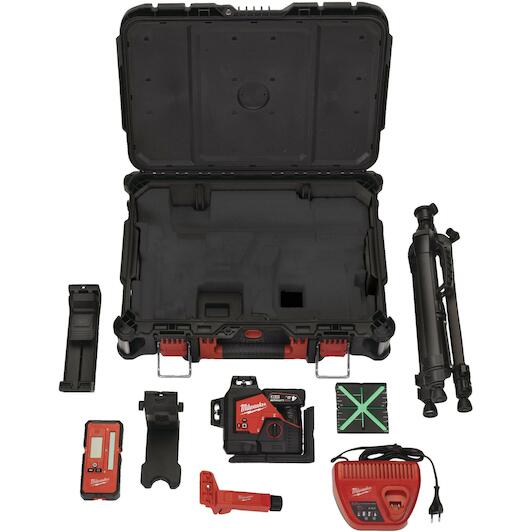

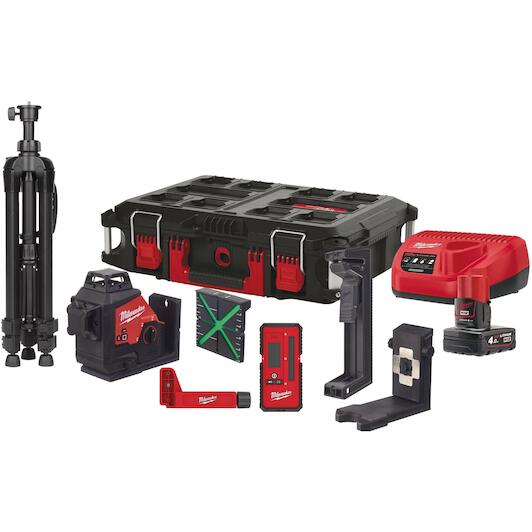

Scope of delivery

  • 1 x M12 B4 battery pack
  • C12 C Charger

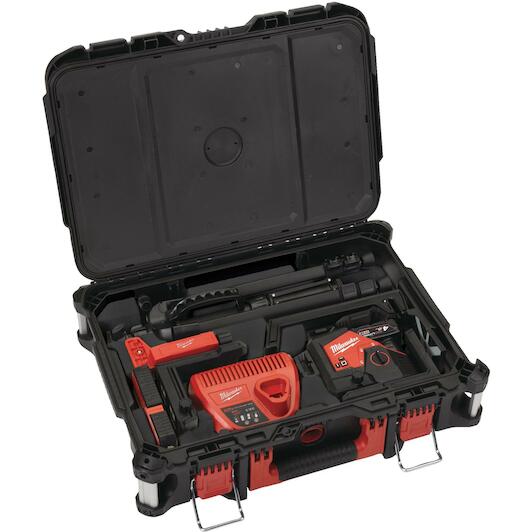

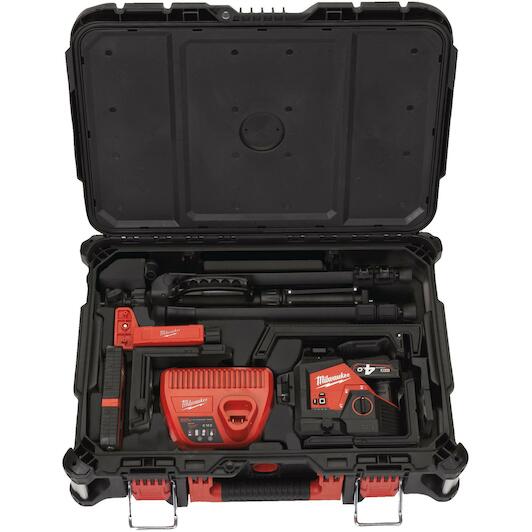

  • PACKOUT tool case
  • HI-VIST high visibility target plate
  • LLD50 line laser detector 50m
  • LM360 laser mount 360°
  • TRP120 compact laser tripod extendable to 1.2m
  • Track Clip

Product description

  • M12 green 360° 3 plane laser provides an all-in-one functionality with one horizontal line and two vertical lines for fast and easy alignment, leveling, squaring, and transfers allowing you to easily layout large spaces with one tool

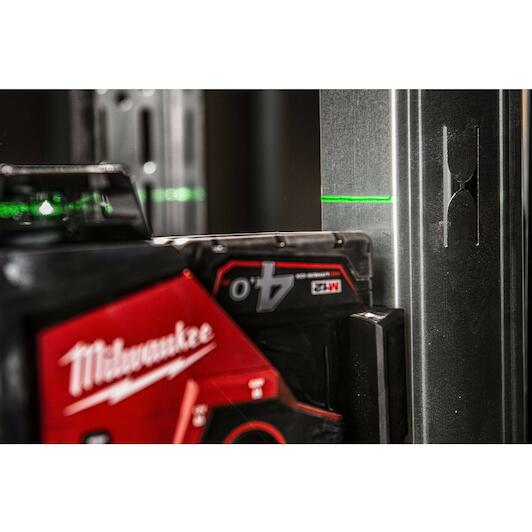

  • High intensity green laser diode for maximised visibility; up to 4x better visibility vs red lasers
  • High intensity green beams provide a working range of 38 m and up to 100 m with a detector
  • Provides all-day run time of 15+ hours with an M12 B4 battery pack
  • 3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport

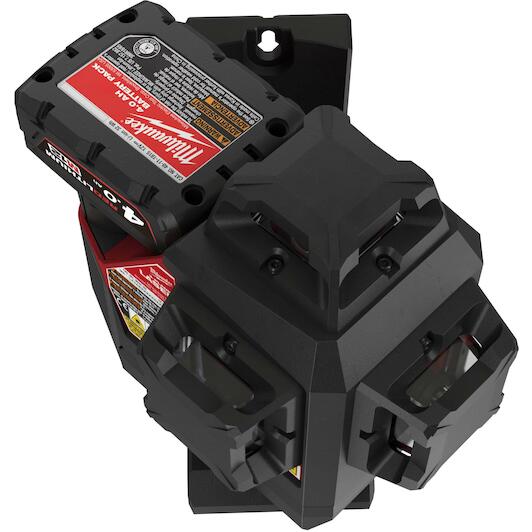

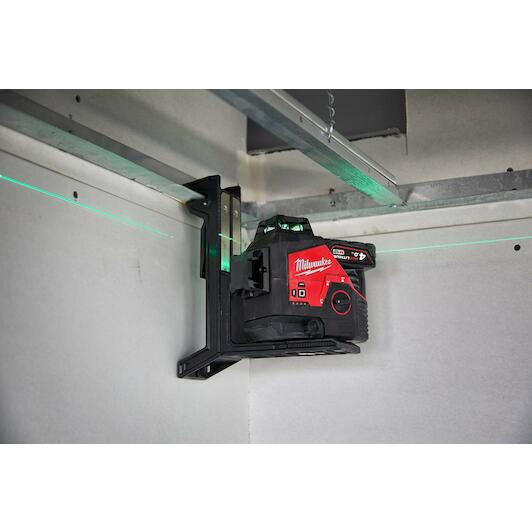

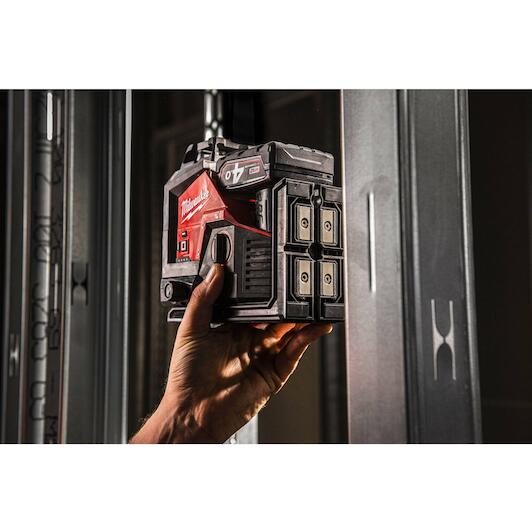

  • Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4" and 5/8" tripod thread and hang hole - allows attachment to steel stud, wooden stud and tripod

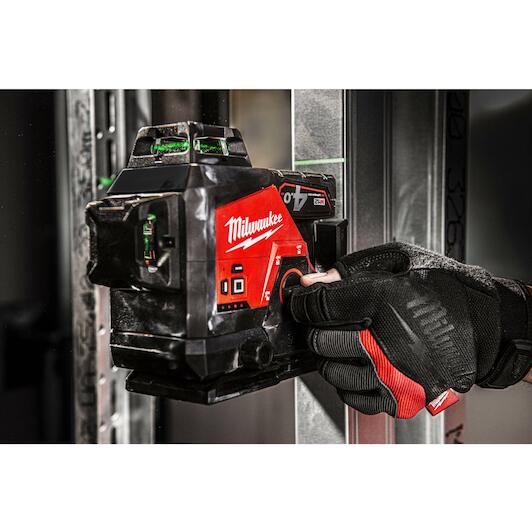

  • The bracket also provides the laser 330° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment
  • Robust over-moulded construction with an IP 54 rating, the laser is water/ debris resistant and can withstand up to 1 m drops
  • Flexible battery system: works with all MILWAUKEE M12batteries

All Features

Laser type
Cross line laser
Type of system case
Packout
Max. range
38 m
With tripod
Yes
Tripod thread
1/4"; 5/8"
Self-levelling range
4,0000 °
Weight
1,1 kg
Projection (laser beams)
3x 360°, 1 horizontal, 2 vertical
Supplied in
System case
Max. range with receiver
100 m
Laser class
Class 2
Accuracy
0,3 mm/m
Colour (laser beams)
Green
Rating (ip)
IP54
Laser classification
Class 2
Max. working time with m12 b4 battery (hours)
15
Self-levelling range (°)
4
Self-levelling time (sec)
3
Operating range receiver (m)
50 / 100
Accuracy (mm/m)
0.3
Product range
Milwaukee Packout
Battery type
Li-ion
Colour of laser
Green
Voltage (v)
12
Laser projection
2x vertical, 1 horizontal
Number of batteries supplied
1
  • Brand MILWAUKEE
  • EAN 4058546362423
  • Supplier number MILWAUKEE 4933478960

Accessories

View more accessories (32)

Frequently asked questions about this product

Answered by specialists
What working range does this laser achieve with and without a receiver?
The green laser provides a visible range up to 38 m. Using the included LLD50 detector extends the working distance up to 100 m.
Which items are included in this complete kit?
You receive the laser, one M12 B4 4.0Ah battery, a C12 C charger, TRP120 tripod, LLD50 detector, LM360 mount, hi-vist target plate, track clip, and a Packout case.
What is the leveling accuracy of this tool?
Accuracy is rated at 0.3 mm/m. The internal pendulum automatically levels within a 4.0° slope range.
Which tripod mounts are featured on the housing?
The base incorporates both 1/4" and 5/8" threads. You can mount the unit directly onto nearly any standard surveying or camera tripod.
How many lines does this laser project simultaneously?
The unit projects three 360° planes: one horizontal line and two vertical lines that intersect at precise 90° angles.
