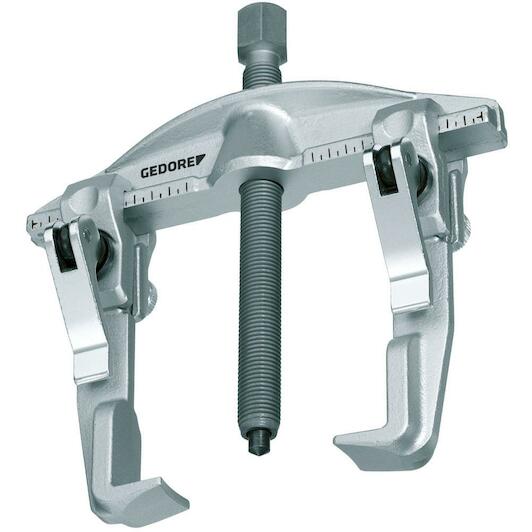

Product description
- For safe and quick unloading of discs, wheels, ball bearings, etc.
- Strong, ergonomically shaped cross beam with bending moment reinforcement
- Thanks to the bending moment reinforcement on the upper side, the ergonomically shaped traverse provides even higher and reliable release torques

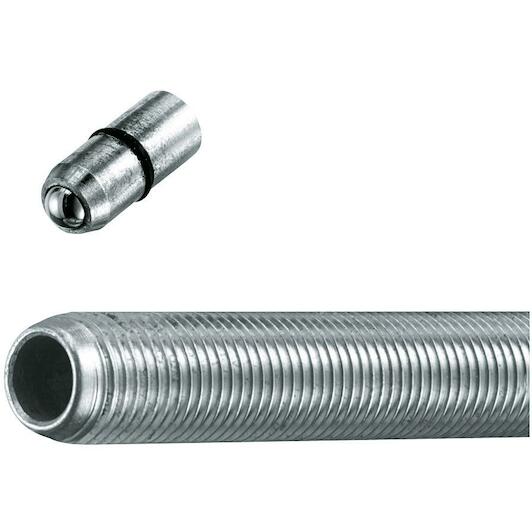

- The spindle can be replaced by a hydraulic spindle if required (see table)
- The quick adjustment feature contributes to ergonomic and fast working

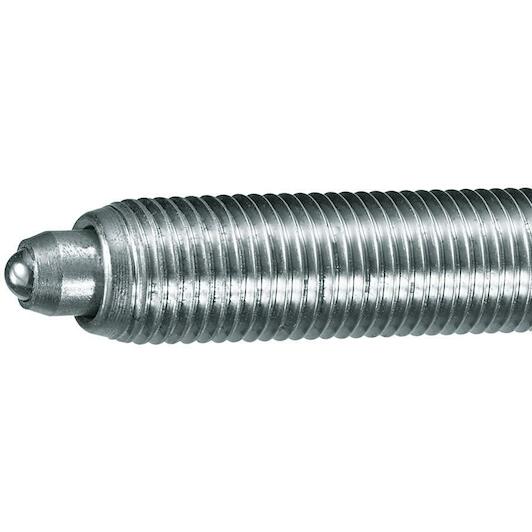

- Interchangeable spindle tip (ball or pointed)
- Suitable for use with a hydraulic spindle
Key features according to our expert
-
Max. width: 200 mm
-
Hydraulical: No
-
Max. height: 150 mm
-
Number of hooks: 2
-
Puller type: Universel puller
Specifications / All features
-
Brand:
GEDORE
-
41231113
-
EAN:
4036976107111
-
Supplier number:
GEDORE 1307827
- Max. width
- 200 mm
- Hydraulical
- No
- Max. height
- 150 mm
- Number of hooks
- 2
- Puller type
- Universel puller
- Anti-slip protection on the spindle available
- No
- Reversible arms available
- Yes
- Hooks parallel adjustable
- Yes
- Number of arms
- 2
- Spindle (usable) thread length [mm].
- 210 mm
- Hook foot width on the gripping surface c1 [mm]
- 30 mm
- Screws included
- No
- Spindle take-up
- G1/2"
- Spindle surface coating
- Nitrocharacterised
- Spindle spanner width
- 22 mm
- Suitable for use with a hydraulic spindle
- Yes
- Hook foot depth usable d2 [mm]
- 18 mm
- Scale present
- x
- Hook foot thickness at end e1 [mm]
- 3.5 mm
- Quick-release lever available
- Yes
- Clamping bracket available
- No
- Hydraulic spindle optional
- 1.06/HSP1
- Drive hexagonal width
- 22 mm
- Spindle-slide protection
- No
- Implementation
- 2-armed
- Spindle-point interchangeable
- Yes
- Span when pulled externally (max) [mm].
- 200 mm
- Towing force (max.) [t]
- 5
- Span for internal pulling a2 (max.) [mm]
- 260 mm
- Span for internal pull a2 (min.) [mm]
- 110 mm
- Use/application
- For removing drive pulleys, wheels, ball bearings, etc.
- Load of the entire tractor (max.) [t].
- 5 t
- Hook brake available
- No
- Spindle print piece type
- Kugel & Spitze
- Spindle thread size
- G1/2x210mm
- Clamping depth usable b [mm]
- 150 mm
