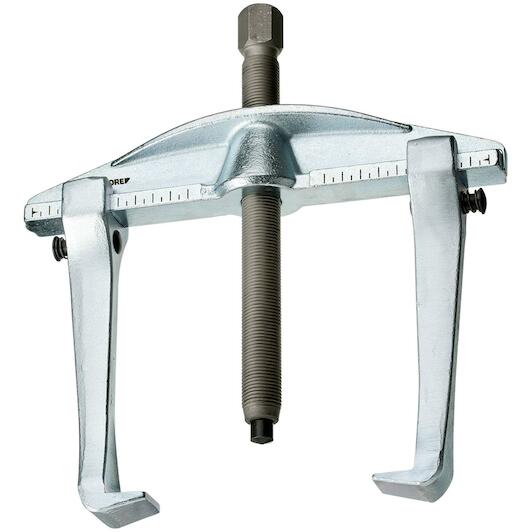

Product description
- Thanks to the bending moment reinforcement at the top, the ergonomically shaped traverse features even higher and reliable release torques
- Robust die-forged design
- One-piece forged hooks
- When loaded, the hooks retract automatically
- With hook brake - protection against unintentional movement of the hooks
- The hook can be moved on the crossbar at the push of a button
- Adjustment scale for even setting of the hooks
- Enables centric, force-optimised pull-off even with very high pull-off forces
- If required, the spindle can be replaced by a hydraulic spindle (see table)
- Interchangeable spindle tip (ball or pointed)
- Spindle thermally hardened
- Suitable for use with a hydraulic spindle
Key features according to our expert
-
Max. width: 350 mm
-
Puller type: Universel puller
-
Number of hooks: 2
-
Hydraulical: No
-
Max. height: 200 mm
Specifications / All features
-
Brand:
GEDORE
-
01040688
-
EAN:
4036976121766
-
Supplier number:
GEDORE 1981137
- Max. width
- 350 mm
- Puller type
- Universel puller
- Number of hooks
- 2
- Hydraulical
- No
- Max. height
- 200 mm
- Spindle surface coating
- Nitrocharacterised
- Reversible arms available
- Yes
- Hooks parallel adjustable
- Yes
- Number of arms
- 2
- Spindle (usable) thread length [mm].
- 280 mm
- Hook foot width on the gripping surface c1 [mm]
- 36 mm
- Screws included
- No
- Hydraulic spindle optional
- 1.06/HSP2
- Spindle take-up
- G3/4"
- Spindle spanner width
- 27 mm
- Suitable for use with a hydraulic spindle
- Yes
- Hook foot depth usable d2 [mm]
- 33 mm
- Scale present
- x
- Hook foot thickness at end e1 [mm]
- 5.0 mm
- Quick-release lever available
- No
- Clamping bracket available
- No
- Anti-slip protection on the spindle available
- No
- Drive hexagonal width
- 27 mm
- Spindle-point interchangeable
- Yes
- Implementation
- 2-armed
- Spindle-slide protection
- No
- Towing force (max.) [t]
- 7,5
- Span when pulled externally (max) [mm].
- 350 mm
- Span for internal pulling a2 (max.) [mm]
- 420 mm
- Span for internal pull a2 (min.) [mm]
- 150 mm
- Use/application
- For removing drive pulleys, wheels, ball bearings, etc.
- Hook brake available
- Yes
- Spindle print piece type
- Kugel & Spitze
- Spindle thread size
- G3/4x280mm
- Clamping depth usable b [mm]
- 200 mm
