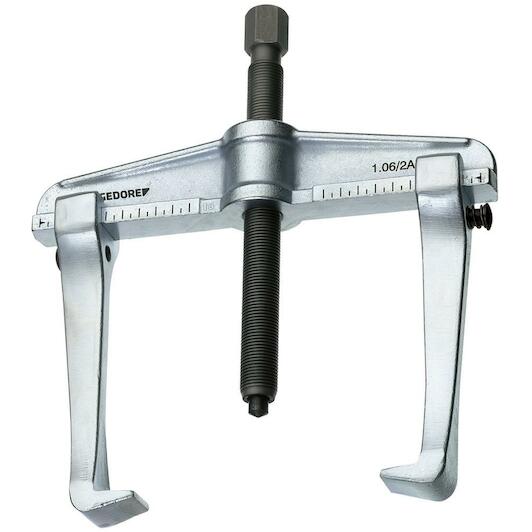

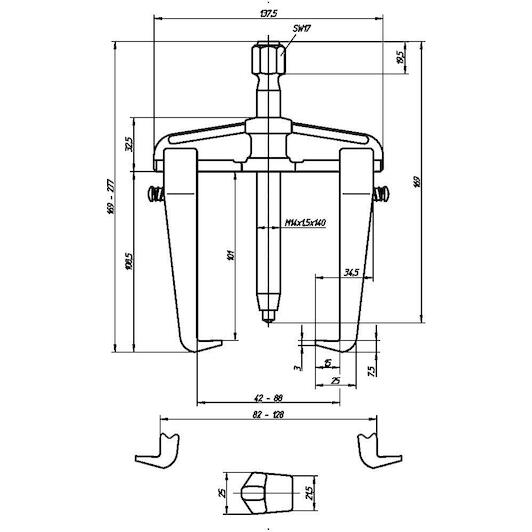

GEDORE 1.06/11-B universal puller 2-armed, all-steel hook with hook brake 100x100 mm - 1956337

Show more features

Max. width

140 mm

Hydraulical

No

Max. height

100 mm

Number of hooks

2

Puller type

Universel puller

Anti-slip protection on the spindle available

No

Reversible arms available

Yes

Hooks parallel adjustable

Yes

Number of arms

2

Spindle (usable) thread length [mm].

140 mm

Hook foot width on the gripping surface c1 [mm]

22 mm

Screws included

No

Spindle take-up

M14x1.5mm

Spindle surface coating

Nitrocharacterised

Spindle spanner width

17 mm

Suitable for use with a hydraulic spindle

No

Hook foot depth usable d2 [mm]

15 mm

Scale present

x

Hook foot thickness at end e1 [mm]

3.0 mm

Quick-release lever available

No

Clamping bracket available

No

Drive hexagonal width

17 mm

Spindle-slide protection

No

Implementation

2-armed

Spindle-point interchangeable

No

Span when pulled externally (max) [mm].

100 mm

Towing force (max.) [t]

3,0

Span for internal pulling a2 (max.) [mm]

140 mm

Span for internal pull a2 (min.) [mm]

50 mm

Use/application

For removing drive pulleys, wheels, ball bearings, etc.

Load of the entire tractor (max.) [t].

3 t

Hook brake available

Yes

Spindle print piece type

Spitze

Spindle thread size

M14x1.5x140mm

Clamping depth usable b [mm]

100 mm
