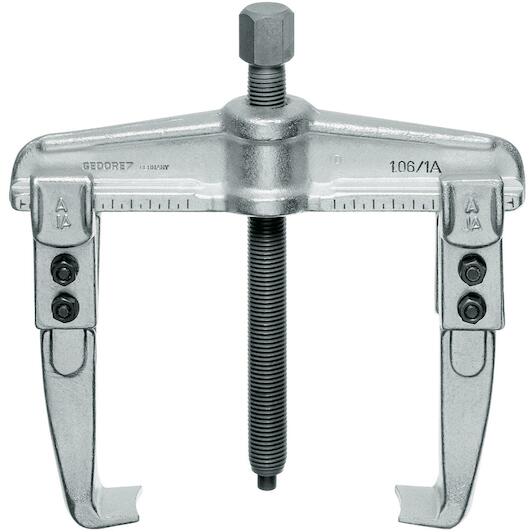

Product description
- Tried-and-tested model for safely and quickly loosening discs, wheels, ball bearings, etc.
- Robust, die-forged design
- If required, the spindle can be replaced by a hydraulic spindle (see table)
- Adjustment scale for even setting of the hooks
- Enables centric, force-optimised retraction even with very high retraction forces
- Exchangeable hooks for different spindle depths are available as accessories
- Suitable for use with a hydraulic spindle (see table)
Key features according to our expert
-
Max. width: 160 mm
-
Hydraulical: No
-
Max. height: 150 mm
-
Number of hooks: 2
-
Puller type: Universel puller
Specifications / All features
-
Brand:
GEDORE
-
41977045
-
EAN:
4036976104189
-
Supplier number:
GEDORE 8000580
- Max. width
- 160 mm
- Hydraulical
- No
- Max. height
- 150 mm
- Number of hooks
- 2
- Puller type
- Universel puller
- Clamping bracket available
- No
- Quick-release lever available
- No
- Hook foot thickness at end e1 [mm]
- 3.5 mm
- Overall length [mm]
- 245 mm
- Reversible arms available
- Yes
- Hook foot depth usable d2 [mm]
- 18 mm
- Suitable for use with a hydraulic spindle
- Yes
- Hydraulic spindle optional
- 1.06/HSP1
- Screws included
- No
- Hook foot width on the gripping surface c1 [mm]
- 30 mm
- Number of arms
- 2
- Hooks parallel adjustable
- No
- Scale present
- x
- Drive hexagonal width
- 22 mm
- Anti-slip protection on the spindle available
- No
- Towing force (max.) [t]
- 5,0
- Spindle thread size
- G 1/2 x 210
- Hook brake available
- No
- Span for internal pull a2 (min.) [mm]
- 80 mm
- Span for internal pulling a2 (max.) [mm]
- 220 mm
- Span when pulled externally (max) [mm].
- 160 mm
- Spindle-slide protection
- No
- Spindle-point interchangeable
- No
- Clamping depth usable b [mm]
- 150 mm
