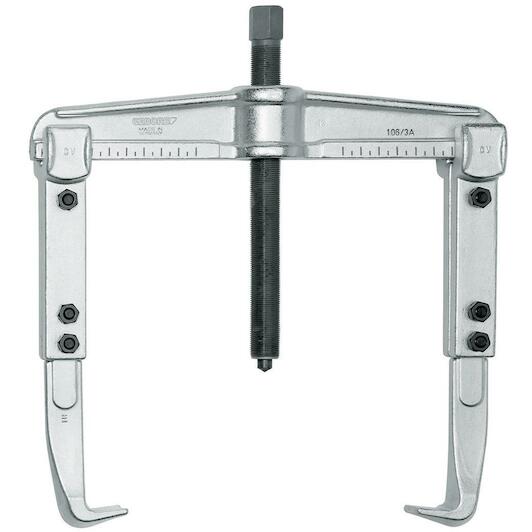

GEDORE 1.06/3A-5 universal puller 2-arm 350x500 mm - 8112380

Show more features

Max. width

350 mm

Puller type

Universel puller

Number of hooks

2

Hydraulical

No

Max. height

500 mm

Spindle surface coating

Nitrocharacterised

Reversible arms available

Yes

Hooks parallel adjustable

Yes

Number of arms

2

Spindle (usable) thread length [mm].

280 mm

Hook foot width on the gripping surface c1 [mm]

36 mm

Screws included

Yes

Suitable for use with a hydraulic spindle

Yes

Spindle take-up

G3/4"

Hydraulic spindle optional

1.06/HSP2

Spindle spanner width

27 mm

Hook foot depth usable d2 [mm]

28 mm

Scale present

x

Overall length [mm]

645 mm

Hook foot thickness at end e1 [mm]

6.5 mm

Quick-release lever available

No

Clamping bracket available

No

Anti-slip protection on the spindle available

No

Drive hexagonal width

27 mm

Spindle-slide protection

No

Implementation

2-arm with extended hooks

Spindle-point interchangeable

No

Span when pulled externally (max) [mm].

350 mm

Towing force (max.) [t]

7,5

Span for internal pulling a2 (max.) [mm]

420 mm

Span for internal pull a2 (min.) [mm]

125 mm

Use/application

For removing drive pulleys, wheels, ball bearings, etc.

Load of the entire tractor (max.) [t].

7,5 t

Hook brake available

No

Spindle print piece type

Spitze

Spindle thread size

G3/4x280mm

Clamping depth usable b [mm]

500 mm
