gedore_2015714

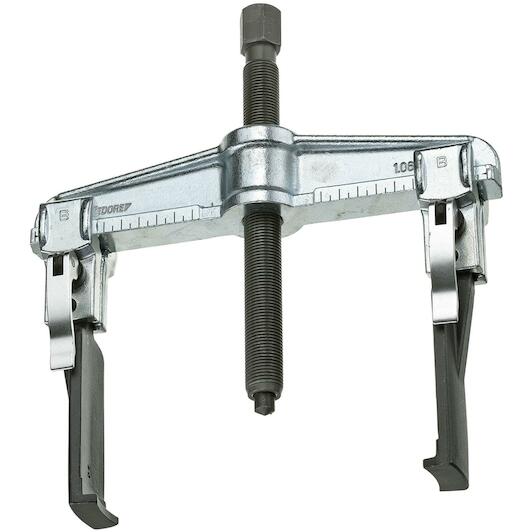

GEDORE 1.06/S1A-E universal quick release lever 2-armed with slim hooks 140x100 mm - 2015714

GEDORE
Supplier number: GEDORE 2015714 | EAN 4036976123463
Recommended Retail Price €211.00
132.80 tax incl.
€109.75 excl. VAT (incl. all environmental contributions)
On order: delivered from 09/10/2026

  • Ordered before 20:00 - delivered as of 09/10/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium
✆ Talk to a specialist

Precise pulling in tight spaces

Practical benefits
  • Access for narrow spaces: Slim forged legs let you reach bearings and gears in extremely confined or hard-to-reach areas.
  • Fast and easy adjustment: The Gedore quick-release mechanism allows you to slide and position the hooks quickly up to 140 mm.
  • Controlled and stable grip: The rigid 2-arm configuration ensures uniform force distribution so you remove components safely and cleanly.

In a nutshell

The right choise for

With the Gedore 1.06/S1A-E universal quick-release puller, you remove seized bearings, gears, and pulleys cleanly without damaging the shaft. Its slim forged legs allow you to reach into tight gaps and confined spaces where standard pullers cannot fit. Thanks to the quick-clamping mechanism, you can adjust the legs rapidly without extra tools, offering a clamping width of up to 140 mm and a reach depth of 100 mm. By reversing the legs, you can switch seamlessly between internal and external pulling. This 2-arm tool ensures controlled, uniform force distribution for safe and efficient maintenance work.



Product information FAQ
€132.80
tax incl.

Product information

Key features according to our expert

  • Max. width: 140 mm
  • Number of hooks: 2
  • Max. height: 100 mm
  • Hydraulical: No
  • Puller type: Universel puller

Product description

  • Very narrow forged hooks
  • Particularly suitable for hard-to-reach places
  • If required, the spindle can be replaced by a hydraulic spindle (see table)
  • Quick and uncomplicated setting and adjustment thanks to quick-release hooks

All Features

Max. width
140 mm
Number of hooks
2
Max. height
100 mm
Hydraulical
No
Puller type
Universel puller
Clamping bracket available
No
Quick-release lever available
Yes
Hook foot thickness at end e1 [mm]
3.7 mm
Reversible arms available
No
Hook foot depth usable d2 [mm]
7.5 mm
Suitable for use with a hydraulic spindle
No
Screws included
No
Hook foot width on the gripping surface c1 [mm]
29.8 mm
Number of arms
2
Hooks parallel adjustable
No
Scale present
x
Drive hexagonal width
17 mm
Anti-slip protection on the spindle available
No
Towing force (max.) [t]
2,5
Spindle thread size
M 14x1.5 x 140
Hook brake available
No
Span when pulled externally (max) [mm].
140 mm
Total hook foot depth [mm]
13.5 mm
Spindle-slide protection
No
Spindle-point interchangeable
No
Clamping depth usable b [mm]
100 mm
  • Brand GEDORE
  • EAN 4036976123463
  • Supplier number GEDORE 2015714

Frequently asked questions about this product

Answered by specialists
What are the maximum pulling dimensions?
The puller has a maximum clamping width of 140 mm and a maximum reach depth of 100 mm.
What is the advantage of the slim legs?
The forged, slim legs allow easy positioning in tight and hard-to-reach spaces.
How are the puller arms adjusted on the beam?
Thanks to the quick-release system, you can adjust and set the legs quickly without extra tools.
Is this puller hydraulically operated?
No, this is a mechanical puller. If needed, the standard spindle can be replaced with a hydraulic spindle.
Can the tool be used for internal and external pulling?
Yes, by reversing the legs, the puller can be used as both an external and internal puller.
