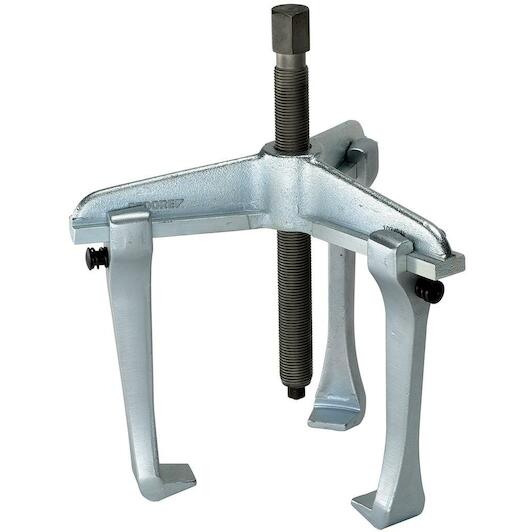

Product description
- Secure grip and centred pulling through even load distribution on 3 hooks
- One-piece forged hooks
- With hook brake - protection against unwanted movement of the hooks
- At the press of a button the hook can be moved on the beam
- Adjusting scale for even setting of the hooks
- Enables centric, force-optimised jaw pull-off even with very high pull-off forces
- Interchangeable hooks for different clamping depths are available as accessories
- Suitable for use with a hydraulic spindle (see table)
Key features according to our expert
-
Max. width: 140 mm
-
Hydraulical: No
-
Max. height: 100 mm
-
Number of hooks: 3
-
Puller type: Universel puller
Specifications / All features
-
Brand:
GEDORE
-
41895920
-
EAN:
4036976121582
-
Supplier number:
GEDORE 1957945
- Max. width
- 140 mm
- Hydraulical
- No
- Max. height
- 100 mm
- Number of hooks
- 3
- Puller type
- Universel puller
- Clamping bracket available
- No
- Quick-release lever available
- No

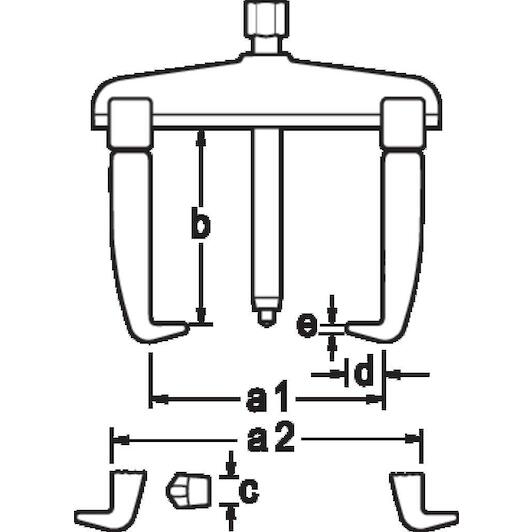

- Hook foot thickness at end e1 [mm]
- 3.0 mm
- Reversible arms available
- Yes
- Hook foot depth usable d2 [mm]
- 15 mm
- Suitable for use with a hydraulic spindle
- Yes
- Screws included
- No
- Hook foot width on the gripping surface c1 [mm]
- 22 mm
- Number of arms
- 3
- Hooks parallel adjustable
- No
- Scale present
- No
- Drive hexagonal width
- 17 mm
- Anti-slip protection on the spindle available
- No
- Towing force (max.) [t]
- 3
- Spindle thread size
- M 14x1.5 x 140
- Hook brake available
- Yes
- Span for internal pull a2 (min.) [mm]
- 70 mm
- Span for internal pulling a2 (max.) [mm]
- 140 mm
- Span when pulled externally (max) [mm].
- 90 mm
- Spindle-slide protection
- No
- Clamping depth usable b [mm]
- 100 mm
