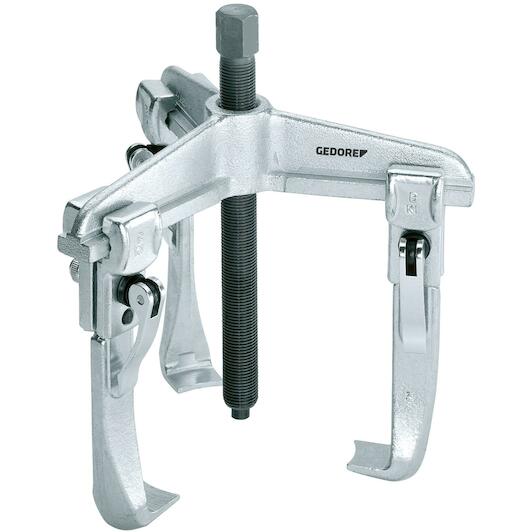

Product description
- Industrial quality, 3 arms for optimum load distribution, tilt-proof and material-friendly
- Strong, ergonomically shaped traverse
- Hook red-hot fall prevention
- Self-supporting hooks with T-profile for dimensionally stable connection
- Patented quick adjustment for easy, safe setting and adjustment - without using tools
- Can be used as an internal trigger by repositioning the hooks
- Nitrocarbonised spindle surface, wear-resistant and corrosion-proof
- Spindle remains smooth and clean - no need for greasing or oiling
- Cross section can be combined with other spindle/hook designs and lengths from the GEDORE puller kit
Key features according to our expert
-
Max. width: 180 mm
-
Hydraulical: No
-
Max. height: 100 mm
-
Number of hooks: 3
-
Puller type: Universel puller
Specifications / All features
-
Brand:
GEDORE
-
01040975
-
EAN:
4036976106411
-
Supplier number:
GEDORE 1225901
- Max. width
- 180 mm
- Hydraulical
- No
- Max. height
- 100 mm
- Number of hooks
- 3
- Puller type
- Universel puller
- Clamping bracket available
- No
- Quick-release lever available
- Yes
- Hook foot thickness at end e1 [mm]
- 3.0 mm
- Reversible arms available
- Yes
- Hook foot depth usable d2 [mm]
- 12 mm
- Suitable for use with a hydraulic spindle
- Yes
- Screws included
- No
- Hook foot width on the gripping surface c1 [mm]
- 22 mm
- Number of arms
- 3
- Hooks parallel adjustable
- No
- Scale present
- No
- Drive hexagonal width
- 17 mm
- Anti-slip protection on the spindle available
- No
- Towing force (max.) [t]
- 3
- Spindle thread size
- M 14x1.5 x 140
- Hook brake available
- No
- Span for internal pull a2 (min.) [mm]
- 80 mm
- Span for internal pulling a2 (max.) [mm]
- 180 mm
- Span when pulled externally (max) [mm].
- 130 mm
- Spindle-slide protection
- No
- Clamping depth usable b [mm]
- 100 mm
